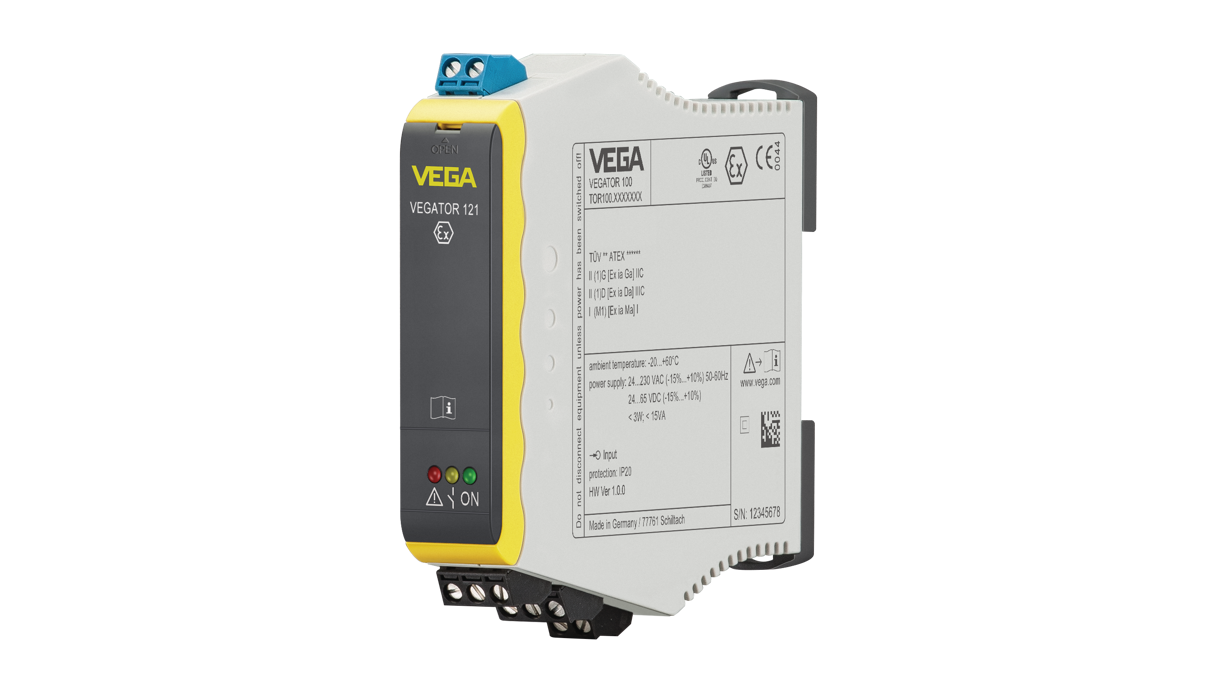

Insatech VEGA Tor 100 Serien 121 Ex V03

Single channel signal processing instrument for two-wire 8/16 mA instruments. With this instrument, you can solve simple control tasks. Optionally a false signal output is available.

Input: 1 x sensor input two-wire 8/16 mA
Output: 1 x relay output (SPDT) / Option: 1 x fail safe output (SPDT)

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

A part of the VEGATOR 100 series

  • For mounting on DIN rail.
  • Standard size from the VEGATOR100 series: 20mm wide
  • SIL and WHG function tests using a test button
  • Short circuit monitoring and wiring break
Insatech VEGA Tor 100 Serien 121 Ex V01
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Protection rating

IP20

Input

1 x sensor input two-wire 8/16 mA

Output
  • 1 x operating relay (SPDT)
  • Optionally 1 x fail safe relay output (SPDT)
Ambient temperature

-20 ... 60 °C

Signal input (specify)

Two-wire 8/16 mA

Signal output (specify)
  • Operating relay
  • Fail safe relay

Specifications & Manuals

  • Manual - VEGATOR 121
    English | pdf
  • Specification sheet - VEGATOR 121
    English | pdf
