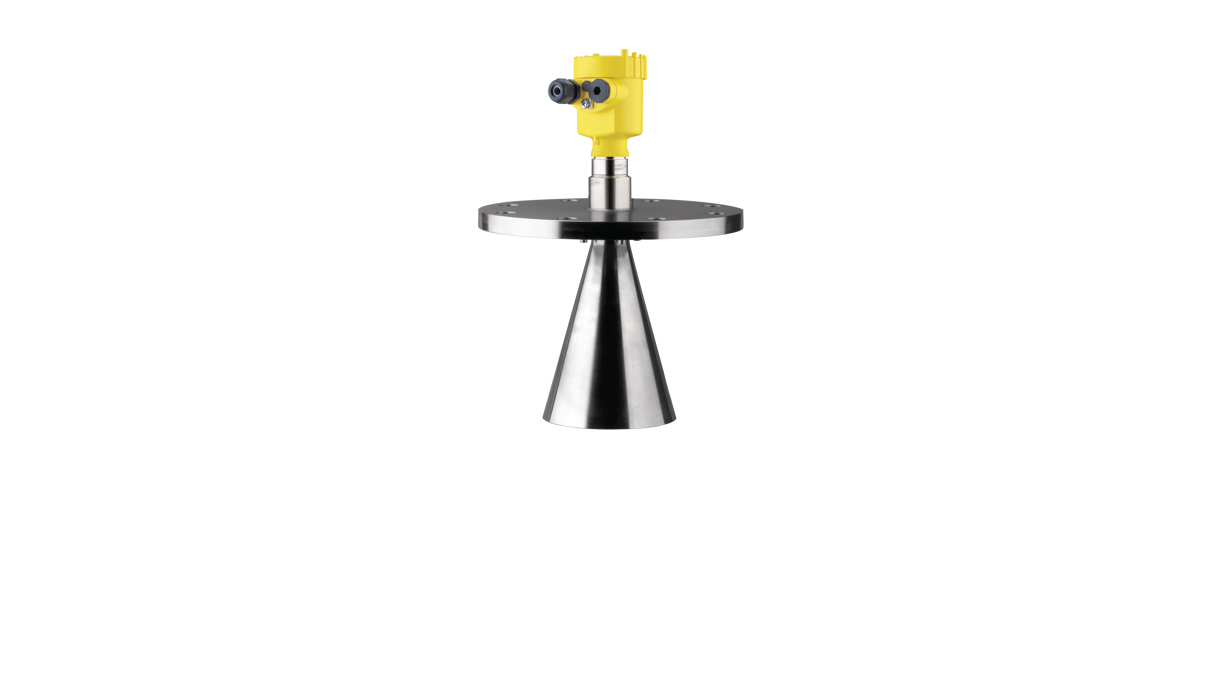

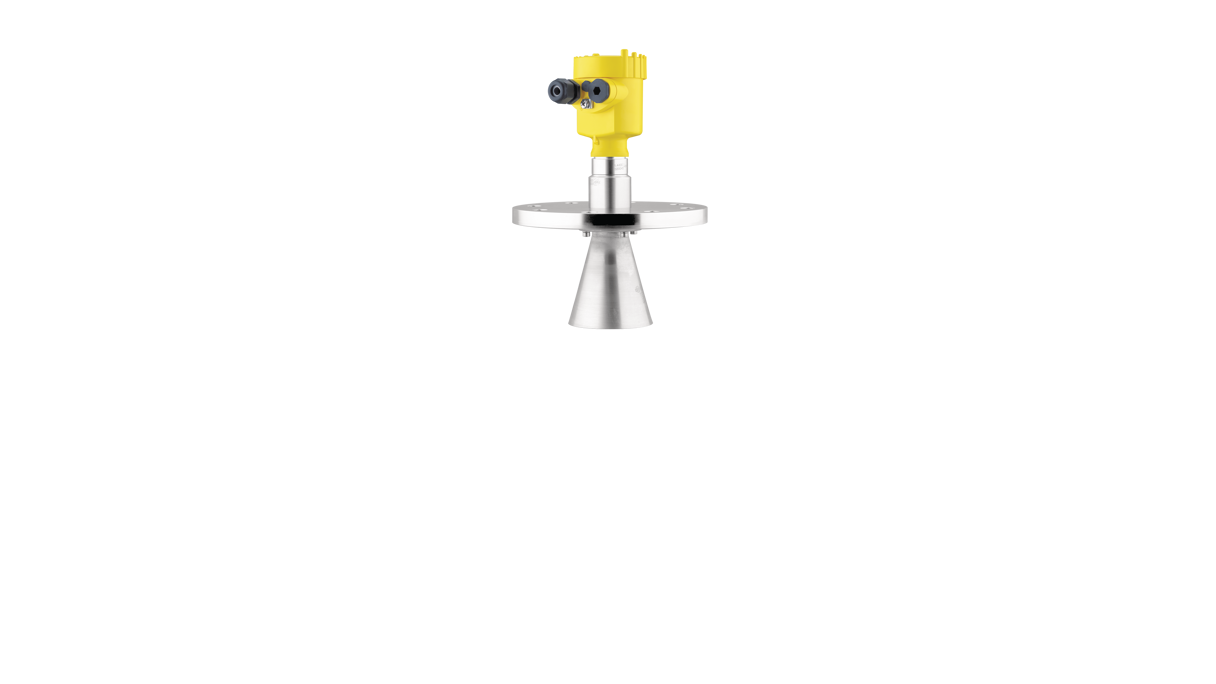

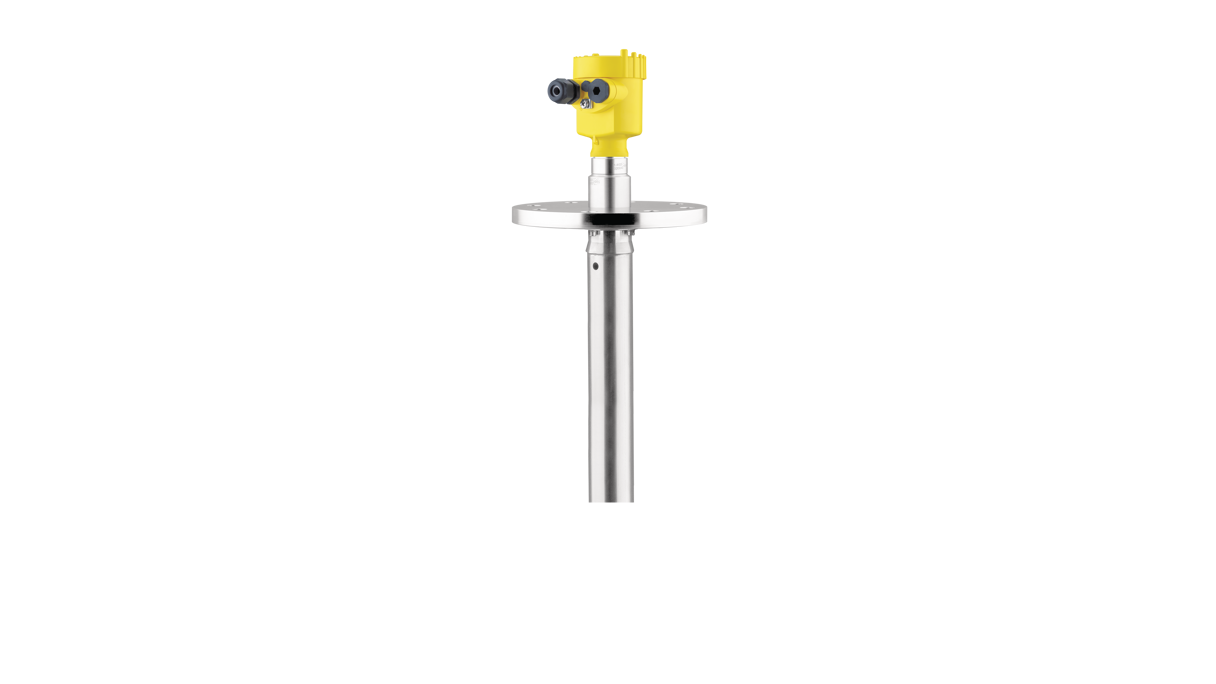

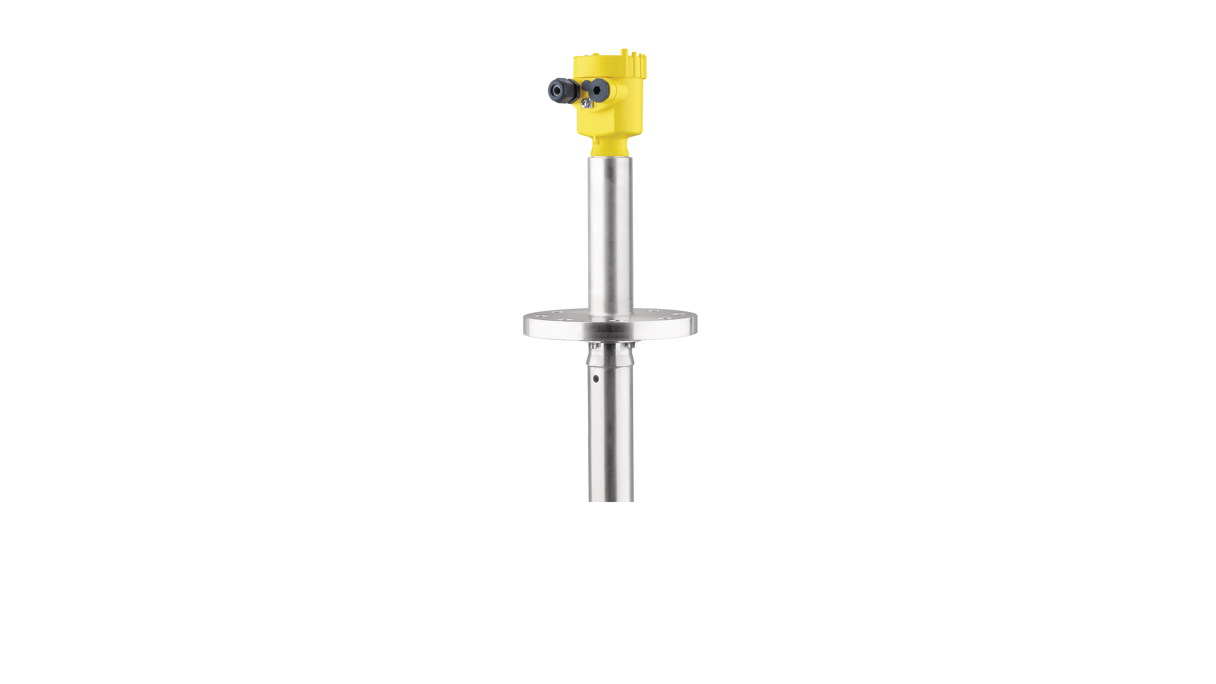

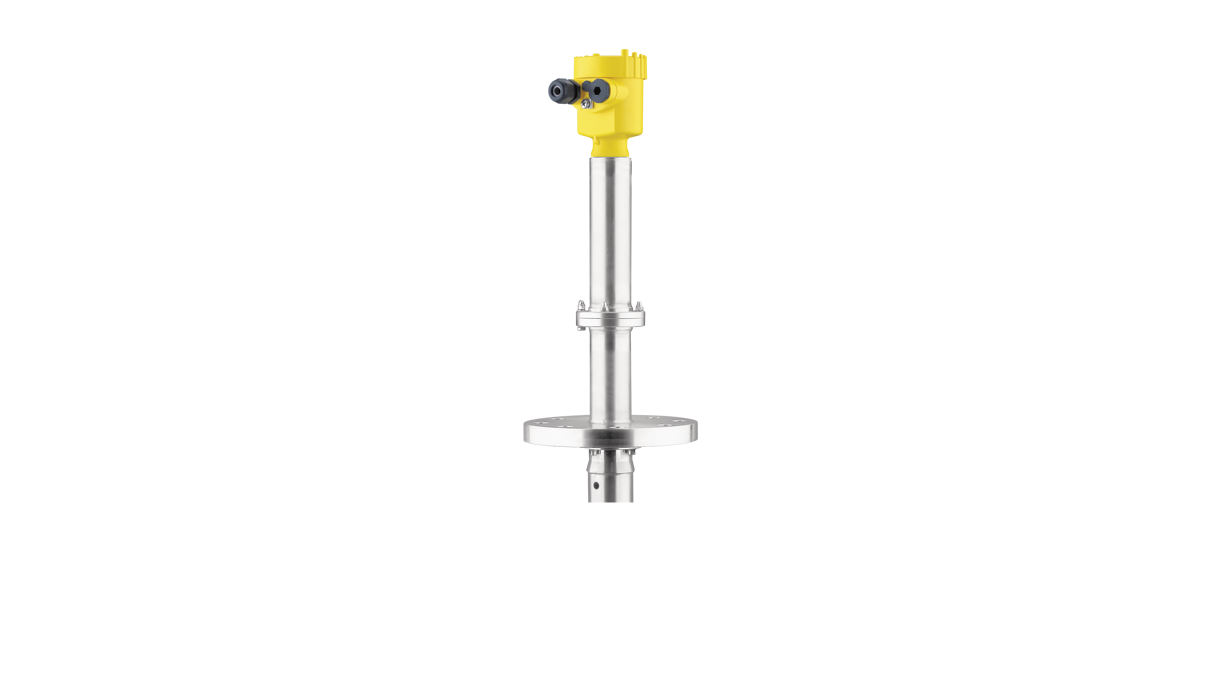

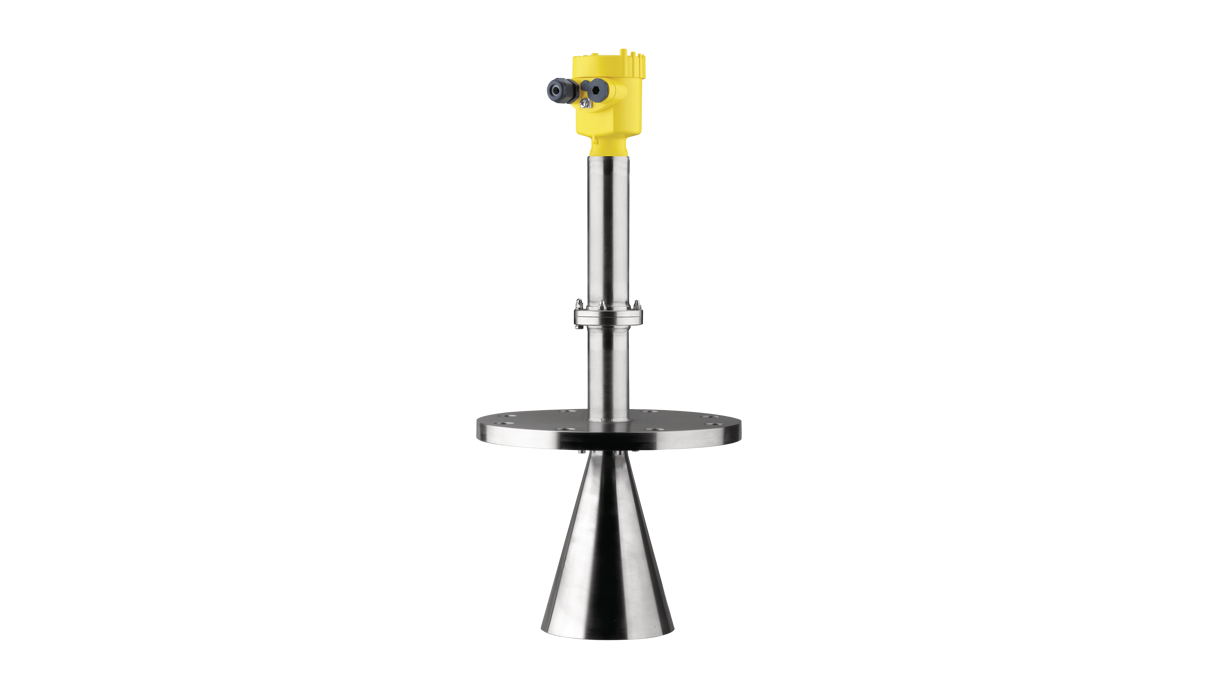

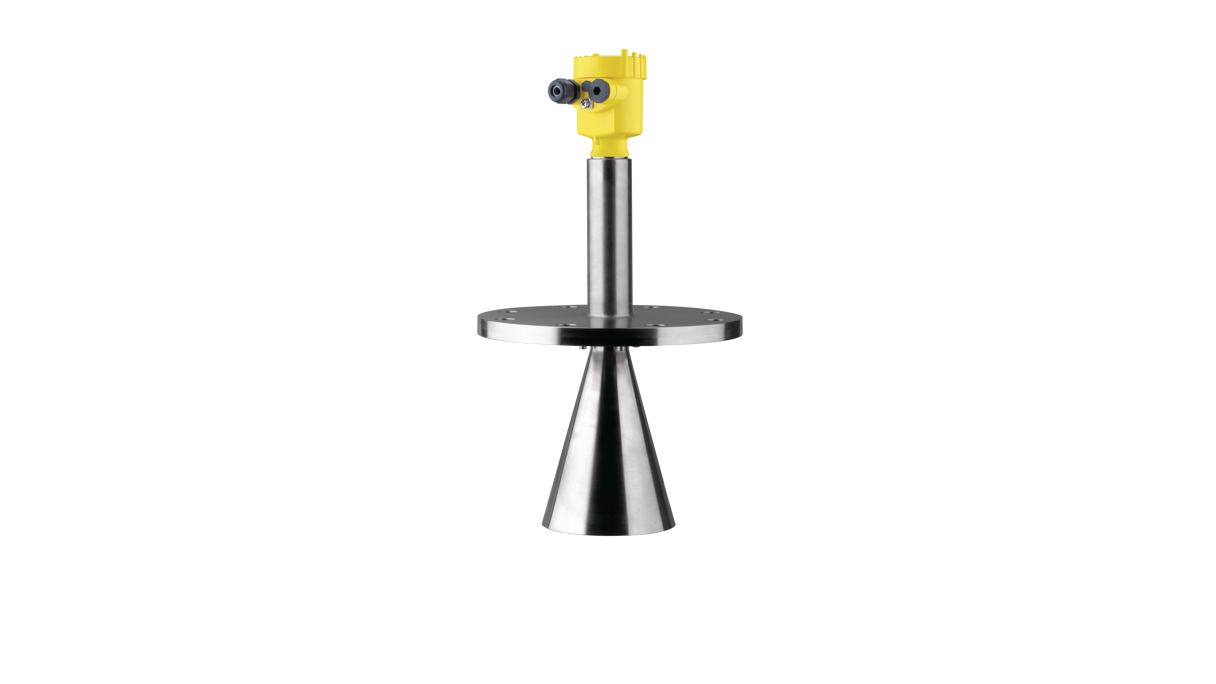

Touch-free radar level measurement with horn antenna or fixed 2 ”standpipe. Suitable for continuous level measurement including in the chemical and petrochemical industries.
Measuring range up to 35 m and process temperature between -60 ... + 400 °C.
For sales or commercial inquiries please contact us at marine@insatech.com.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range - Distance | 35 m |
||||||||||||||||||
| Process temperature | -60 ... 400 °C |
||||||||||||||||||
| Process pressure | -1 ... 160 bar |
||||||||||||||||||
| Accuracy | ± 8 mm |
||||||||||||||||||
| Frequency | 6 GHz |
||||||||||||||||||
| Beam angle | ≥ 14° |
||||||||||||||||||
| Output |
|
||||||||||||||||||
| Protection rating |
|
||||||||||||||||||
| Ambient temperature | -40 ... 80 °C |
||||||||||||||||||
| Materials, wetted parts |
|
|---|---|
| Seal material |
|
| Housing material |
|
| Flange connection |
|
|---|
| Scope |
|
|---|---|
| Explosion protection |
|
| Ship approval |
|
| Overfill protection | WHG |
| SIL qualification | SIL2 |
