Glysacorr G93-94 Chloride Test Kit

With the Glysacorr G93-94 Chloride Test Kit from Insatech you can experience precision at its finest, as it is meticulously crafted to assess chloride levels within your 10% working inhibitor solution. This specialized test is your assurance of maintaining the perfect environment for corrosion protection.

Key Advantages for you:

  • Optimize operating conditions
  • Reduce energy costs
  • Simple step-by-step instructions
  • Replacement reagent pack available
  • No operator training necessary.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Insatech Glysacorr Chloride Tests for Precision

To ensure your engine's well-being, rely on the Insatech Glysacorr chloride test, specially designed to determine chloride levels in your 10% working inhibitor solution. This test guarantees optimum conditions for corrosion protection.

Additionally, our hardness test is available to confirm that the dilution water you use adheres to specifications, assuring top-notch performance.

Invest in the longevity and efficiency of your engine. Choose Glysacorr G93-94 for unbeatable corrosion protection and peace of mind. Don't let corrosion hold you back; sail with confidence!

Glysacorr 1 Insatech 1024 16X9

Contents of the Glysacorr Chloride Test Kit

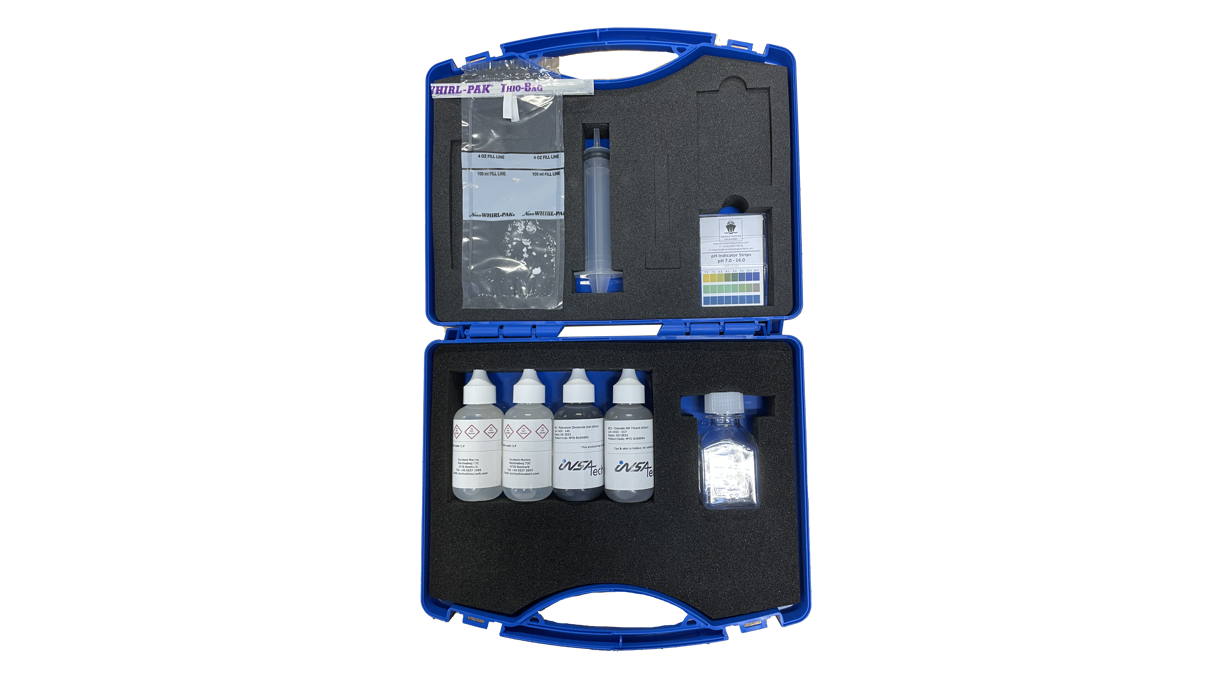

The Glysacorr Chloride Test Kit contains the following:

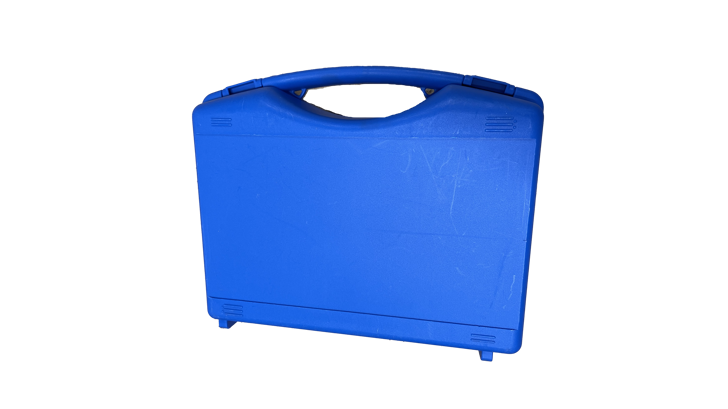

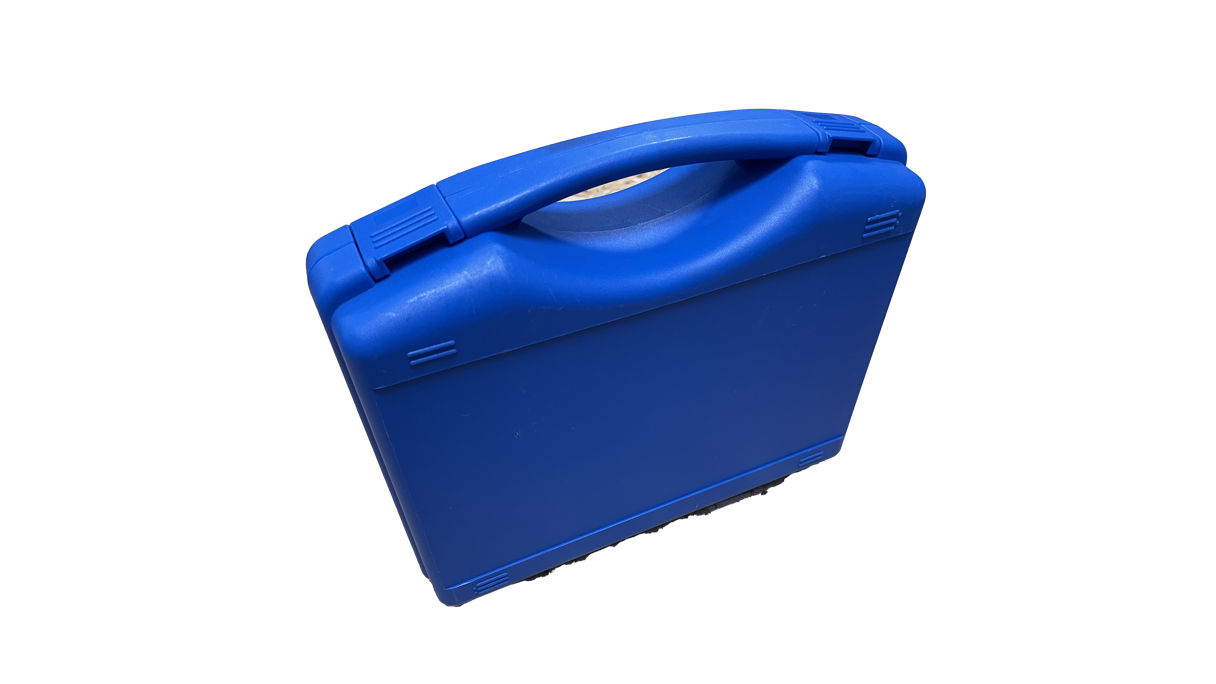

  • 1 x Plastic Case and Foam
  • 2 x Chloride Reagent A (30ml)
  • 1 x Chloride Reagent B (65ml)
  • 1 x GF/C Filter Papers (50)
  • 1 x Filter Holder
  • 1 x Comparator Unit
  • 2 x Comparator Unit 10ml Cell
  • 1 x Glysacorr® Comparator Disc 0 - 100ppm
  • 1 x 10ml Syringe
  • 1 x 2ml Syringe
  • 1 x Instruction Manual

Need our help? Contact us now.

Content of Replacement Reagent Pack for Glysacorr G93-94

The Replacement Reagent Pack for the Chloride Test Kit contains the following:

  • 2 x Chloride Reagent A (30ml)
  • 1 x Chloride Reagent B (65ml)
  • 1 x GF/C Filter Papers (50)
  • 2 x Comparator Unit 10ml Cell
  • 1 x 10ml Syringe
  • 1 x 2ml Syringe

Exactly what you need? Contact us here.

Test Kit 2 Insatech 1024 16X9

You are Protecting Your Engine with Glysacorr G93-94

Revitalize your engine's lifespan and performance with Glysacorr G93-94, which is the ultimate inhibitor concentrate engineered to safeguard your vehicles and equipment. Whether you're operating trucks, locomotives, ships, or other combustion engines, Glysacorr G93-94 is your trusted partner in combating cavitation and corrosion.

Your Benefits:

  • Powerful Protection: At a 10% volume concentration, Glysacorr® G93-94 offers robust protection against cavitation and corrosion for all engine metals and alloys.
  • Chloride Control: Ensures optimal performance by keeping chloride levels in your cooling system below 100ppm (mg/l).
  • Water Compatibility: Glysacorr® G93-94 is compatible with tap, demineralized, or deionized water, allowing flexibility in your coolant mixture.
  • Monitoring Made Easy: Regularly monitor chloride levels to prevent sea water contamination during operation.

Chloride and Hardness Guidelines

Tap Water: If using tap water, it's crucial that chloride levels are below the recommended maximum concentration of 100ppm (mg/l) and hardness levels remain under 360ppm (mg/l).

Contact us to get an offer her

How to Use the Glusacorr Chloride Test Kit

By following these 12 steps you can measure the chloride ions in the Glysacorr G93-94 which is in the treated cooling water.

  1. Take a sample of cooling water and let it cool down to room temperature.

  2. Open a filter holder.

  3. Use tweezers to place a GF/C filter in the filter holder. Re-seal the filter holder.

  4. Fill the 2ml syringe to the 1.5ml mark with the sample. Connect the syringe to the filter holder assembly and discharge the sample to waste, down to the 1ml mark. Discard the 25mm filter circle after use.

  5. Filtrate the remaining sample into the test tube and add 4.5ml of deionised water. Make up to the 10ml mark with IPA Reagent. Cap and invert tube several times to mix.

  6. Add 15 drops of Chloride Reagent B to the test tube. Cap and invert several times to mix.

  7. Pour this sample into two comparator cells. Split into two equal portions. Approximately 5ml into each.

  8. Place one cell into the left hand side of the comparator. This is the BLANK CELL.

  9. To the other cell, add 7 drops of Chloride Reagent A. Cap the cell and invert to mix. Place this cell into the right hand side of the comparator. This is the TEST CELL.

  10.  Wait 5 minutes for the colour to develop.

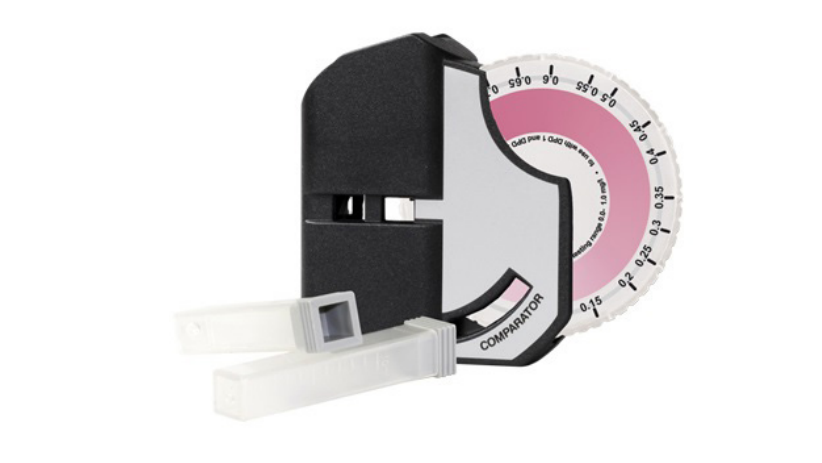

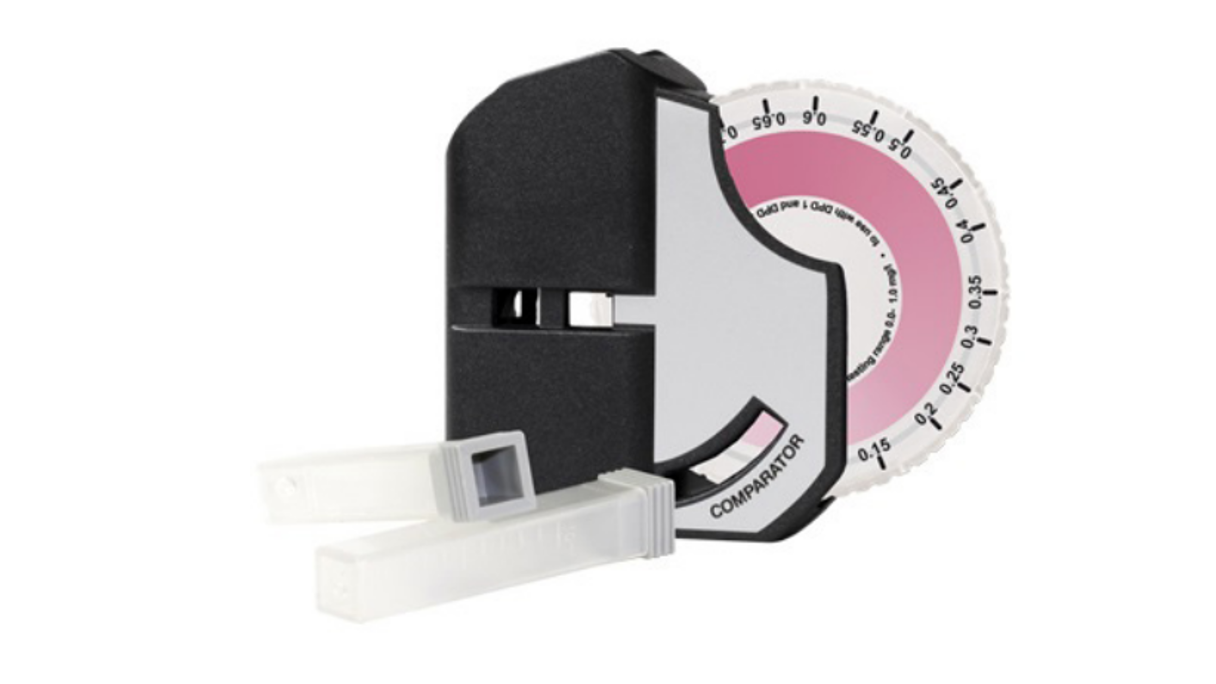

  11.  Place the Glysacorr disc into the comparator (see the picture in the top). Hold the comparator towards a source of natural daylight and rotate the disc until a colour match is obtained. Read the corresponding value on the right aperture of the comparator.

  12.  The result is shown as ppm (mg/l) Cl - (Chloride).
Need more information? Contact us here.
Test Kit 1 Insatech 1024 16X9
Test Kit 3 Insatech 1024 16X9
Glysacorr Insatech 1024 16X9
Test Kit 1 Insatech 1024 16X9
Test Kit 3 Insatech 1024 16X9
Glysacorr Insatech 1024 16X9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Product specifications and manuals

  • Datasheet - Glysacorr G93-94 Chloride Test Kit - Insatech
    English | pdf
  • Instruction Manual - Glysacorr G93-94 Chloride Test Kit - Insatech
    English | pdf
