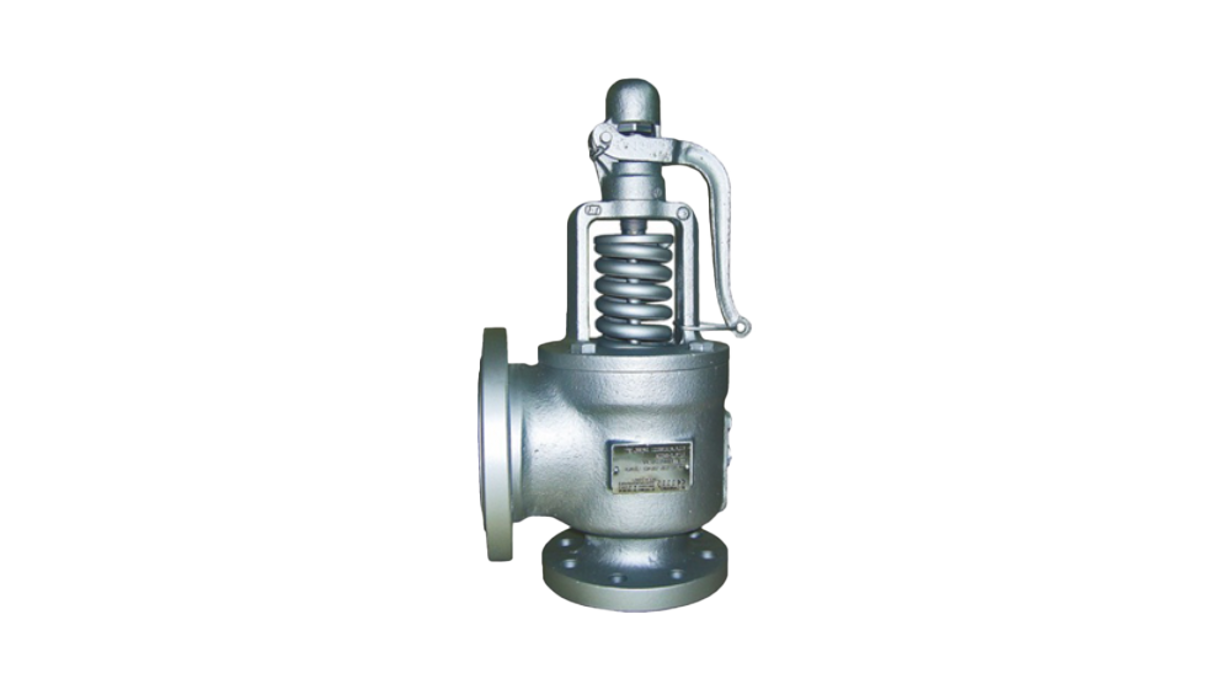

CSV 55 - 88 Safety Valves

The CSV Series safety valves from Carraro are designed for reliable pressure relief in steam and non-hazardous gas applications. Type CSV 55 is crafted from cast iron, while Type CSV 88 is made from cast steel, with both featuring an open spring housing. These valves can be supplied with a cap, hood, or handle for versatile installation options.

Benefits for you:

Durable construction (cast iron and cast steel)
Versatile options (cap, hood, or handle)
Suitable for non-hazardous applications.

For sales or commercial inquiries please contact us at marine@insatech.com.

High-Performance CSV Series Safety Valves

The CSV Series safety valves are designed for high-quality performance and precision, making them ideal for steam boilers, pressure vessels, and both industrial and marine applications.

These valves operate with minimal overpressure, allowing precise control even when multiple valves are installed on the same boiler with different set pressures. By staying within the 10% overpressure limit required by regulations, the CSV valves ensure that only the necessary valves open during operation, optimizing system efficiency.

They are also approved by the Italian standard institute ISPESL, guaranteeing high safety and performance standards.

Key Features of CSV 55 - 88 Safety Valves

The CSV 55 - 88 safety valves from the CSV series has several benefits. See some of them listed below:

Durable Materials: CSV 55 made from cast iron and CSV 88 made from cast steel
Open Spring Housing: Provides reliable performance for pressure relief
Versatile Applications: Suitable for steam and non-hazardous gas applications
Flexible Installation Options: Can be supplied with a cap, hood, or handle
Precision Control: Operates with minimal overpressure for efficient pressure management
Minimal Blowdown: Ensures working pressure stays close to the set pressure.

Exactly what you need? Contact us now!

Solutions for Diverse Industries

The CS safety valves play a critical role in various sectors ensuring precise flow and pressure management in a range of applications such as:

Air & process gases
Liquids
Steam.

The various industries which the valves are suitable includes, but is not excluded to:

Marine
Oil & gas
General industry
Power.

Need more information? Contact us here

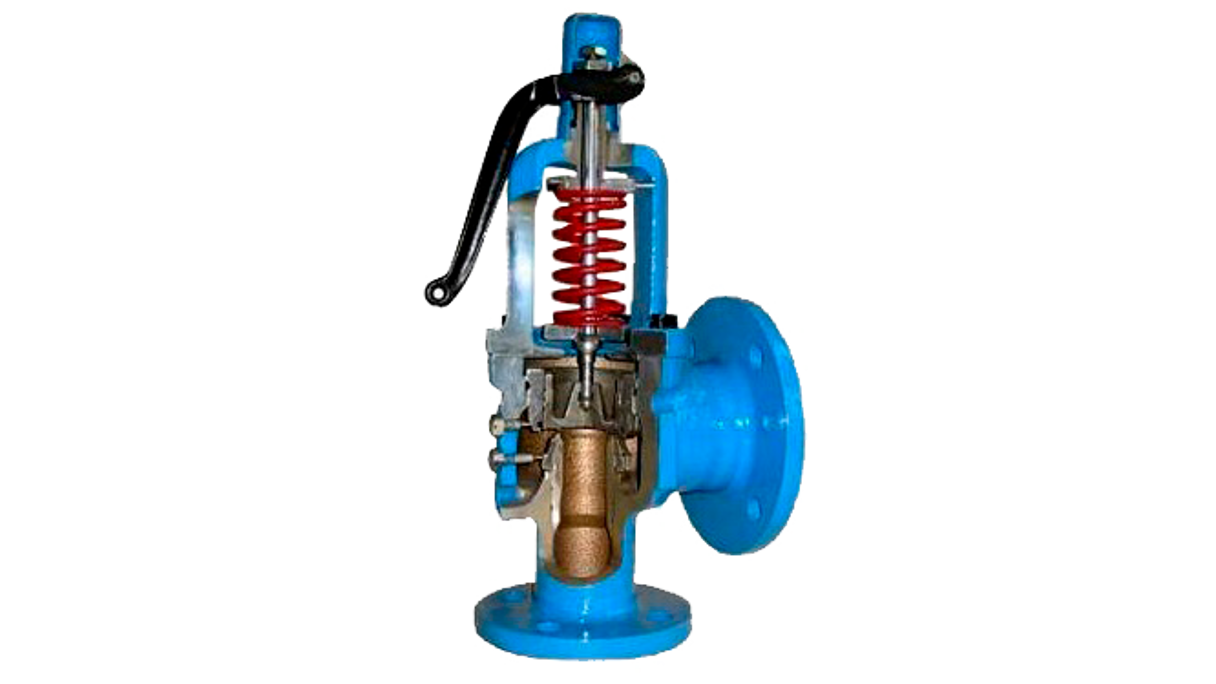

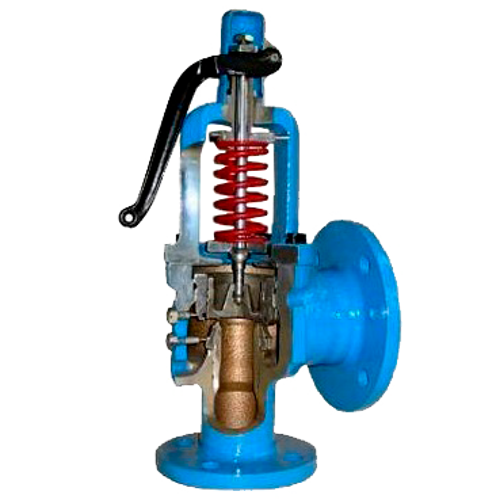

Efficient Pressure Control for Various Fluids

The CSV valves excel in managing both compressible fluids and liquids.

For compressible fluids, such as steam and gas, the valves open quickly when pressure exceeds the set point, facilitating rapid discharge with minimal pressure increase—a feature known as "pop action." This ensures efficient pressure management.

For liquids, the valves operate more gradually, with larger overpressure and blowdown values, allowing for smooth and effective pressure regulation. Their minimal blowdown also helps keep the working pressure close to the set pressure, maintaining system efficiency and quickly restoring normal conditions.

Parts for the CSV 55 Safety Valve

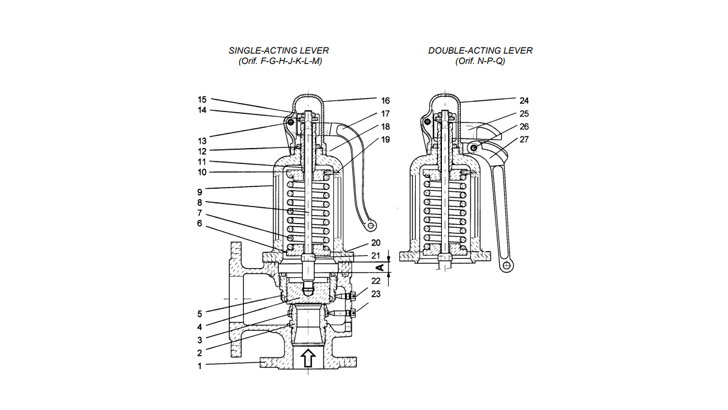

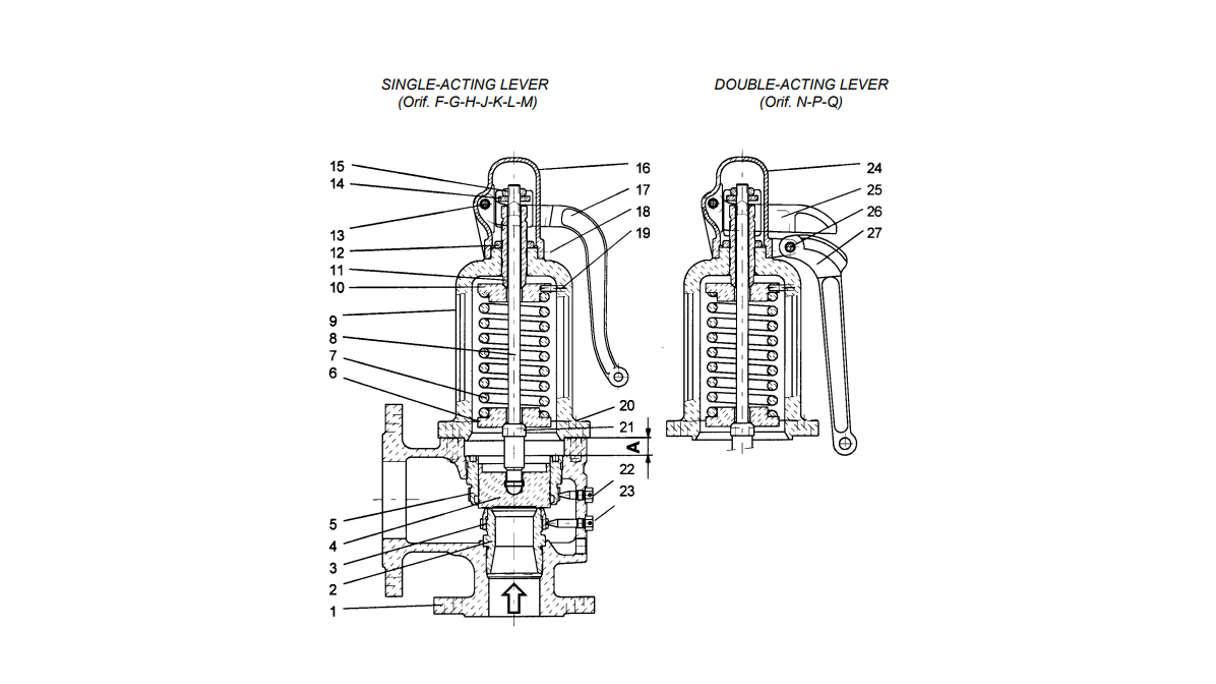

The CS valves series has several parts, we have listed them for the CSV 55 below (and see the drawing):

1 – Valve body
2 – Seat
*3 – Lower adjusting ring
*4 – Disc
5 – Upper adjusting ring
6 – Lower washer
7 – Spring
8 – Rod
9 – Frame
10 – Upper washer
11 – Calibration screw
12 – Calibration screw nut
13 – Pin for lever
14 – Nut for rod
15 – Lock nut
16 – Cap
17 – Lever
18 – Cap screw
19 – Pin
20 – Screw
*21 – Collar
*22 – Upper adjusting ring screw
*23 – Lower adjusting ring screw
24 – Cap
25 – Intermediate lever
26 – Pin for lever
27 – Lever

(*) Is the recommended spare parts.

Parts for the CSV 88 Safety Valve

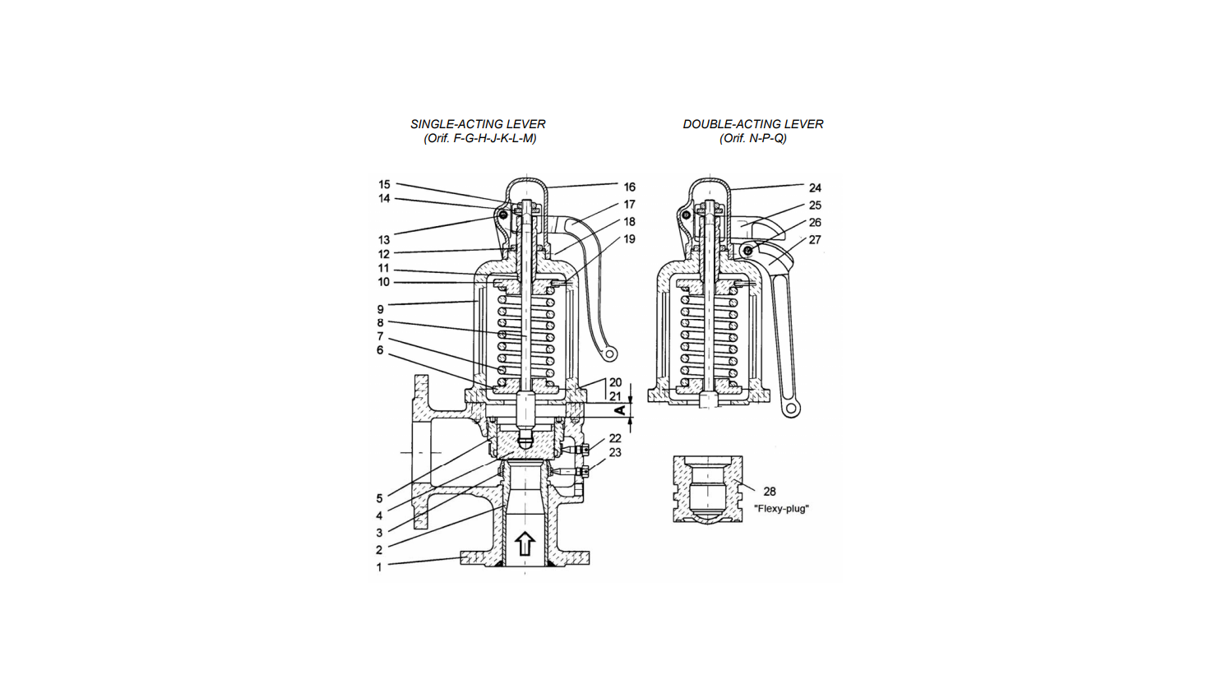

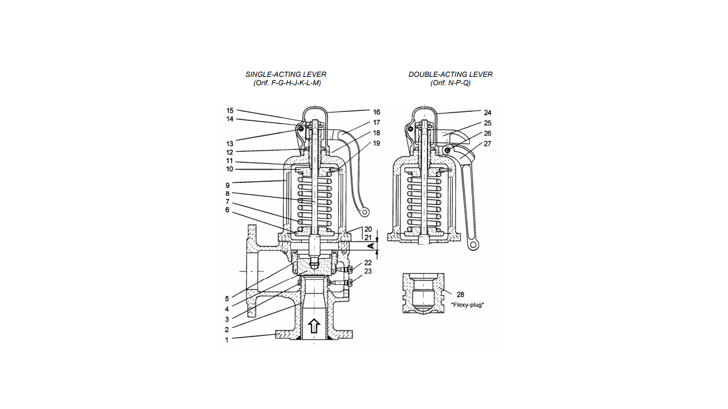

The CS valves series has several parts, we have listed them for the CSV 88 below (and see the drawing):

1 – Valve body
2 – Seat
*3 – Lower adjusting ring
*4 – Disc
5 – Upper adjusting ring
6 – Lower washer
7 – Spring
*8 – Rod screw
9 – Frame
10 – Upper washer
11 – Calibration screw
12 – Calibration screw nut
13 – Pin for lever
14 – Nut for rod
15 – Lock nut
16 – Cap
17 – Lever
18 – Cap
19 – Pin
20 – Stud
21 – Nut
*22 – Upper adjusting ring screw
*23 – Lower adjusting ring screw
24 – Cap
25 – Intermediate lever
26 – Pin for lever
27 – Lever
28 – “Flexy-plug”

(*) Is the recommended spare parts.

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

Technical Specifications
Function	Proportional lift
Size	Inlet DN 40 - DN 50 Outlet DN 50 - DN 80
Connection	Flanges (ANSI 150 - ANSI 300)
Pressure step	Max ANSI 900 (steel, PN 16 - 160)
Materials	Valve body: Cast iron and cast steel
Trim material	Stainless steel
Set pressure	From 2.5 to 18 bar(g)
Inlet pressure	Max. 18 bar(g)
Temperature	Min: -10 °C Max: 200 °C

Product specifications and manuals

Brochure - CSV and CS Series Safety Valves - Carraro
English | pdf

Download
