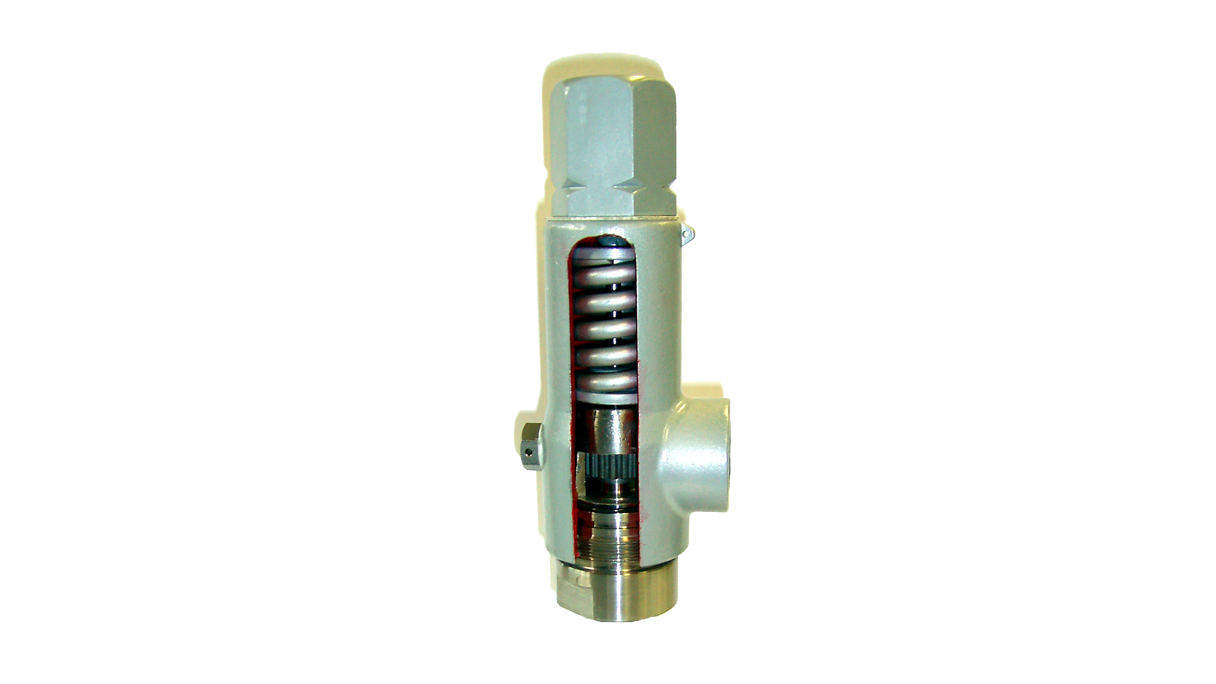

CS 71 Safety Valve
The CS 71 from Carraro is a safety valve for pressure equalization for steam, gas and liquids. This type of safety valve can only be supplied with cap or hood.
The CS 71 benefits you with:
For sales or commercial inquiries please contact us at marine@insatech.com.

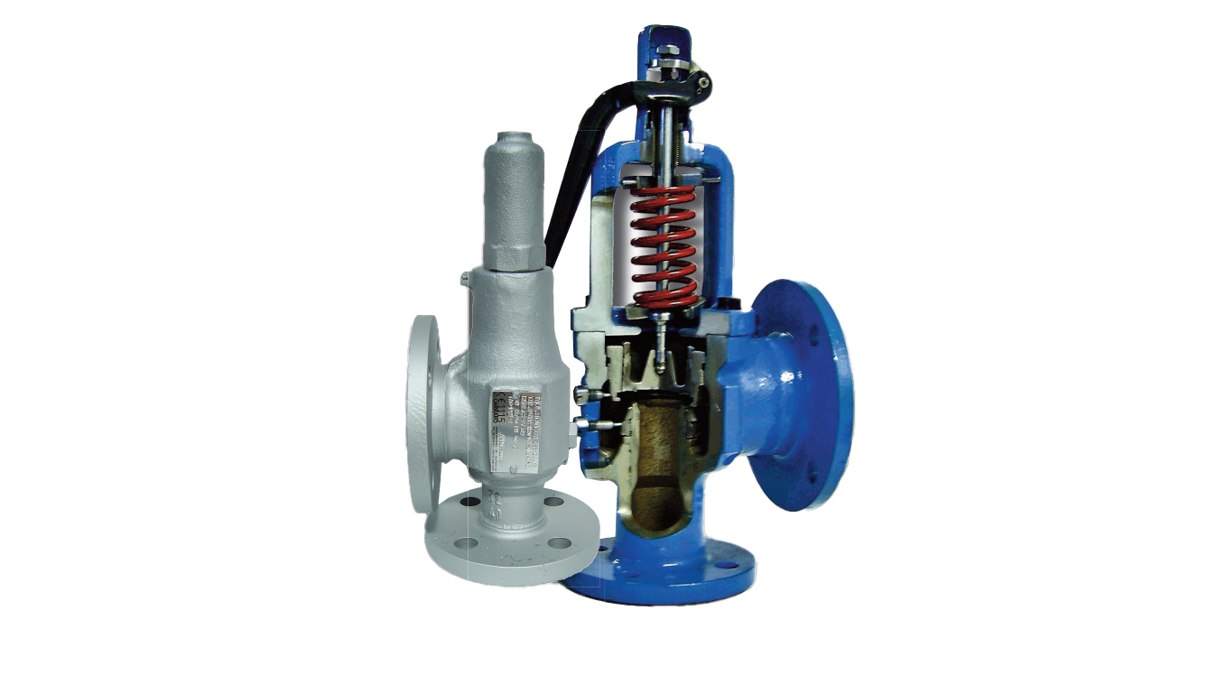

The CS safety valves are designed for precision and reliability, ensuring a high level of safety for steam boilers, pressure vessels, and industrial or marine installations.
A key advantage is their ability to operate with minimal overpressure, allowing for multiple valves on the same system to have different set pressures while remaining within the 10% overpressure limit permitted by boiler regulations. This ensures that only the necessary valves open during operation, enhancing efficiency.
The CS 71 safety valve from the CS series has several benefits. See some of them listed below:
The CS safety valves play a critical role in various sectors ensuring precise flow and pressure management in a range of applications such as:
The various industries which the valves are suitable includes, but is not excluded to:
The small blowdown of CS safety valves allows the working pressure to stay close to the set pressure, minimizing fluid discharge while maintaining stable operating conditions.
This design helps to re-establish normal working conditions quickly, reducing waste and improving system performance.
The CS series is approved by the Italian standards institute ISPESL, further guaranteeing their quality and safety.

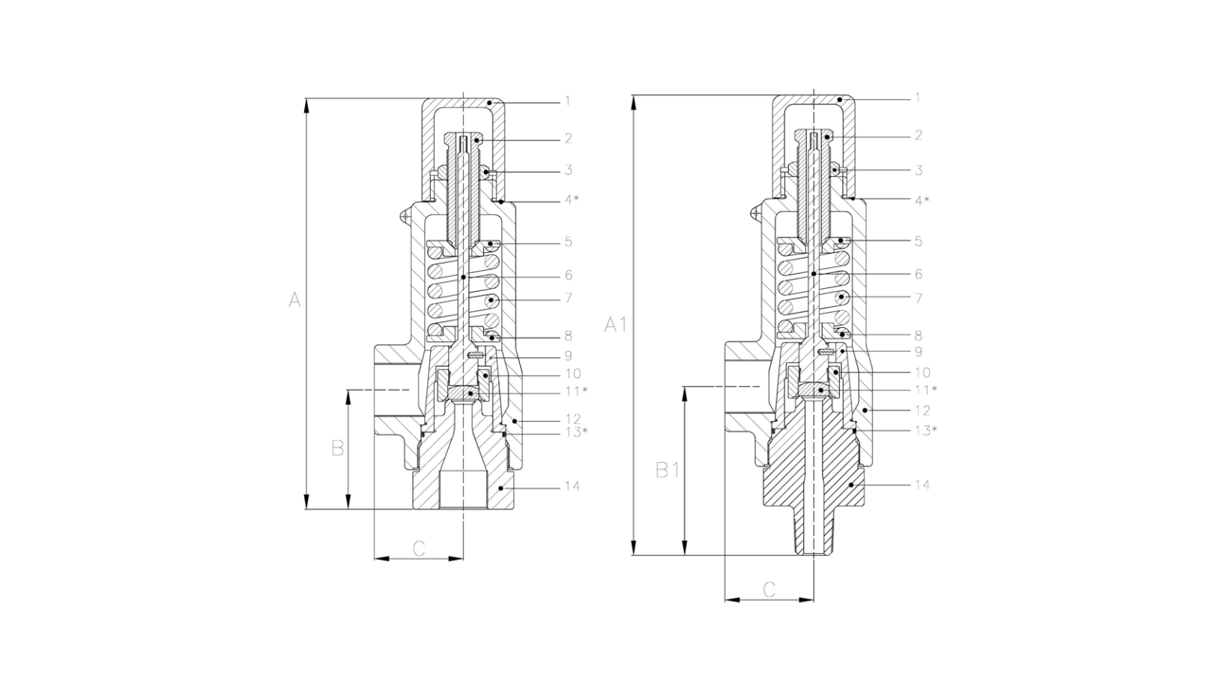

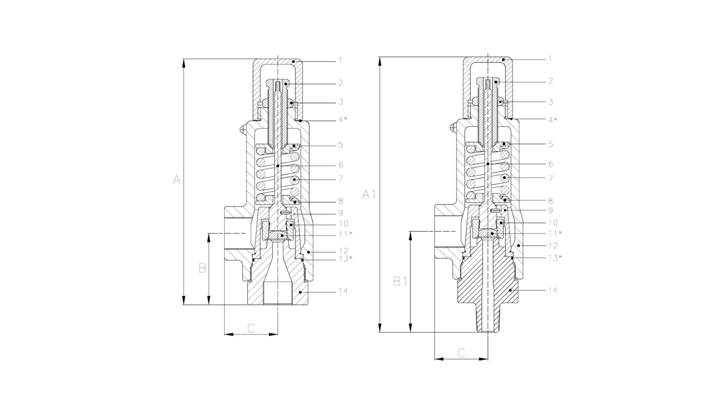

The CS valves series has several parts, we have listed them for the CS 71 below (and see the drawing):
1 - Cap
2 - Adjusting Screw
3 - Nut
4 - Gasket (*)
5 - Upper Washer
6 - Stem
7 - Spring
8 - Lower Washer
9 - Guide
10 - Adjusting ring
11 - Disc (*)
12 - Yoke
13 - O-ring (*)
14 - Body - Nozzle
(*) Is the recommended spare parts.
The CS Series safety valves regulate pressure for both compressible fluids and liquids.
For compressible fluids, the valve opens quickly when pressure exceeds the set point, with fluid discharging through the nozzle at critical velocity. This "pop action" allows for rapid pressure release with minimal overpressure. Once the pressure drops below the set point, the valve closes swiftly.
For liquids, the valve operates more gradually, with larger overpressure and blowdown values, ensuring smooth pressure control throughout the process.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Function | On / off (POP action) |
||||||||||||||||||
| Size |
|
||||||||||||||||||
| Connection |
|
||||||||||||||||||
| Pressure step | ANSI 2500 |
||||||||||||||||||
| Materials | Valve body: Steel or stainless steel |
||||||||||||||||||
| Trim material | Stainless steel (standard) |
||||||||||||||||||
| Set pressure | From 1 to 400 bar(g) |
||||||||||||||||||
| Inlet pressure | Depending on the orifice |
||||||||||||||||||
| Temperature |
|
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
