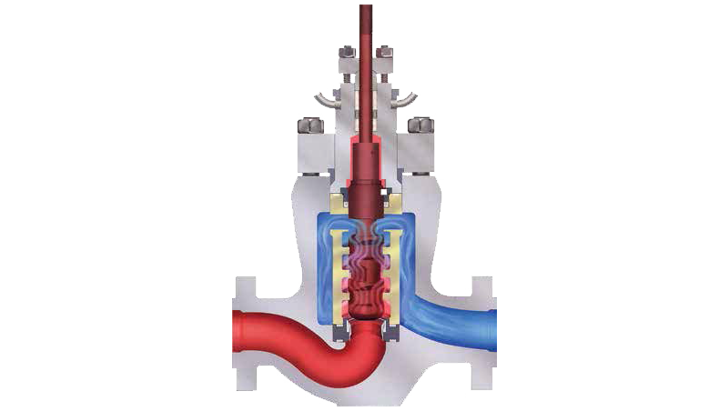

The Masoneilan 78400/18400 Series LincolnLog valve offers longterm reliability in high-pressure, liquid-letdown, anti-cavitation control valve applications. Robust design with built-in stability to avoid vibrations / shaking, which ensures long life and reduces maintenance costs.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LincolnLog valve design has more decades of proven field performance as the industry’s premier highpressure, liquid-letdown solution. LincolnLog is a reliable and robust anti-cavitation control valve package with enhanced multi-stage and axial flow-trim technology incorporated into a rugged valve design. Over the years, LincolnLog has successfully met the challenges of thousands of severe-service applications around the globe.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 1 "to 12" (DN 25 to DN 300) |
||||||||||||||||||
| Pressure steps | ANSI class 600 to 4500 (PN 100 to 400) |
||||||||||||||||||
| Connection | Flange, welding or threaded ends |
||||||||||||||||||
| Construction | Angular or parallel |
||||||||||||||||||
| Material housing | Steel, stainless steel and other materials on request |
||||||||||||||||||
| Sealing | Metallic or softening |
||||||||||||||||||
| Actuator | Spring membrane, cylinder (single or double acting) and electric. |
||||||||||||||||||
| Positions |
|
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
