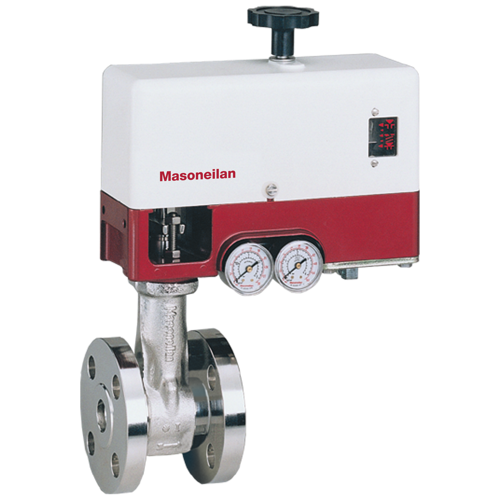

VariPak 28000 is a compact control valve from Masoneilan designed for applications with a low flow. It has a wide range of options and capabilities to meet your desired requirements and needs. Furthermore, it is an economical solution, which provides flexibility, precise regulation and long life.
For sales or commercial inquiries please contact us at marine@insatech.com.
The Varipak 28000 series, is a flexible microflow valve that can be used for a wide range of applications in the industry, including:
Varipak is a complete solution, which consists of valve, actuator and positions, built together in a compact unit.
Varipak is specially designed for tasks where precise regulation of small flow rates, pressure and temperature is required. With Varipak you get perfect control in the process and a flexible solution with a lot of options to choose different trim size and materials. The flexibility ensures that you always can optimize Varipak for the specific task and thus achieve the best result and yield.

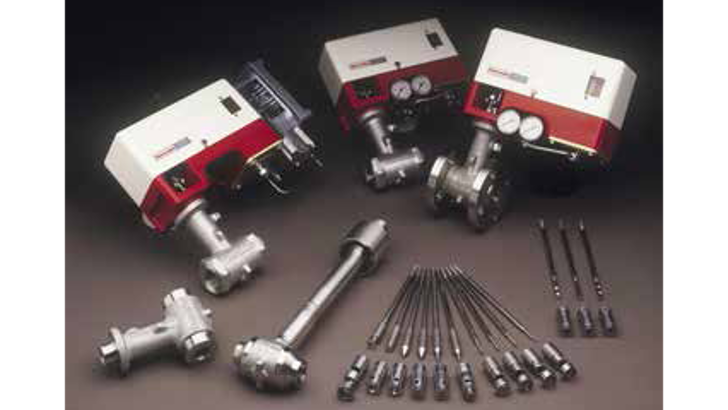

One size hardly ever fits all applications. That’s why the Varipak valve offers the flexibility of 10 standard contoured trim designs based on the same body platform. These multiple trim sets help reduce the effects of valve oversizing and improve control loop performance, resulting in better process efficiency.
With the valve’s adjustable Cv option, you can easily accommodate changing operating conditions. The Cv
value can be increased or decreased simply by setting a knob within the actuator assembly.
Varipak is available with an effective high-pressure, liquid let-down, anti-cavitation trim solution – the Varilog™ trim. This unique design includes a multi-stage axial flow plug and liner, which provides dirt-tolerant operation and high wear resistance.
The valve has a linear flow characteristic with a turndown of up to 500: 1 on the CV value, which ensures that you can control the process very precisely over the entire flow area.
Varipak control valve’s simple, top-entry, body construction includes an integrated body and bonnet design, which allows for easy access and removal of the quick change trim. The integral liner and seat ring construction reduces the number of components, simplifying assembly and disassembly. In addition, the modular actuator design further enhances the maintainability of this unique valve assembly.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size |
|
||||||||||||||||||
| Actuator | Spring against diaphragm, with handwheel |
||||||||||||||||||
| Accessories |
|
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
