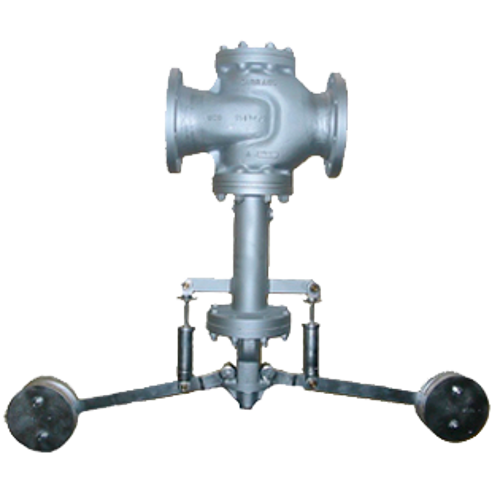

M51 Control Valve
The M51 series from Carraro is mechanically directly controlled pressure relief / pressure reduction valve, which is available with single or double seat.
This series gives you:
For sales or commercial inquiries please contact us at marine@insatech.com.
The M51 series from Carraro offers highly precise pressure reducing and relief valves, utilizing weight and lever mechanisms instead of traditional springs. This design enhances accuracy by eliminating the spring constant, making them ideal for critical applications.
The M51 series features single or double seat configurations and has been ARAMCO-approved since 2015.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Function | Reduction / relief / back pressure |
||||||||||||||||||
| Size | From 1/2 "to 16" |
||||||||||||||||||
| Connection | Flanges (ANSI or NP) |
||||||||||||||||||
| Seat | Single / double |
||||||||||||||||||
| Pressue step | Max ANSI 600 |
||||||||||||||||||
| CV | From 4.7 to 560 |
||||||||||||||||||
| Valve body | Stainless steel and other exotic materials |
||||||||||||||||||
| Trim | Stainless steel (standard) and other exotic materials |
||||||||||||||||||
| Membrane | PTFE, stainless steel |
||||||||||||||||||
| Input pressure | 103.4 bar(g) (Class 600) |
||||||||||||||||||
| Pressure control range | From 0.015 to 20 bar(g) |
||||||||||||||||||
| Temperature |
|
||||||||||||||||||
