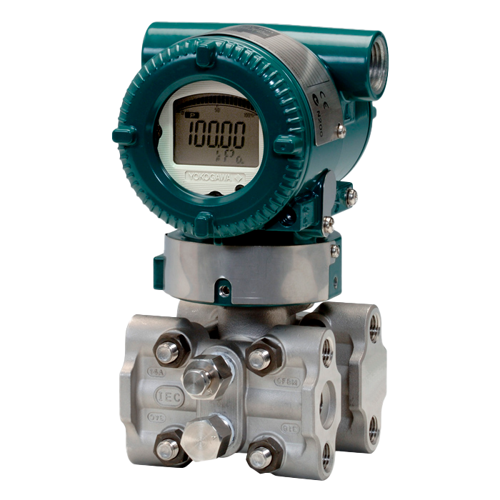

Yokogawa EJA430E

Standard pressure transmitter with digital silicon resonance sensor which ensures high accuracy, great turndown and excellent long-term stability.

Measuring ranges from 50 mbar to 160 bar distributed over 3 different measuring cells
Max. pressure up to 25 bar
Accuracy ± 0.055% of span

For sales or commercial inquiries please contact us at marine@insatech.com.

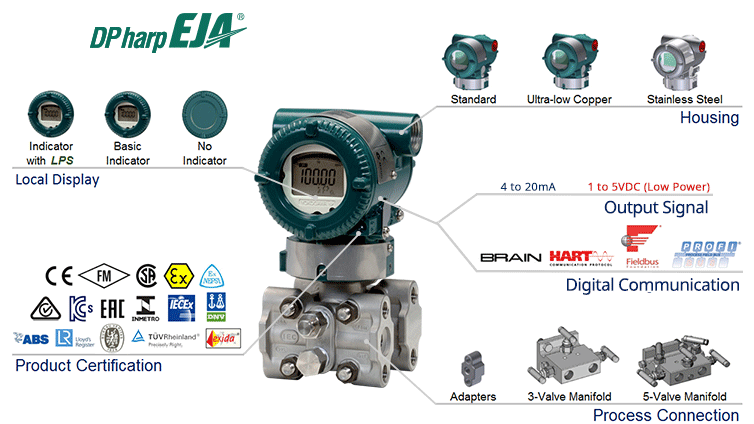

Yokogawa Standard-performance Dpharp EJA430E

Used for applications with pressure measurement in relation to atmospheric pressure.

Insatech can offer a wide range of manifolds as well as stakes.

Martin Søvind Jensen

Astrid Mihut

Technical Specifications
Type	Relative pressure transmitter
Measuring range	Measuring ranges from 50 mbar to 160 bar distributed over 3 different measuring cells
Output	Output signal two-conductor 4 - 20 mA DC with digital communication
Pressure	Max pressure up to 25 bar
Ambient temperature	Limits: −40 to 85 °C −30 to 80 °C with LCD display
Accuracy	Accuracy ± 0.055% of span
Power Supply Effects	(Output signal code D and J) ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
Communication	BRAIN or HART protocol overlaid in 4 - 20 mA signal Opportunity for the Fieldbus Foundation and Profibus PA
Certifications	Marine: LR, ABS, BV and DNV-GL ATEX, FM, CA, IECEx TUV SIL2 / SIL3
