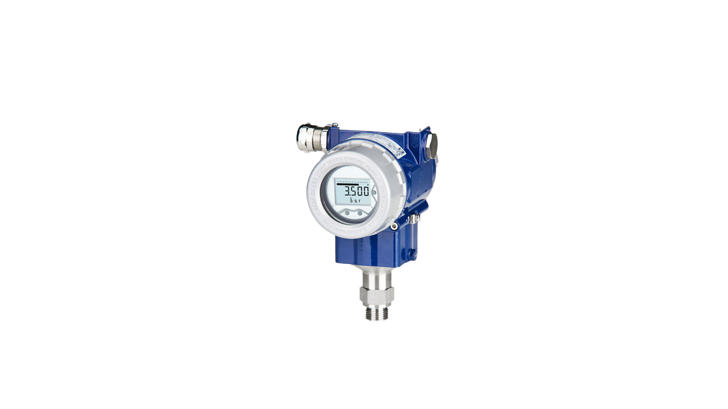

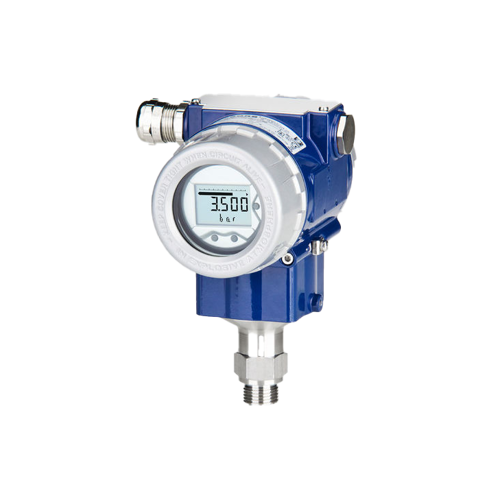

XMP i
The XMP i from BD Sensors is an analog pressure transmitter specifically designed for the process industry. This is a stainless-steel sensor, which measures vacuum and gauge, as well as absolute pressure ranges of the following up to 600 bar;
For sales or commercial inquiries please contact us at marine@insatech.com.
The XMP i is a precise pressure transmitter that has the following features that benefits you:
Furthermore, the transmitter, by default, is equipped with HART®-communication as a standard. However, the customer can, as mentioned above, select a two-chamber aluminum die cast case or a stainless field housing.
The XMP i from BD Sensors is applicable in various settings including:
If you have a certain need the XMP i pressure transmitter is available with optional features like:
Moreover, different process connections such as threads and flanges with an internal or flush welded diaphragm are available and can be combined with a cooling element for media temperatures up to 300°C.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 511: gauge 512: absolute (Note 1) |
||||||||||||||||||
| Input [bar] | 4000: 0 ... 0.4 (Note 1) |
||||||||||||||||||
| Design | Aluminium die cast case
Stainless steel field housing
|
||||||||||||||||||
| Output | I: intrinsic safety (ia), 4 … 20 mA / 2-wire, and with HART®-communication G: flameproof equipment (d), 4 … 20 mA / 2-wire, and with HART®-communication (Note 2) IS: (SIL2) intrinsic safety (ia), 4 … 20 mA / 2-wire, and with HART®-communication GS: (SIL2) flameproof equipment (d), 4 … 20 mA / 2-wire, and with HART®-communication (Note 2) 9: customer |
||||||||||||||||||
| Accuracy | 1: 0.1 % FSO |
||||||||||||||||||
| Electrical connection | AK0: terminal clamp alu housing 880: terminal clamp field housing 999: customer |
||||||||||||||||||
| Mechanical connection | Standard pressure connections 100: G1/2" DIN 3852 Z00: G1/2" with flush (Note 3) welded diaphragm (DIN 3852) 200: G1/2" EN 837 N00: 1/2" NPT Process connections (up to 40 bar) Z31: G1" with flush welded diaphragm (DIN 3852) F20: flange DN 25 / PN 40 (DIN 2501) F23: flange DN 50 / PN 40 (DIN 2501) F14: flange DN 80 / PN 16 (DIN 2501) F32: flange DN 2" / 150 lbs (ANSI B16.5) (Note 4) F33: flange DN 3" / 150 lbs (ANSI B16.5) (Note 4) DRD: DRD Ø 65 mm (Note 5) C61: Clamp DN 25 / 1" (DIN 32676) / 3A C62: Clamp DN 32 / 1 1/2" (DIN 32676) / 3A C63: Clamp DN 50 / 2" (DIN 32676) / 3A C69: Clamp 3/4" (DIN 32676) / 3A P41: Varivent® DN 40/50 / 3A |
||||||||||||||||||
| Diaphragm | 1: stainless steel 1.4435 (316L) H: Hastelloy® (Note 6) T: Tantalum (Note 6, 7) |
||||||||||||||||||
| Seals | Inch thread
EN 837 2: without (welded version) (Note 9) DRD, flange 0: without |
||||||||||||||||||
| Filling fluids | 1: silicone oil 2: food compatible oil C: Halocarbon (Note 6) 9: customer (Note 6) |
||||||||||||||||||
| Special version | 000: standard 200: with cooling element up to 300 °C (Note 6) 022: special compensation -40 … +60 °C (Note 10) |
||||||||||||||||||
| Notes | 1: Absolute pressure possible from 1 bar |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
