XMP ci
The XMP ci from BD Sensors is an analog process pressure transmitter with a special-developed capacitive ceramic sensor, which gives the XMP ci the capability of measuring high overpressure and has an outstanding media stability.
This sensor measures the pressure of a various medias including:
For sales or commercial inquiries please contact us at marine@insatech.com.
The XMP ci is a stable pressure transmitter that has the following features that benefits you:
Furthermore, the transmitter, by default, is equipped with HART®-communication as a standard. However, the customer can, as mentioned above, select a two-chamber aluminum die cast case or a stainless field housing.
The XMP ci from BD Sensors is applicable in various settings including:
If you have a certain need the XMP ci pressure transmitter is available with optional features like:
Moreover, there are several process connections e.g., thread, flange or DRD u.a. are available.

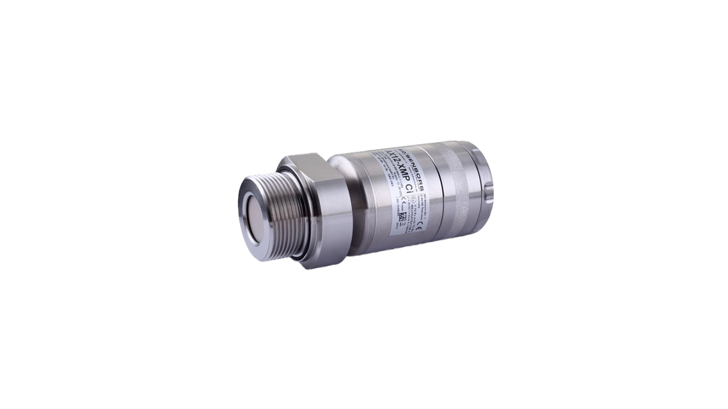

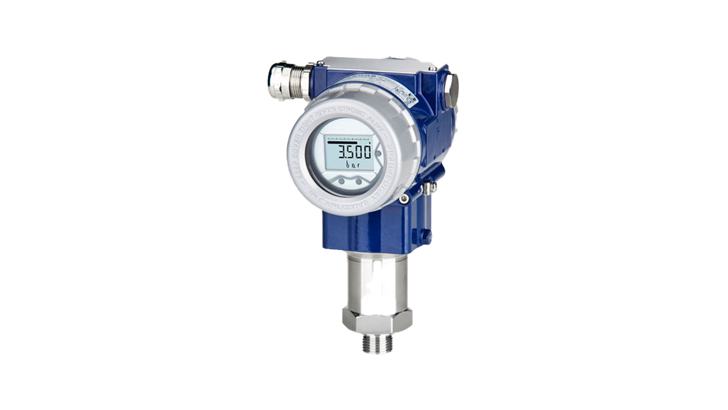

The XMP ci is available with both aluminium die cast case with display and stainless steel field housing with display.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 51E: gauge
|
||||||||||||||||||
| Input [bar] | 1600: 0.16 4000: 0.40 1001: 1 2001: 2 5001: 5 1002: 10 2002: 20 9999: customer |
||||||||||||||||||
| Design | Aluminium die cast case
Stainless steel field housing
|
||||||||||||||||||
| Output | I: intrinsic safety (ia), 4 … 20 mA / 2-wire, and with HART®-communication G: flameproof equipment (d), 4 … 20 mA / 2-wire, and with HART®-communication (Note 1) 9: customer |
||||||||||||||||||
| Accuracy | pN < 1 bar B: 0.2 % FSO 1: 0.1 % FSO 9: customer |
||||||||||||||||||
| Electrical connection | AK0: terminal clamp alu housing 880: terminal clamp field housing 999: customer |
||||||||||||||||||
| Mechanical connection | Standard pressure connections 100: G1/2" DIN 3852 200: G1/2" EN 837 N00: 1/2" NPT Process connections (up to 40 bar) M00: G1" with flush welded diaphragm (DIN 3852) F20: flange DN 25 / PN 40 (DIN 2501) F23: flange DN 50 / PN 40 (DIN 2501) F14: flange DN 80 / PN 16 (DIN 2501) F32: flange DN 2" / 150 lbs (ANSI B16.5) (Note 2) F33: flange DN 3" / 150 lbs (ANSI B16.5) (Note 2) DRD: DRD Ø 65 mm (Note 3) 999: customer |
||||||||||||||||||
| Diaphragm | C: ceramics Al2O3 99,9 % 9: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM 9: customer |
||||||||||||||||||
| Pressure port | standard
option for G 1 1/2" flush B: PVDF (Note 4) 9: customer |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: Only possible in combination with aluminium die cast case |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
