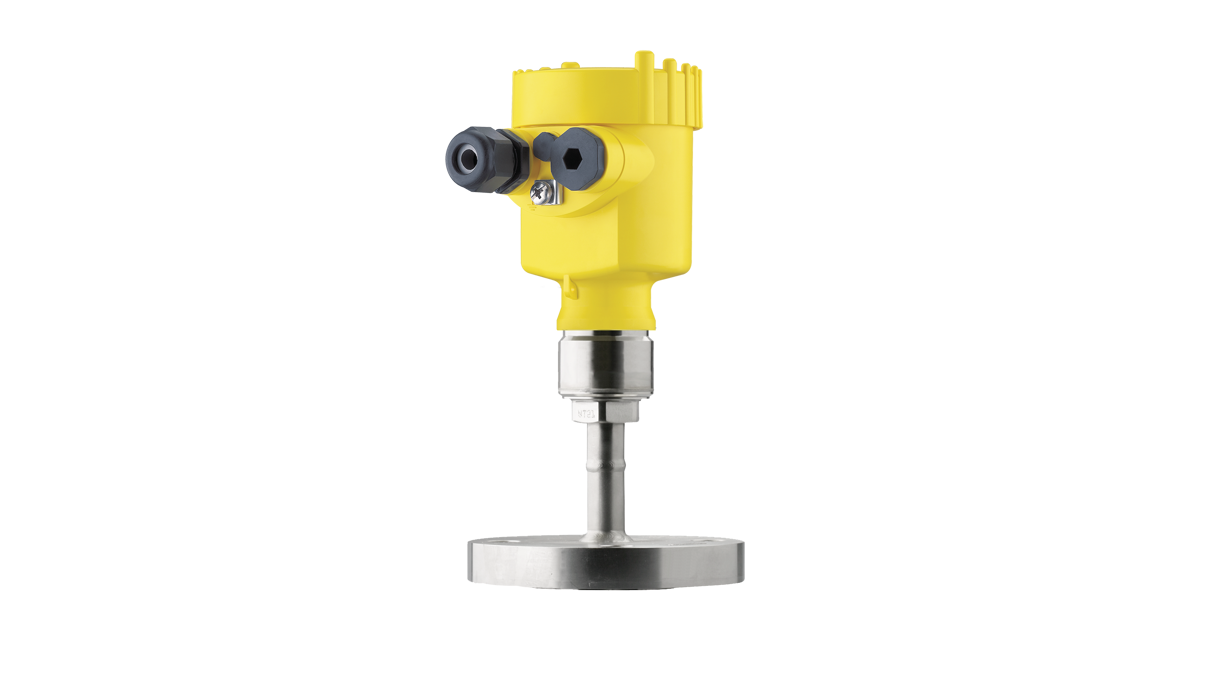

VEGABAR 81 with membrane attachment is a pressure transmitter developed for the high temperature ranges, but with the many membrane materials and coatings, it is also very suitable for chemical and petrochemical applications.
For sales or commercial inquiries please contact us at marine@insatech.com.
With the VEGABAR 80 series it is possible to make an electronic differential pressure measurement. The pressure transmitters in the VEGABAR 80 series can be ordered with a slave electronics which can be directly connected to a standard VEGABAR 80 series pressure transmitter, whereby the 2 pressure transmitters now act as a differential pressure transmitter.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range - Pressure | -1 ... 1000 bar |
||||||||||||||||||
| Process temperature | -90 ... 400 °C |
||||||||||||||||||
| Process pressure | -1 ... 1000 bar |
||||||||||||||||||
| Accuracy | 0.2 % |
||||||||||||||||||
| Output |
|
||||||||||||||||||
| Protection rating |
|
||||||||||||||||||
| Ambient temperature | -40 ... 80 °C |
||||||||||||||||||
| Materials, wetted parts |
|
|---|---|
| Seal material | No media contact |
| Housing material |
|
| Threaded connection |
|
|---|---|
| Flange connection |
|
| Hygenic fittings |
|
| Scope |
|
|---|---|
| Explosion protection |
|
| Foodstuffs/Pharma |
|
| Ship approval |
|
| Overfill protection |
|
| SIL qualification | SIL2 |
