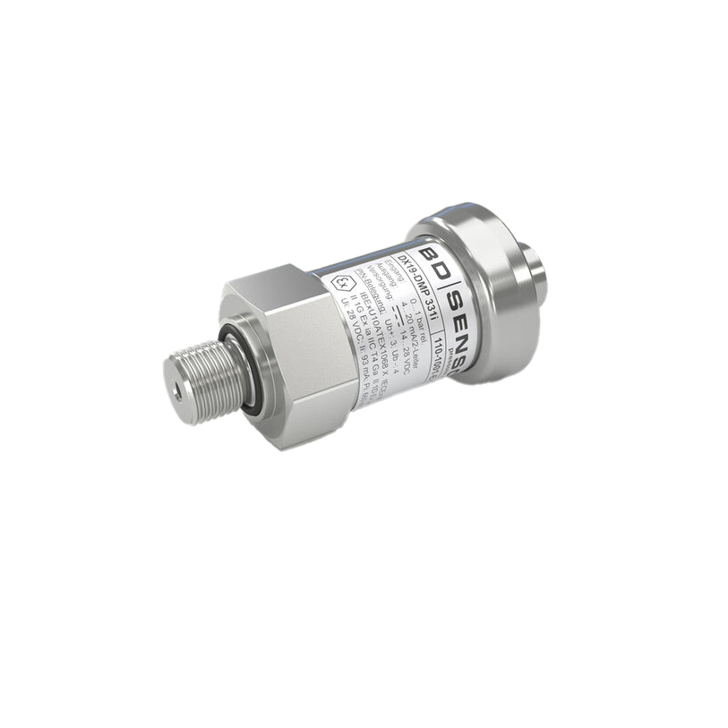

BD Sensors DMP i

For DMP 331i

110: gauge

111: absolute

For DMP 333i

130: gauge (Note 1)

131: absolute

For DMP 331i (Note 2)

4000: 0.40
1001: 1.0
2001: 2.0
4001: 4.0
1002: 10
2002: 20
4002: 40

For DMP 333i
1003: 100
2003: 200
4003: 400
6003: 600

For DMP 331i
S400: -0.4 … 0.4
S102: -1 … 1
V202: -1 ... 2
V402: -1 … 4
V103: -1 … 10
9999: customer

Aluminium die cast case

• A0: with display
• AN: without display

Stainless steel field housing

• FV: with display
• FN: without display
• 99: customer

1: 4 … 20 mA / 2-wire

E: intrinsic safety 4 … 20 mA / 2-wire

3: 0 … 10 V / 3-wire

9: customer

1: 0.1 % FSO

9: customer

100: male and female plug ISO 4400

200: male plug Binder series 723 (5-pin)

A00: male plug Binder series 723 (7-pin) and female plug Binder series 423 (7-pin)

M10: male plug M12x1 (4-pin) / metal - for analog output

M13: male plug M12x1 (4-pin) / metal - for digital output

BG0: Bayonet MIL-C-26482 (10-6); 2 wire

BG4: Bayonet MIL-C-26482 (10-6); 3 wire

TA0: cable outlet with PVC cable (IP67) (Note 3)

TR0: cable outlet, cable with ventilation tube (IP68) (Note 4)

850: compact field housing stainless steel 1.4301 (304)

999: customer

100: G1/2" DIN 3852

200: G1/2" EN 837

300: G1/4" DIN 3852

400: G1/4" EN 837

F00: G1/2" DIN 3852 with flush sensor (Note 5)

H00: G1/2" DIN 3852 open pressure port (Note 5)

N00: 1/2" NPT

N40: 1/4" NPT

999: customer

For DMP 331i

1: FKM
2: without (welded version) (Note 5, 6)

For DMP 333i

1: FKM

5: NBR

9: customer

111: standard

121: communication interface RS232 (Note 7)

999: customer

1: Absolute pressure possible from 1 bar
2: Only possible in combination with aluminium die cast case
3: Only possible for pN ≥ 1 bar up to 40 bar
4: 2"/150 lbs and 3"/150 lbs possible for nominal pressure ranges pN ≤ 10 bar
5: Mounting flange is included in the delivery (already pre-assembled)
6: Only possible with process connections
7: Tantal diaphragm possible with nominal pressure ranges from 1 bar
8: min. permissible temperature from -15 °C, possible for nominal pressure ranges pN ≤ 100 bar
9: Possible with pressure ranges between 1 bar and 40 bar
10: Option for version without display
