DMP 457

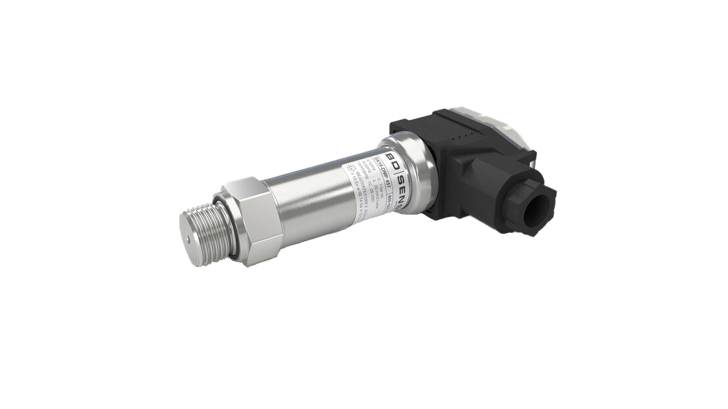

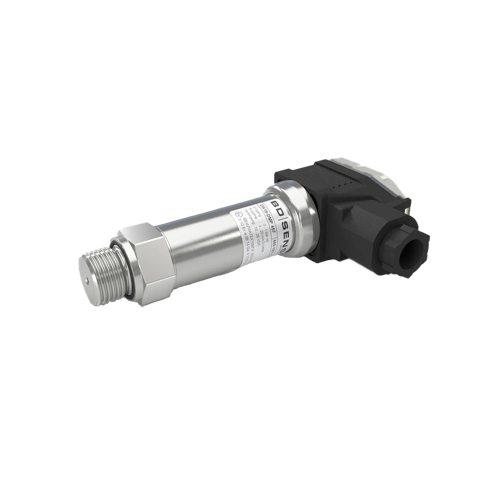

The DMP 457 pressure transmitter from BD Sensors is specifically designed for rough conditions occurring especially in shipbuilding and offshore applications. You can use all gaseous and liquid media, which are compatible with stainless steel 1.4404 (316L).
Furthermore, the sensor element is a piezo resistive stainless steel sensor with high accuracy and exceptional long-term stability.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMP 457 pressure transmitter is precise and has the following features that benefits you:
To meet the shipping approval mentioned above and make sure the sensor is applicable for the special requirements within shipbuilding and offshore extensive tests had to be passed.
The DMP 457 from BD Sensors is applicable in various settings including:
If you have a specific need the DMP 457 pressure transmitter is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 290: in bar gauge (Note 1) 291: in bar absolute (Note 2) 292: in mH2O, gauge (Note 1) 603: in mH2O, absolute (Note 2) |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire E: intrinsic safety T4; 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Accuracy | standard for pN ≥ 0,4 bar standard for pN ≥ 0,4 bar option for pN ≥ 0.4 bar 9: customer |
||||||||||||||||||

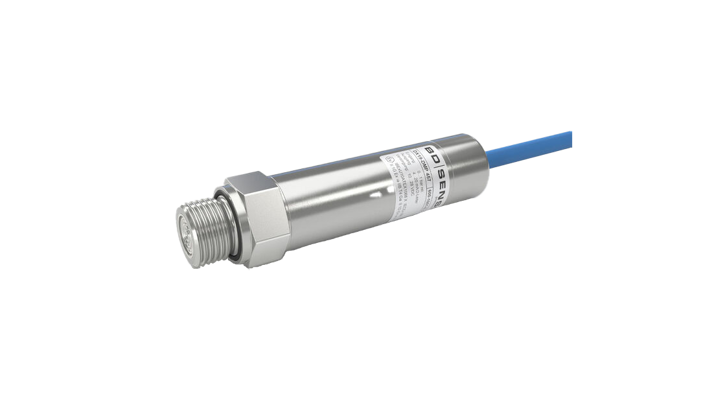

| Electrical connection | G10: male and female plug ISO 4400 (for cable Ø 4...6 mm) G00: male and female plug ISO 4400 GL (Note 3) (for cable Ø 10...14 mm) G01: male and female plug ISO 4400 GL (Note 3) (for cable Ø 4,5...11 mm) TR3: cable outlet (TPE-U-cable) (Note 4) 880: field housing stainless steel (316L) TT3: submersible version (1.4404 / 316L) with TPE-U-cable (Note 4) 999: customer |
||||||||||||||||||
| Mechanical connection | 100: G1/2" DIN 3852 200: G1/2" EN 837 300: G1/4" DIN 3852 400: G1/4" EN 837 F00: G 1/2" DIN 3852 with flush sensor (Note 5) H00: G1/2" DIN 3852 open pressure port (Note 5) N00: 1/2" NPT N40: 1/4" NPT 999: customer |
||||||||||||||||||
| Seals | 1: FKM 2: without (welded version) (Note 6) 9: customer |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: from 60 bar: measurement starts with ambient pressure |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
