DMP 343

The DMP 343 pressure transmitter from BD Sensors is specifically designed for the measurement of very low gauge pressure and is perfect for vacuum applications. The transmitter features outstanding thermal behavior, remarkable long-term stability, and can be used for the following media:

  • Non-aggressive
  • Dry gases
  • Non-aggressive, low viscos oils.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DMP 343 Features

The DMP 343 pressure transmitter is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 10 mbar up to 0 ... 1000 mbar
  • Accuracy: 0.35 % FSO
  • Small thermal effect
  • Exceptional long-term stability
  • Excellent linearity.

Because of the various standard output signals as well as mechanical and electrical connections available to the DMP 343 covers a wide range of applications.

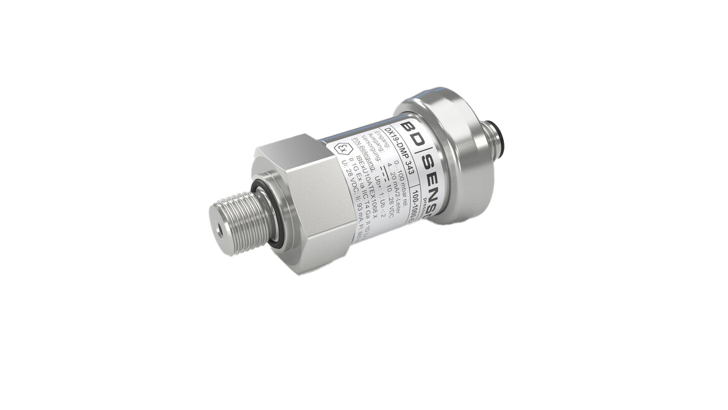

DMP343 Bdsensors 1024X16x9

Typical applications

The DMP 343 from BD Sensors is applicable in various settings including:

  • Maritime industry
  • Mechanical and plant engineering
  • HVAC.

Get more information here

Additional Available Features

If you have a specific need the DMP 343 pressure transmitter is available with optional features like:

  • IS-version Ex ia = intrinsically safe for gases and dusts
  • Different electrical and mechanical connections
  • Customer specific versions.

Does it match your need - contact us here

BD Sensors Logo Overview
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

100: gauge



Input [mbar]

0100: 10

0160: 16

0250: 25

0400: 40

0600: 60

1000: 100

1600: 160

2500: 250

4000: 400

6000: 600

1001: 1000

X102: -1000 ... 0

9999: customer

Output

1: 4 … 20 mA / 2-wire

2: 0 … 20 mA / 2-wi3e

3: 0 … 10 V / 3-wire

E: intrinsic safety 4 … 20 mA / 2-wire

9: customer

Accuracy

standard for pN > 100 mbar
3: 0.35 % FSO

standard for pN ≤ 100 mbar
5: 0,5 % FSO



Electrical connection

100: male and female plug ISO 4400

200: male plug Binder series 723 (5-pin)

TA0: cable outlet with PVC cable (IP67) (Note 1)

TR0: cable outlet, cable with ventilation tube (IP68) (Note 2)

M10: male plug M12x1 (4-pin) / metal

850: compact field housing stainless steel 1.4301 (304)

999: customer

Mechanical connection

100: G1/2" DIN 3852

200: G1/2" EN 837

300: G1/4" DIN 3852

400: G1/4" EN 837

H00: G1/2" DIN 3852 open pressure port

N00: 1/2" NPT

N40: 1/4" NPT

999: customer (Note 3)

Seals

1: FKM

9: customer

Special version

000: standard

999: customer

Notes

1: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request
2: code TR0 = PVC cable, cable with ventilation tube available in different types and lengths
3: metric threads and others on request
