DMP 339P

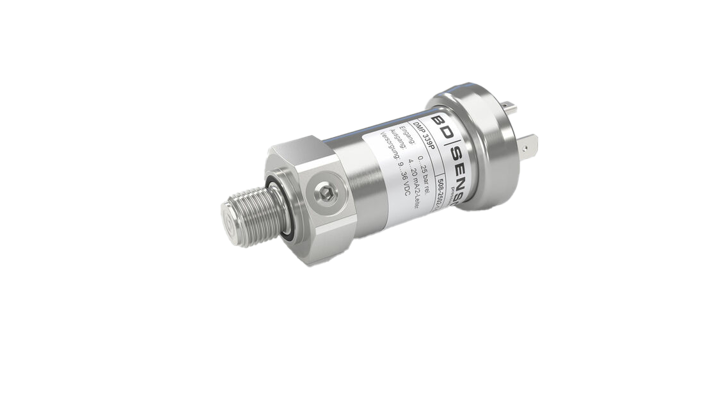

The DMP 339P industrial pressure transmitter from BD Sensors features a G 1/4" flush welded pressure port and is designed for the use in a range of machinery including metering systems. It is ideal for measuring the pressure of viscous and pasty media because there are no dead spaces arising from the flush welded stainless steel diaphragm.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMP 339P pressure transmitter is precise and has the following features that benefits you:
Material accumulation, dripping and stringing in machinery is eliminated, which increases the efficiency and reliability of your machines.
The DMP 339P from BD Sensors is applicable in various settings including:
If you have a specific need the DMP 339P pressure transmitter is available with optional features like:
Moreover, the DMP 339P is available with various electrical connections, ensuring an exceptional adaption to the conditions of the application you need.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 508: gauge |
||||||||||||||||||
| Input [bar] | 2502: 25 |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 3: 0 … 10 V / 3-wire 9: customer |
||||||||||||||||||
| Accuracy | 5: 0.5% FSO 9: customer |
||||||||||||||||||
| Electrical connection | 100: male and female plug ISO 4400 M10: male plug M12x1 (4-pin) / metal TA0: cable outlet with PVC cable (IP67) (Note 1) 999: customer |
||||||||||||||||||

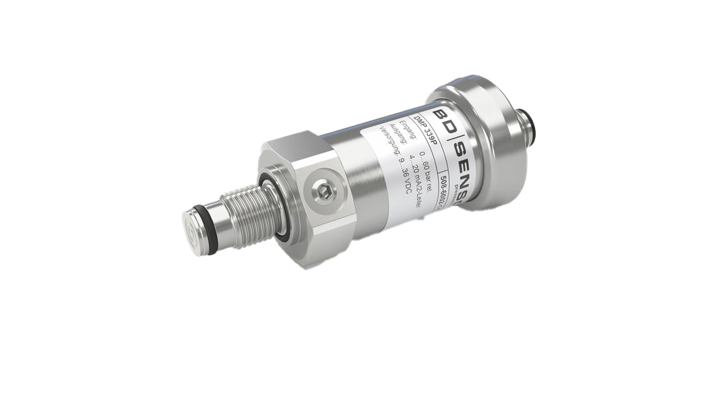

| Mechanical connection | Z02: G1/4" DIN3852, flush, welded Z54: G1/4" DIN3852, flush with 2 O-rings 999: customer |
||||||||||||||||||
| Diaphragm | 1: stainless steel 1.4435 (316L) 9: customer |
||||||||||||||||||
| Seal | 1: FKM 9: customer |
||||||||||||||||||
| Filling fluids | 1: silicone oil 9: customer |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request |
||||||||||||||||||
