DMP 336

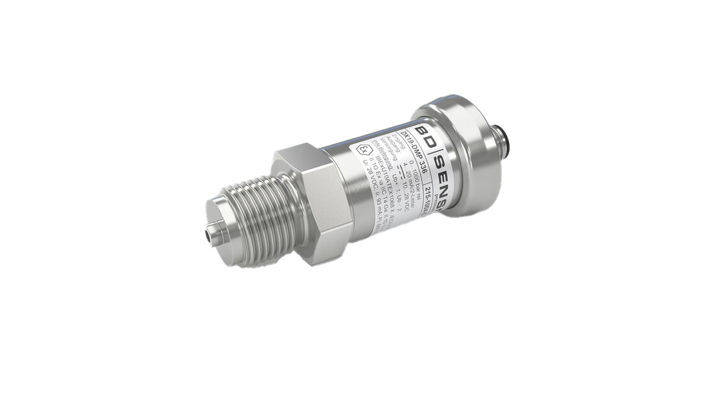

The DMP 336 from BD Sensors is an industrial pressure transmitter that is specifically developed for hydrogen applications. However, it is also excellent for other technical gases (e.g. oxygen). This is a possibility if you use an alloy based on 316L which prevents hydrogen embrittlement of the media-wetted parts.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMP 336 pressure transmitter is precise and has the following features that benefits you:
Furthermore, the level of hydrocarbon and particle contamination are significantly reduced because of a special treatment during production and cleaning.
The DMP 336 from BD Sensors is applicable in various settings including:
If you have a specific need the DMP 336 pressure transmitter is available with optional feature IS-version Ex ia, which is intrinsically safe for gases and dust.
Moreover, this option is offered for explosion-protected applications zone 0 / 20.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 215: gauge |
||||||||||||||||||
| Input [bar] | 1602: 16 2502: 25 4002: 40 6002: 60 1003: 100 1603: 160 2503: 250 4003: 400 6003: 600 1004: 1000 9999: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire E: intrinsic safety 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Accuracy | 5: 0.5 % FSO 9: customer |
||||||||||||||||||
| Electrical connection | M10: male plug M12x1 (4-pin) / metal TA0: cable outlet with PVC cable (IP67) (Note 1) 999: customer |
||||||||||||||||||
| Mechanical connection | 200: G1/2" EN 837 400: G1/4" EN 837 pN ≤ 600 bar 999: customer |
||||||||||||||||||
| Seals | 2: without (welded version) 9: customer |
||||||||||||||||||
| Special version | 007: oil-and grease free -oxygen 999: customer |
||||||||||||||||||
| Notes | 1: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
