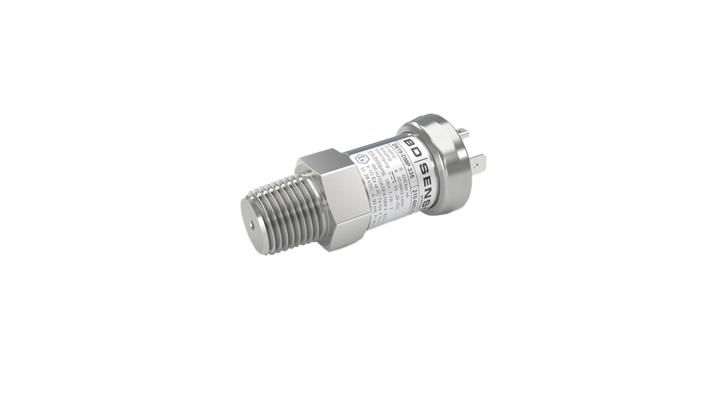

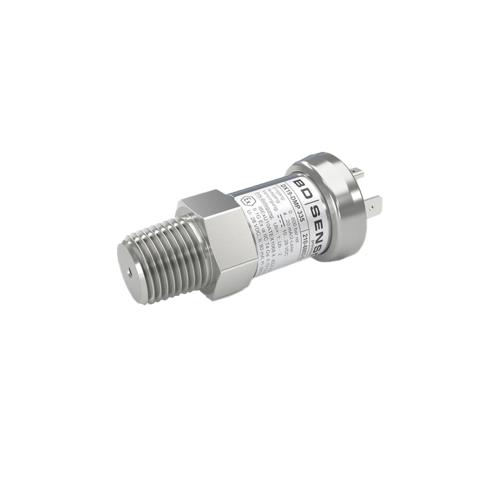

DMP 335
The DMP 335 from BD Sensors is an industrial pressure transmitter that is based on a stainless steel welded pressure sensor without fluid. This characteristic gives you the special advantage of being able to use the DMP 335 in applications where silicon oil or elastomeric seals cannot be used.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMP 335 pressure transmitter is precise and has the following features that benefits you:
The DMP 335 from BD Sensors is applicable in various settings including:
If you have a specific need the DMP 335 pressure transmitter is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 210: gauge |
||||||||||||||||||
| Input [bar] | 6001: 6 1002: 10 1602: 16 2502: 25 4002: 40 6002: 60 1003: 100 1603: 160 2503: 250 4003: 400 6003: 600 9999: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 3: 0 … 10 V / 3-wire E: intrinsic safety 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Accuracy | 5: 0.5 % FSO 9: customer |
||||||||||||||||||
| Electrical connection | 100: male and female plug ISO 4400 200: male plug Binder series 723 (5-pin) TA0: cable outlet with PVC cable (IP67) (Note 2) TR0: cable outlet, cable with ventilation tube (IP68) (Note 3) M10: male plug M12x1 (4-pin) / metal 850: compact field housing stainless steel 1.4301 (304) 999: customer |
||||||||||||||||||
| Mechanical connection | 200: G1/2" EN 837 400: G1/4" EN 837 N40: 1/4" NPT 999: customer |
||||||||||||||||||
| Seals | 2: without (welded version) 9: customer |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: standard: 2 m PVC cable without ventilation tube (permissible temperatur: -5 … 70 °C) |
||||||||||||||||||
