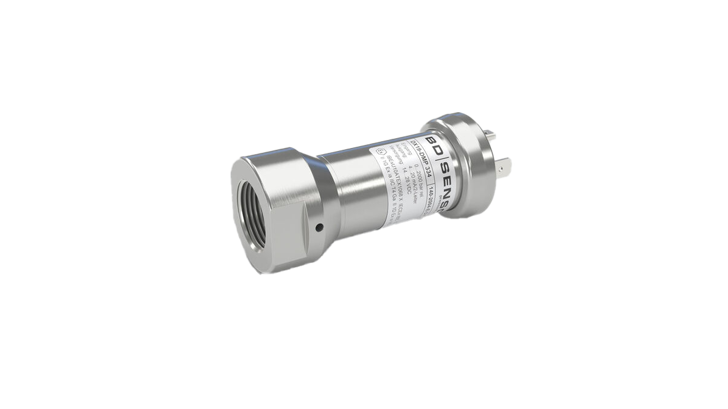

DMP 334
The DMP 334 from BD Sensors is an industrial pressure transmitter that has been specifically designed for use in hydraulic systems up to 2200 bar. All the characteristics of the DMP 334 as well as the exceptional measurement data and eminent offset stability all offer the hydraulic user a pressure transmitter with:
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMP 334 pressure transmitter is precise and has the following features that benefits you:
The base element of DMP 334 is a thin film sensor, that is welded with a pressure port, as mentioned above, and meets the highest demands of foolproofness and reliability.
The DMP 334 from BD Sensors is applicable in various settings including:
If you have a specific need the DMP 334 pressure transmitter is available with optional features like:
Furthermore, the DMP 334 can be delivered with pressure ports of extreme pressure technics.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 140: gauge |
||||||||||||||||||
| Input [bar] | 6003: 600 (Note 1) 1004: 1000 1604: 1600 2004: 2000 2204: 2200 9999: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 3: 0 … 10 V / 3-wire E: intrinsic safety 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Accuracy | 3: 0.35 % FSO 9: customer |
||||||||||||||||||
| Electrical connection | 100: male and female plug ISO 4400 200: male plug Binder series 723 (5-pin) TA0: cable outlet with PVC cable (IP67) (Note 2) M10: male plug M12x1 (4-pin) / metal 850: compact field housing stainless steel 1.4301 (304) 999: customer |
||||||||||||||||||
| Mechanical connection | 200: G1/2" EN 837 (Note 3) D28: M20x1.5 internal thread V00: 9/16 UNF internal thread 999: customer |
||||||||||||||||||
| Seals | 2: without (welded version) 9: customer |
||||||||||||||||||
| Special version | 041: standard (adjustable) (Note 4) 000: IS version, cable outlet, field housing 999: customer |
||||||||||||||||||
| Notes | 1: only available with pressure port G1/2" EN 837 |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
