DMP 333P

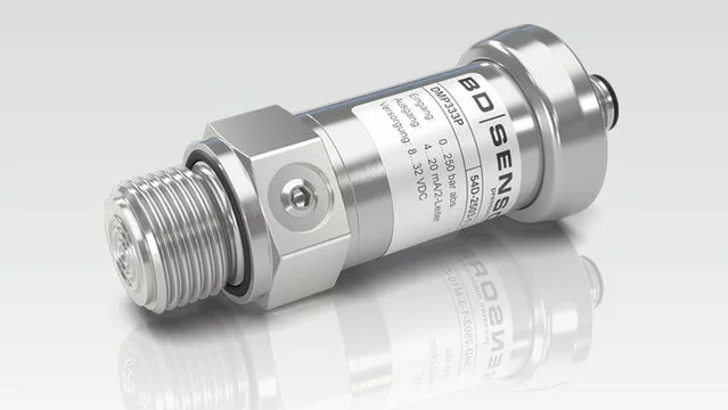

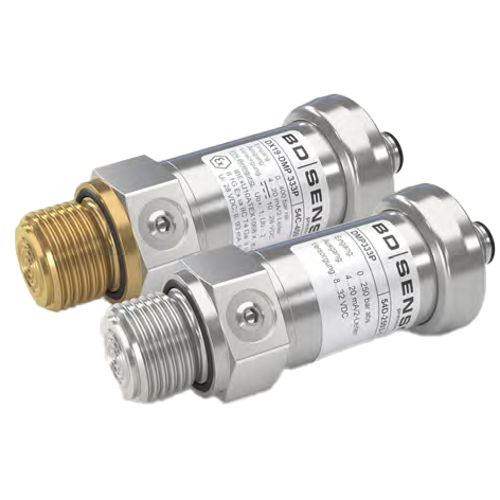

The DMP 333P pressure transmitter is designed for high-pressure measurement in viscous media and hydrogen. It features a flush-welded stainless steel diaphragm, making the DMP 333P ideal for applications requiring a process connection without dead volume. Optionally, a gold-plated process connection is available for hydrogen applications.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMP 333P pressure transmitter is precise and has the following features that benefits you:
The DMP 333P from BD Sensors is applicable in various settings including:

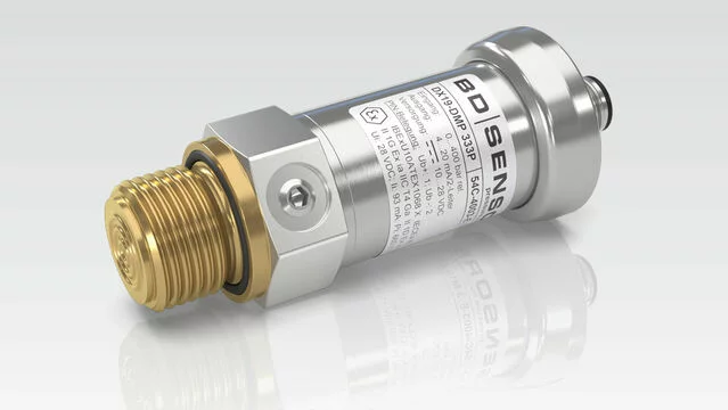

For hydrogen applications, a gold-plated process connection option is available.
If you have specific needs, the DMP 333P pressure transmitter is available with optional features such as:
| Model/Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 54C: gauge (note 1) |
||||||||||||||||||
| Input [bar] | 6002: 60 |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 3: 0 … 10 V / 3-wire E: intrinsic safety 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Accuracy | 3: 0.35 % FSO (standard) 2: 0.25 % FSO (option) 9: customer |
||||||||||||||||||
| Electrical connection | 100: male and female plug ISO 4400 200: male plug Binder series 723 (5-pin) TA0: cable outlet with PVC cable (IP67) (Note 2) M10: male plug M12x1 (4-pin) / metal 850: compact field housing stainless steel1.4301 (304) 999: customer |
||||||||||||||||||
| Mechanical connection | Z00: G1/2" DIN 3852 with flush diaphragm 999: customer |
||||||||||||||||||
| Diaphragm | 1: stainless steel 1.4435 (316L) G: stainless steel 1.4435 (316L), golden 9: customer |
||||||||||||||||||
| Seal | 1: FKM 7: FFKM (note 3) 9: customer |
||||||||||||||||||
| Filling fluid | 1: silicone oil 9: customer |
||||||||||||||||||
| Special version | 000: standard 200: with cooling element up to 200 °C (note 4) 999: customer |
||||||||||||||||||
| Notes | 1: measurement starts with ambient pressure |
||||||||||||||||||
