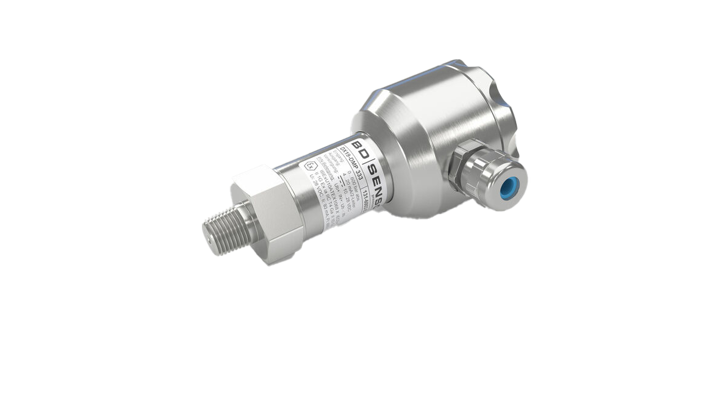

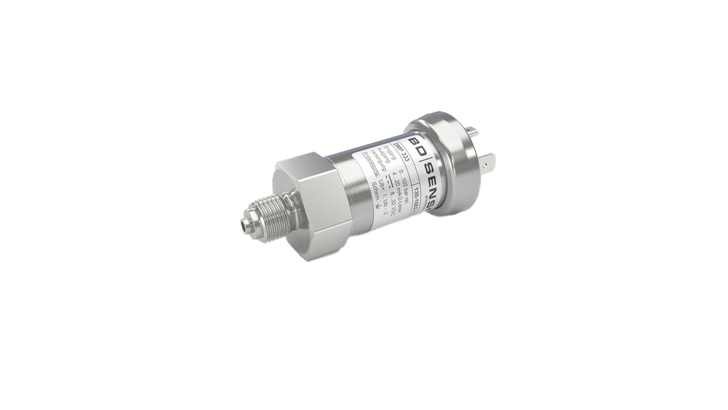

DMP 333
The DMP 333 pressure transmitter from BD Sensors has been specifically designed for hydraulic applications with high static and dynamic pressure. The transmitter is characterized by an exceptional long-term stability, also under fast changing pressure as well as positive and negative pressure peaks.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMP 333 pressure transmitter is precise and has the following features that benefits you:
The DMP 333 from BD Sensors is applicable in various settings including:
The modular concept of the device makes it possible to combine different stainless steel sensors and electronic modules with various electrical and mechanical versions. Thus, a diversity of variants is created, meeting almost all requirements in hydraulic applications.
If you have a specific need the DMP 333 pressure transmitter is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 130: gauge 131: absolute |
||||||||||||||||||
| Input [bar] | 1003: 100 1603: 160 2503: 250 4003: 400 6003: 600 9999: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 2: 0 … 20 mA / 3-wire 3: 0 … 10 V / 3-wire E: intrinsic safety 4 … 20 mA / 2-wire 1S: SIL2 4 … 20 mA / 2-wire ES: SIL2 with intrinsic safety 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Accuracy | standard option 1 option 2 9: customer |
||||||||||||||||||
| Electrical connection | 100: male and female plug ISO 4400 200: male plug Binder series 723 (5-pin) TA0: cable outlet with PVC cable (IP67) (Note 2) TR0: cable outlet, cable with ventilation tube (IP68) (Note 3) M10: male plug M12x1 (4-pin) / metal BG0: Bayonet MIL-C-26482 (10-6); 2 wire BG4: Bayonet MIL-C-26482 (10-6); 3 wire 850: compact field housing stainless steel 1.4301 (304) 999: customer |
||||||||||||||||||
| Mechanical connection | 100: G1/2" DIN 3852 200: G1/2" EN 837 300: G1/4" DIN 3852 400: G1/4" EN 837 N00: 1/2" NPT 999: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM (Note 4) 9: customer |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: not in combination with SIL |
||||||||||||||||||
