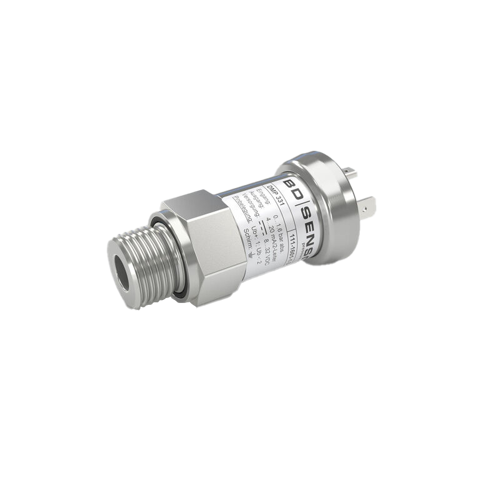

DMP331 1 Bdsensors 1024 Square

DMP 331

The DMP 331 pressure transmitter from BD Sensors can be used in all industrial areas when the medium is compatible with stainless steel 1.4404 (316 L) or 1.4435 (316 L). Moreover, the transmitter is available with different elastomer seals as well as a helium tested welded version available.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DMP 331 Features

The DMP 331 pressure transmitter is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 100 mbar up to 0 ... 60 bar
  • Accuracy: 0.35 % (opt. 0.25 % / 0,1%) FSO
  • Flush pressure port G 1/2" from 100 mbar
  • Excellent thermal behavior
  • Exceptional accuracy.

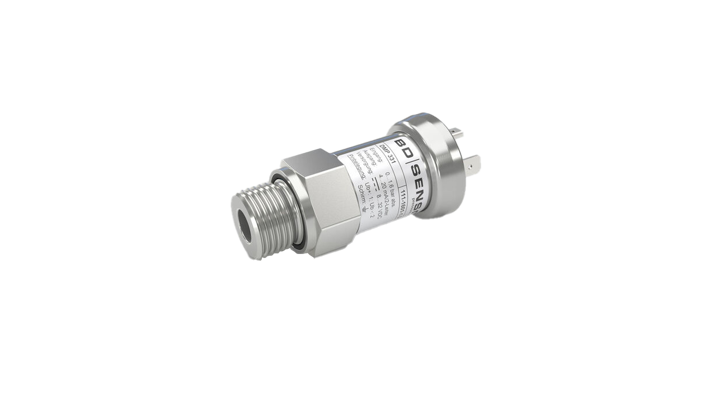

DMP331 1 Bdsensors 1024X16x9

Typical applications

The DMP 331 from BD Sensors is applicable in various settings including:

  • Maritime industry
  • Mechanical and plant engineering
  • Energy industry
  • HVAC
  • Environmental industry.

The modular concept of the device makes it possible to combine different stainless steel sensors and electronic modules with various electrical and mechanical versions. Therefore, a diversity of variations is created, meeting almost all requirements in industrial applications.

Get more information here

Additional Available Features

If you have a specific need the DMP 331 pressure transmitter is available with optional features like:

  • IS-version Ex ia = intrinsically safe for gases and dusts
  • SIL 2 according to IEC 61508 / IEC 61511
  • Pressure sensor welded
  • Customer specific versions.

Does it match your need - contact us here

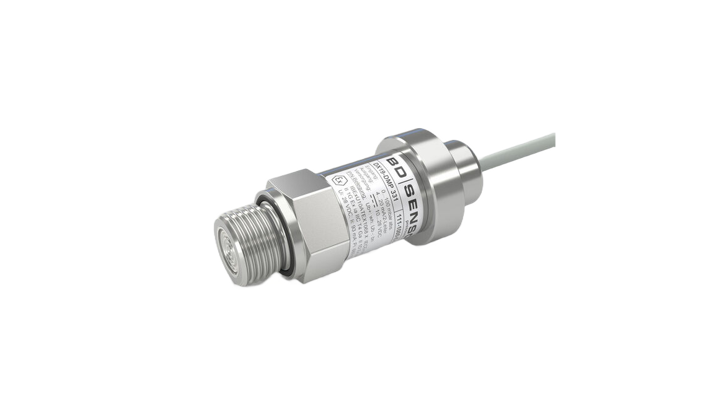

DMP331 Bdsensors 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

110: gauge

111: absolute (Note 1)

Input [bar]

1000: 0.10 (Note 1)
1600: 0.16 (Note 1)
2500: 0.25 (Note 1)
4000:
0.40
6000: 0.60
1001:
1.0
1601: 1.6
2501: 2.5
4001: 4.0
6001: 6.0
1002:
10
1602: 16
2502:
25
4002: 40
6002: 60
X102: -1 … 0
9999: customer

Output

1: 4 … 20 mA / 2-wire

2: 0 … 20 mA / 3-wire

3: 0 … 10 V / 3-wire

E: intrinsic safety 4 … 20 mA / 2-wire

1S: SIL2 4 … 20 mA / 2-wire

ES: SIL2 with intrinsic safety 4 … 20 mA / 2-wire

9: customer

Accuracy

standard for pN ≥ 0.4 bar
3: 0.35 % FSO

standard for pN< 0.4 bar
5: 0.50 % FSO

option 1 for pN ≥ 0.4 bar
2: 0.25 % FSO

option 2
1: 0.10 % FSO (Note 2)

9: customer

Electrical connection

100: male and female plug ISO 4400

200: male plug Binder series 723 (5-pin)

TA0: cable outlet with PVC cable (IP67) (Note 2)

TR0: cable outlet, cable with ventilation tube (IP68) (Note 3)

M10: male plug M12x1 (4-pin) / metal

BG0: Bayonet MIL-C-26482 (10-6); 2 wire

BG4: Bayonet MIL-C-26482 (10-6); 3 wire

850: compact field housing stainless steel 1.4301 (304)

999: customer

Mechanical connection

100: G1/2" DIN 3852

200: G1/2" EN 837

300: G1/4" DIN 3852

J00: G1/4" DIN 3852, internal thread

400: G1/4" EN 837

F00: G1/2" DIN 3852 with flush sensor

H00: G1/2" DIN 3852 open pressure port

N00: 1/2" NPT

N40: 1/4" NPT

999: customer

Seals

1: FKM

3: EPDM

2: without (welded version) (Note 5)

9: customer

Special version

000: standard

999: customer

Notes

1: absolute pressure possible from 0.4 bar
2: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request
3: code TR0 = PVC cable, cable with ventilation tube available in different types and lengths
4: not possible for nominal pressure pN > 40 bar
5: welded version only with pressure ports according to EN 837, possible for pN ≤ 40 bar
