DMP 321

The DMP 321 pressure transmitter from BD Sensors is a systematic further development of the DMP 331 that is approved for our various applications. The DMP 321 shows an improved signal behavior and sets new standards in the industrial class. The metallic diaphragm of the transmitter is made of stainless steel (1.4435 / 316L) and offers a great corrosion resistance.

Moreover, the modular device concept makes it possible to combine different pressure ranges with a variety of electrical and mechanical connections. Thus, a diversity of variations is created, meeting almost all requirements in industrial applications.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DMP 321 Features

The DMP 321 pressure transmitter is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 100 mbar up to 0 ... 600 bar
  • Accuracy: 0.25 % (opt. 0.1 %) FSO
  • Exceptional thermal behavior
  • Excellent accuracy
  • Compact design.

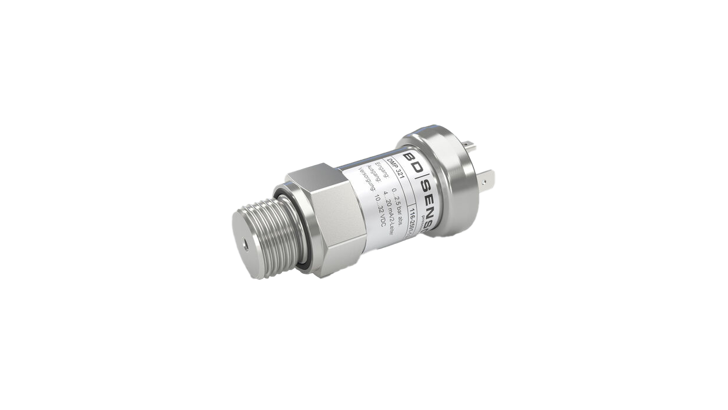

DMP321 Bdsensors 1024X16x9

Typical applications

The DMP 321 from BD Sensors is applicable in various settings including:

  • Maritime industry
  • Mechanical and plant engineering
  • Energy industry
  • Utility vehicles / mobile hydraulics
  • Environmental industry.

Get more information here

Additional Available Features

If you have a specific need the DMP 321 pressure transmitter is available with optional features like:

  • IS-version Ex ia = intrinsically safe for gases and dusts
  • Pressure sensor welded
  • Customer specific versions.

Does it match your need - contact us here

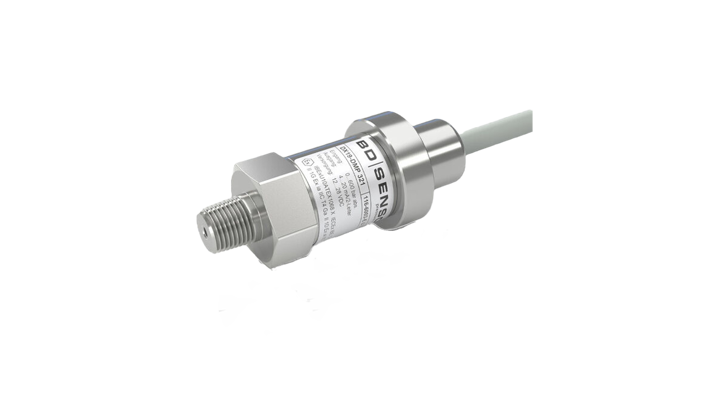

DMP321 1 Bdsensors 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

115: gauge

116: absolute (Note 1)
Input [bar]

1000: 0.10 (Note 1)
1600: 0.16 (Note 1)
2500: 0.25 (Note 1)
4000: 0.40
6000: 0.60
1001: 1.0
1601: 1.6
2501: 2.5
4001: 4.0
6002: 6.0
1002: 10
1602: 16
2502: 25
4002: 40
1003: 100
1603: 160
2503: 250
4003: 400
6003: 600
X102: -1 … 0
9999: customer
Output

1: 4 … 20 mA / 2-wire

2: 0 … 20 mA / 3-wire

3: 0 … 10 mA / 3-wire

E: intrinsic safety and 4 … 20 mA / 2-wire

9: customer
Accuracy

standard
2: 0.25% FSO

option
1: 0.10 % FSO

9: customer
Electrical connection

100: male and female plug ISO 4400

200: male plug Binder series 723 (5-pin)

TA0: cable outlet with PVC cable (IP67) (Note 2)

TR0: cable outlet, cable with ventilation tube (IP68) (Note 3)

M10: male plug M12x1 (4-pin) / metal

BG0: Bayonet MIL-C-26482 (10-6); 2 wire

BG4: Bayonet MIL-C-26482 (10-6); 3 wire

850: compact field housing stainless steel 1.4301 (304)

999: customer
Mechanical connection

100: G1/2" DIN 3852

200: G1/2" EN 837

300: G1/4" DIN 3852

J00: G1/4" DIN 3852, internal thread

400: G1/4" EN 837

F00: G1/2" DIN 3852 with flush sensor (Note 4)

H00: G1/2" DIN 3852 open pressure port

N00: 1/2" NPT

N40: 1/4" NPT

999: customer
Seals

1: FKM

3: EPDM

2: without (welded version) (Note 5)

9: customer
Special version

000: standard

999: customer
Notes

1: absolute pressure possible from 0.4 bar
2: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request
3: code TR0 = PVC cable, cable with ventilation tube available in different types and lengths
4: not possible for nominal pressure pN > 40 bar
5: welded version only with pressure ports according to EN 837, possible for pN ≤ 40 bar
