DMK 458

The DMK 458 pressure transmitter from BD Sensors is developed for marine and offshore applications. Additionally, to the thread connections, different flush versions are available, which are particularly suitable for pasty, viscous, and polluted media.

The capacitive ceramic sensor specifically designed for BD Sensors is making is making the DMK 458 a remarkable accuracy, as well as a high overload and temperature resistance. This option is available in Al2O3 99.9.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DMK 458 Features

The DMK 458 pressure transmitter is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 40 mbar up to 0 ... 20 bar
  • Accuracy: 0.25 % (opt. 0.1 %) FSO
  • Shipping approvals: American Bureau of Shipping (ABS), Bureau Veritas (BV), China Classification Society (CCS), Det Norske Veritas (DNV), Germanischer Lloyd (GL), Lloyd's Register (LR)
  • High overpressure resistance
  • Exceptional accuracy.

To meet the shipping approval mentioned above and make sure the sensor is applicable for the special requirements within shipbuilding and offshore extensive tests had to be passed.

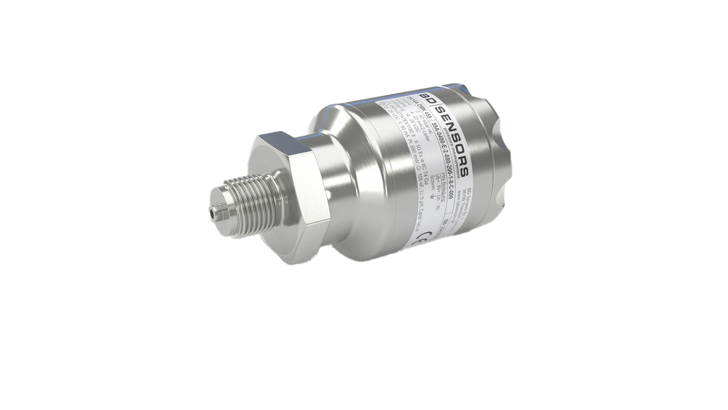

DMK458 Bdsensors 1024X16x9

Typical applications

The DMK 458 from BD Sensors is applicable in various settings including:

  • Maritime industry
  • Mechanical and plant engineering
  • Shipbuilding.

Get more information here

Additional Available Features

If you have a specific need the DMK 458 pressure transmitter is available with optional features like:

  • IS-version, Ex ia = intrinsically safe for gases and dusts
  • Diaphragm AI2O3 99.9 %
  • Pressure port CuNiFe.

Does it match your need - contact us here

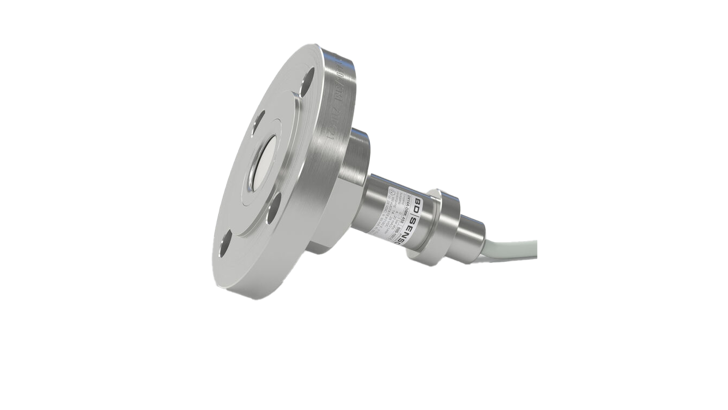

DMK458 1 Bdsensors 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

59A: in bar gauge

59B: in bar absolute (Note 1)

59C: in mH2O, gauge

59D: in mH2O, absolute (Note 1)
Input

[mH2O]
0400: 0.4
0600: 0.6
1000: 1.0
1600: 1.6
2500: 2.5
4000: 4.0
6000: 6.0
1001: 10
1601: 16
2501: 25
4001: 40
6001: 60
1002: 100
1602: 160
2002: 200

[bar]
0400: 0.04
0600: 0.06
1000: 0.10
1600: 0.16
2500: 0.25
4000: 0.40
6000: 0.60
1001: 1.0
1601: 1.6
2501: 2.5
4001: 4.0
6001: 6.0
1002: 10
1602: 16
2002: 20
9999: customer
Output

1: 4 … 20 mA / 2-wire

E: intrinsic safety T4; 4 … 20 mA / 2-wire

9: customer
Accuracy

standard
2: 0.25 % FSO

option for pN ≥ 0.6 bar
1: 0.1% FSO

9: customer
Electrical connection

G10: male and female plug ISO 4400 (for cable Ø 4 … 6 mm)

G00: male and female plug ISO 4400 GL (for cable Ø 10 … 14 mm) (Note 2)

G01: male and female plug ISO 4400 GL (for cable Ø 4.5 … 11 mm) (Note 2)

M10: male plug M12x1 (4-pin) /metal version

TR3: cable outlet with TPE-U-cable (with ventilation tube) (Note 3)

880: field housing stainless steel 1.4404 (316L)

999: customer
Mechanical connection

100: G1/2" DIN 3852

200: G1/2" EN 837

N00: 1/2" NPT

H00: G1/2" DIN 3852 open pressure port

F20: flange DN 25 / PN 40 (DIN 2501)

F22: flange DN 40 / PN 40 ( DIN 2501)

F23: flange DN 50 / PN 40 (DIN 2501)

F14: flange DN 80 / PN 16 ( DIN 2501) (Note 4)

F32: flange DN 2" / 150 lbs (ANSI B 16.5) (Note 4)

F33: flange DN 3" / 150 lbs (ANSI B 16.5) (Note 4)

999: customer
Seals

1: FKM

9: other
Pressure port

8: stainless steel 1.4404 (316L)

K: copper-nickel-alloy (CuNi10Fe1Mn) (Note 5)

9: customer
Diaphragm

2: ceramics Al2O3 96 %

C: ceramics Al2O3 99.9 %

9: customer
Special version

000: standard

999: customer
Notes

1: nominal pressure ranges absolute from 1 bar
2: female plug is GL-approbated
3: shielded TPE-U-cable with ventilation tube available in different lengths
4: DN80/PN16 possible for nominal pressure ranges pN ≤ 16 bar; 2"/150 lbs and 3"/150 lbs possible for nominal pressure ranges pN ≤ 10 bar
5: CuNi10Fe1Mn only in combination with G 1/2" open pressure port (code H00); not possible with field housing (code 880)
