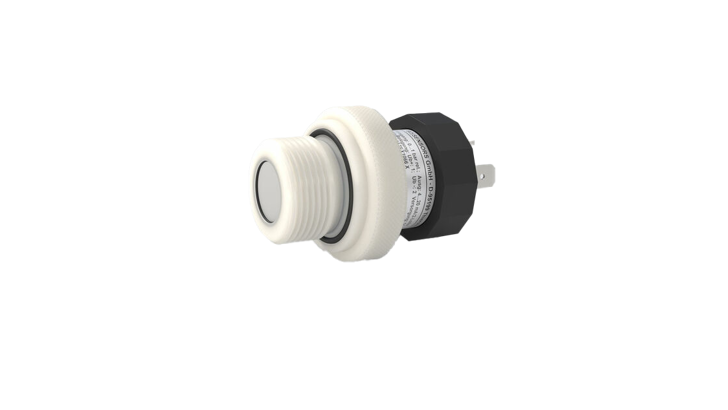

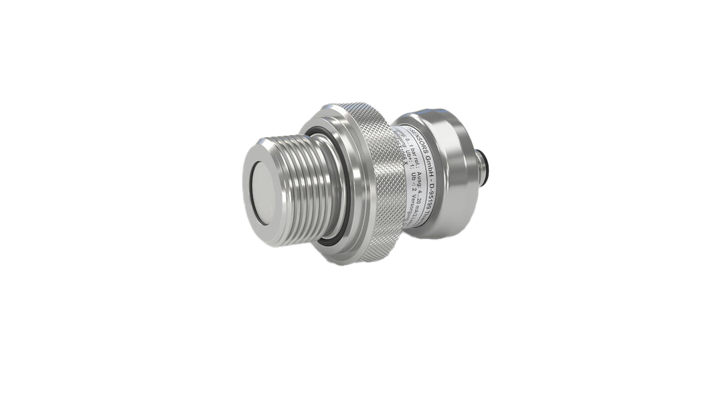

DMK 387
The DMK 387 pressure transmitter from BD Sensors is specifically designed for measuring small system pressure and filling heights. Thus, the transmitter is applicable in various setting such as the maritime industry.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMK 387 pressure transmitter is precise and has the following features that benefits you:
Furthermore, the DMK 387 offers a high overpressure resistance as well as a high temperature and media resistance because of the possibility of using the special developed capacitive sensor, available in AI2O3 99.9%.
The DMK 387 from BD Sensors is applicable in various settings including:
If you have a specific need the DMK 387 pressure transmitter is available with optional features like:
Thus, as mentioned above the pressure transmitter is available in an intrinsically safe version for usage in explosive environments.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 285: in bar gauge 286: in mH2O, gauge |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 3: 0 … 10 mA / 3-wire E: intrinsic safety T4; 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Accuracy | standard option 9: customer |
||||||||||||||||||
| Electrical connection | 100: male and female plug ISO 4400 200: male plug Binder series 723 (5-pin) TA0: cable outlet with PVC cable (IP67) (Note 1) TR0: cable outlet, cable with ventilation tube (IP68) (Note 2) M10: male plug M12x1 (4-pin) / metal 850: compact field housing stainless steel 1.4301 (304) 999: customer |
||||||||||||||||||
| Mechanical connection (Note 3) | 100: G1/2" DIN 3852 200: G1/2" EN 837 300: G1/4" DIN 3852 400: G1/4" EN 837 K00: G3/4" with flush sensor (Note 4) 999: customer |
||||||||||||||||||
| Seal | 1: FKM 3: EPDM 7: FFKM 9: customer |
||||||||||||||||||
| Pressure port | 1: stainless steel 1.4404 (316L) B: PVDF (Note 5) R: PP-HT (Note 5) 9: customer |
||||||||||||||||||
| Diaphragm | C: ceramics Al2O3 99.9 % 9: customer |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
