DMP 351P

The DMK 351P pressure transmitter from BD Sensors is designed for measuring small system pressure in various industries. The transmitter is based on the special developed ceramic sensor, which features high overpressure resistance and high endurance against most aggressive media.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DMP 351P Features

The DMK 351P pressure transmitter is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 40 mbar up to 0 ... 20 bar
  • Accuracy: 0.35 % (opt. 0.25 %) FSO
  • Hygienic version
  • High overpressure capability
  • Several process connections (G1" cone, Clamp, dairy pipe, etc.) (G 1/2, dairy pipe, clamp, etc.).

Thus, the various process and electrical connections, as well as an intrinsically safe version complete the range of possibilities.

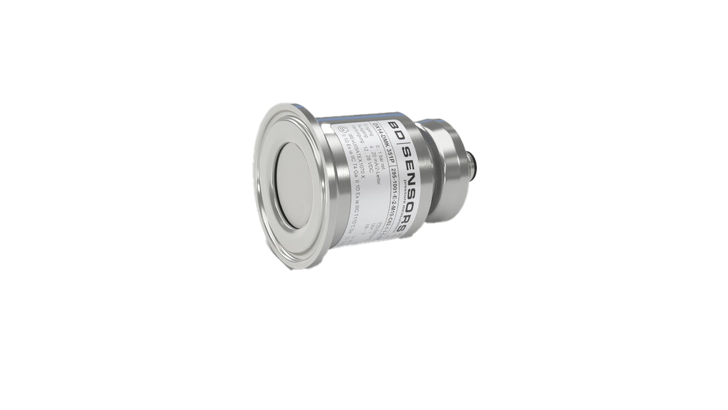

DMK351P Bdsensors 1024X16x9

Typical applications

The DMK 351P from BD Sensors is applicable in various settings including:

  • Maritime industry
  • Mechanical and plant engineering
  • Chemical industry
  • Laboratory
  • Medical technology
  • Food and beverage
  • Packaging and paper industry.

Get more information here

Additional Available Features

If you have a specific need the DMK 351P pressure transmitter is available with optional features like:

  • IS-version, Ex ia = intrinsically for gases and dusts
  • Diaphragm 99.9 % AI2O3
  • Customer specific versions e.g. special pressure ranges.

Does it match your need - contact us here

BD Sensors Logo Overview
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

295: gauge

296: absolute (Note 1)
Input

[mH2O]
0400: 0.4
0600: 0.6
1000: 1.0
1600: 1.6
2500: 2.5
4000: 4.0
6000: 6.0
1001: 10
1601: 16
2501: 25
4001: 40
6001: 60
1002: 100
1602: 160
2002: 200

[bar]
0400: 0.04
0600: 0.06
1000: 0.10
1600: 0.16
2500: 0.25
4000: 0.40
6000: 0.60
1001: 1.0
1601: 1.6
2501: 2.5
4001: 4.0
6001: 6.0
1002: 10
1602: 16
2002: 20
9999: customer
Output

1: 4 … 20 mA / 2-wire

3: 0 … 10 V / 3-wire

E: intrinsic safety 4 … 20 mA / 2-wire

9: customer
Accuracy

standard
3: 0.35 % FSO

standard for pN ≥ 0,6 bar
2: 0.25% FSO

9: customer
Electrical connection

100: male and female plug ISO 4400

200: male plug Binder series 723 (5-pin)

M10: male plug M12x1 (4-pin) / metal

TA0: cable outlet with PVC cable (IP67) (Note 2)

TR0: cable outlet, cable with ventilation tube (IP68) (Note 3)

850: compact field housing stainless steel 1.4301 (304)

999: customer
Mechanical connection

M00: G 1 1/2" DIN flush (DIN 3852)

C62: Clamp DN 32 (DIN 32676)

C63: Clamp DN 50 (DIN 32676)

M75: dairy pipe DN 40 (DIN 11851) (Note 4)

M76: dairy pipe DN 50 (DIN 11851) (Note 4)

P41: Varivent® DN 40/50

F20: flange DN 25 / PN 40 (DIN 2501)

F23: flange DN 50 / PN 40 (DIN 2501)

F14: flange DN 80 / PN 16 (DIN 2501)

999: customer
Seals

1: FKM

3: EPDM

9: customer
Pressure port

1: stainless steel 1.4404 (316L)

9: customer
Diaphragm

2: ceramics Al2O3 96 %

C: ceramics Al2O3 99.9 %

9: customer
Special version

000: standard

999: customer
Notes

1: absolute pressure from 0.04 bar up to 0.25 bar on request and not in combination with output 0 … 10 V / 3 wire
2: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request
3: code TR0 = PVC cable, cable with ventilation tube available in different types and lengths
4: The cup nut has to be mounted by production of pressure transmitter with electrical connection field housing and mechanical connection dairy pipe. The cup nut has to be ordered as separate position.

Varivent® is a brand name of GEA Tuchenhagen GmbH
