DMK 351

The DMK 351 pressure transmitter from BD Sensors has been specifically designed for measuring small system pressure and filling heights. Thus, it is perfect for usage in plant and machine engineering as well as laboratory techniques.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DMK 351 Features

The DMK 351 pressure transmitter is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 40 mbar up to 0 ... 20 bar
  • Accuracy: 0.35 % (opt. 0.25 %) FSO
  • High media resistance.

Furthermore, the DMK 351 offers a high overpressure resistance, as well as a high temperature and media resistance. This is possible because of the specifically designed capacitive sensor available as AI2O3 99.9%.

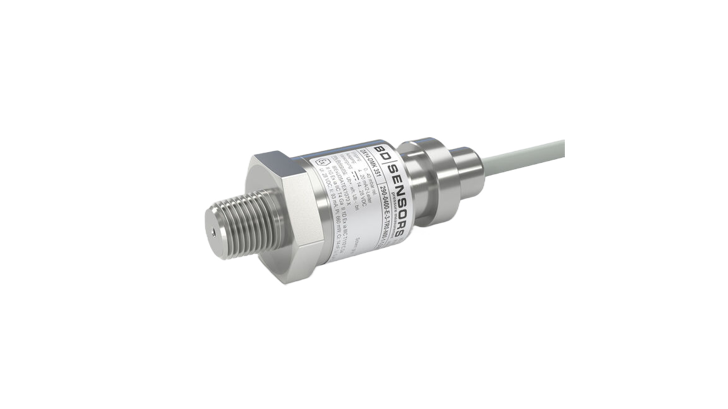

DMK351 Bdsensors 1024X16x9

Typical applications

The DMK 351 from BD Sensors is applicable in various settings including:

  • Maritime industry
  • mechanical and plant engineering
  • Energy industry
  • HVAC
  • Laboratory
  • Environmental industry.

Get more information here

Additional Available Features

If you have a specific need the DMK 351 pressure transmitter is available with optional features like:

  • IS-version (temperature class T4), Ex ia = intrinsically safe for gases and dusts
  • IS-version (temperature class T6)
  • Diaphragm 99.9 % AI2O3
  • Customer specific versions.

Moreover, the pressure transmitter is available in an intrinsically safe version so you can use it in explosive environments.

Does it match your need - contact us here

BD Sensors Logo Overview
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

290: in bar gauge

291: in bar absolute (Note 1)

292: in mH2O, gauge

Input

[mH2O]
0400: 0.4
0600: 0.6
1000: 1.0
1600: 1.6
2500: 2.5
4000: 4.0
6000: 6.0
1001: 10
1601: 16
2501: 25
4001: 40
6001: 60
1002: 100
1602: 160
2002: 200

[bar]
0400:
0.04
0600: 0.06
1000: 0.10
1600:
0.16
2500:
0.25
4000: 0.40
6000: 0.60
1001: 1.0
1601: 1.6
2501:
2.5
4001: 4.0
6001: 6.0
1002: 10
1602: 16
2002:
20
9999: customer

Output

1: 4 … 20 mA / 2-wire

3: 0 … 10 mA / 3-wire

E: intrinsic safety T4; 4 … 20 mA / 2-wire

E6: intrinsic safety T6; 4 … 20 mA / 2-wire

9: customer

Accuracy

standard
3:
0.35 % FSO

option for pN ≥ 0.6 bar
2:
0.25% FSO

9: customer

Electrical connection

100: male and female plug ISO 4400

200: male plug Binder series 723 (5-pin)

M10: male plug M12x1 (4-pin) / metal

TA0: cable outlet with PVC cable (IP67) (Note 2)

TR0: cable outlet, cable with ventilation tube (IP68) (Note 3)

850: compact field housing stainless steel 1.4301 (304)

999: customer

Mechanical connection

100: G1/2" DIN 3852

200: G1/2" EN 837

N00: 1/2" NPT

H00: G1/2" DIN 3852 open pressure port

999: customer

Seal

1: FKM

3: EPDM

9: customer

Pressure port

1: stainless steel 1.4404 (316L)

E: PP (Note 4)

B: PVDF (Note 4)

9: customer

Diaphragm

2: ceramics Al2O3 96 %

C: ceramics Al2O3 99.9 %

9: customer

Special version

000: standard

999: customer

Notes

1: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request
2: code TR0 = PVC cable, cable with ventilation tube available in different types and lengths
3: metric threads and others on request
4: possible for nominal pressure ranges p N ≤ 25 bar; absolute pressure ranges on request
5: possible for nominal pressure ranges p N ≤ 160 bar
6: PVDF only with G1/2" DIN 3852 open pressure port (up to 60 bar); permissible medium temperature: -30 … 60 °C
7: oxygen application with FKM-seal up to 25 bar possible
