DMK 331P

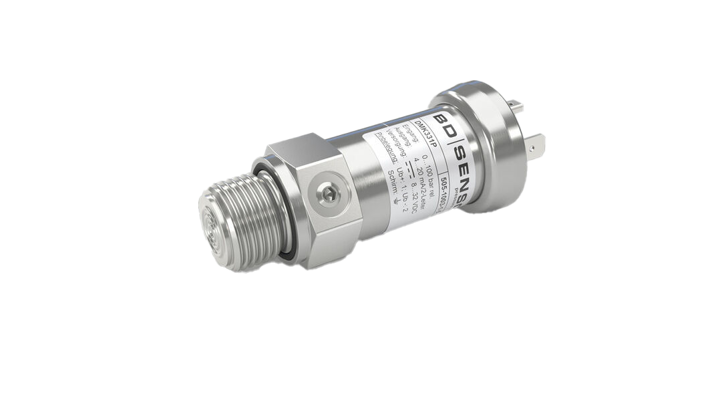

The DMK 331P pressure transmitter from BD Sensors is ideal for measuring the pressure of viscous and pasty media, where a totally flush pressure port is required. Furthermore, you can choose between a variety of electrical and mechanical connections, which ensures an exceptional adaption to the conditions of the application you need.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMK 331P pressure transmitter is precise and has the following features that benefits you:
The DMK 331P from BD Sensors is applicable in various settings including:
If you have a specific need the DMK 331P pressure transmitter is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 505: gauge 506: absolute |
||||||||||||||||||
| Input [bar] | 6002: 60 |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 2: 0 … 20 mA / 3-wire 3: 0 … 10 V / 3-wire E: intrinsic safety 4 … 20 mA / 2-wire 1S: SIL2 4 … 20 mA / 2-wire ES: SIL2 with intrinsic safety 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Accuracy | 5: 0.5 % FSO 9: customer |
||||||||||||||||||
| Electrical connection | 100: male and female plug ISO 4400 200: male plug Binder series 723 (5-pin) TA0: cable outlet with PVC-cable (IP67) (Note 1) M10: male plug M12x1 (4-pin) /metal version 850: compact field housing stainless steel1.4301 (304) 999: customer |
||||||||||||||||||
| Mechanical connection | Z00: G1/2" DIN 3852 with flush diaphragm ZS0: G3/4" DIN 3852 with flush diaphragm ZS1: G1" DIN 3852 with flush diaphragm Z61: G 1/2" DIN 3852 with rad. o-ring and flush diaphragm 999: customer |
||||||||||||||||||
| Diaphragm | 1: stainless steel 1.4435 (316L) 9: customer |
||||||||||||||||||
| Seals | 1: FKM 7: FFKM (Note 2) 9: other |
||||||||||||||||||
| Filling fluids | 1: silicone oil 2: food compatible oil 9: customer |
||||||||||||||||||
| Special version | 000: standard 200: with cooling element up to 300°C (Note 3) 999: customer |
||||||||||||||||||
| Notes | 1: nominal pressure ranges absolute from 1 bar |
||||||||||||||||||
