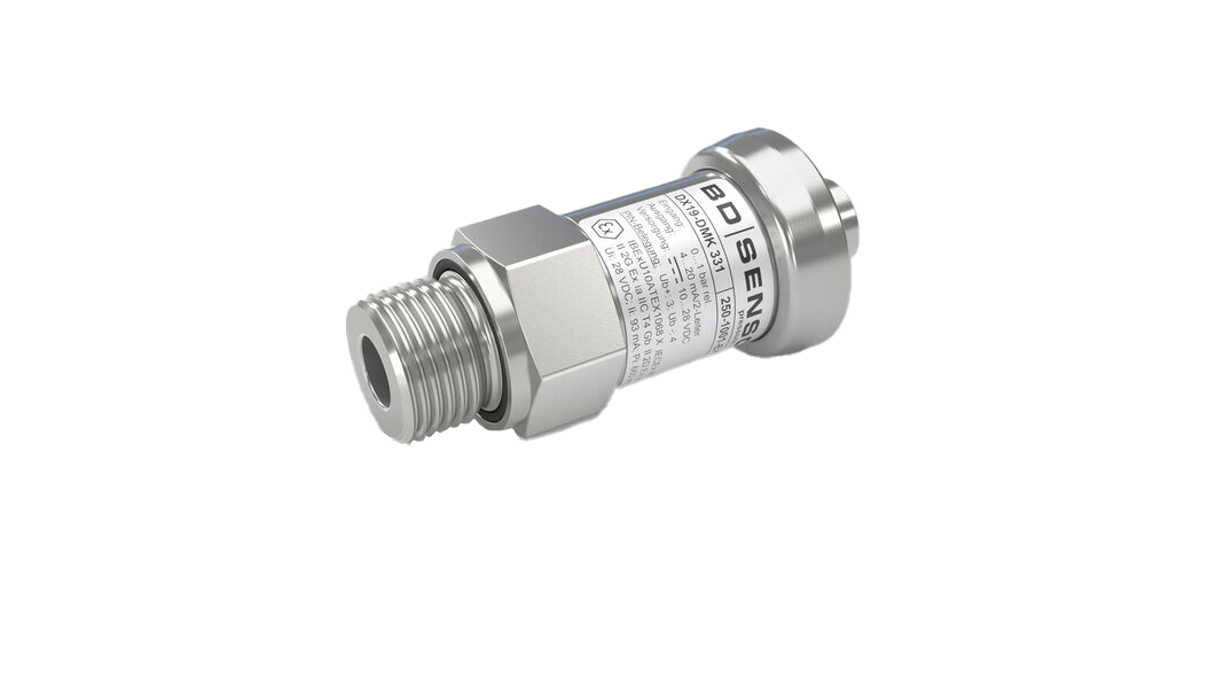

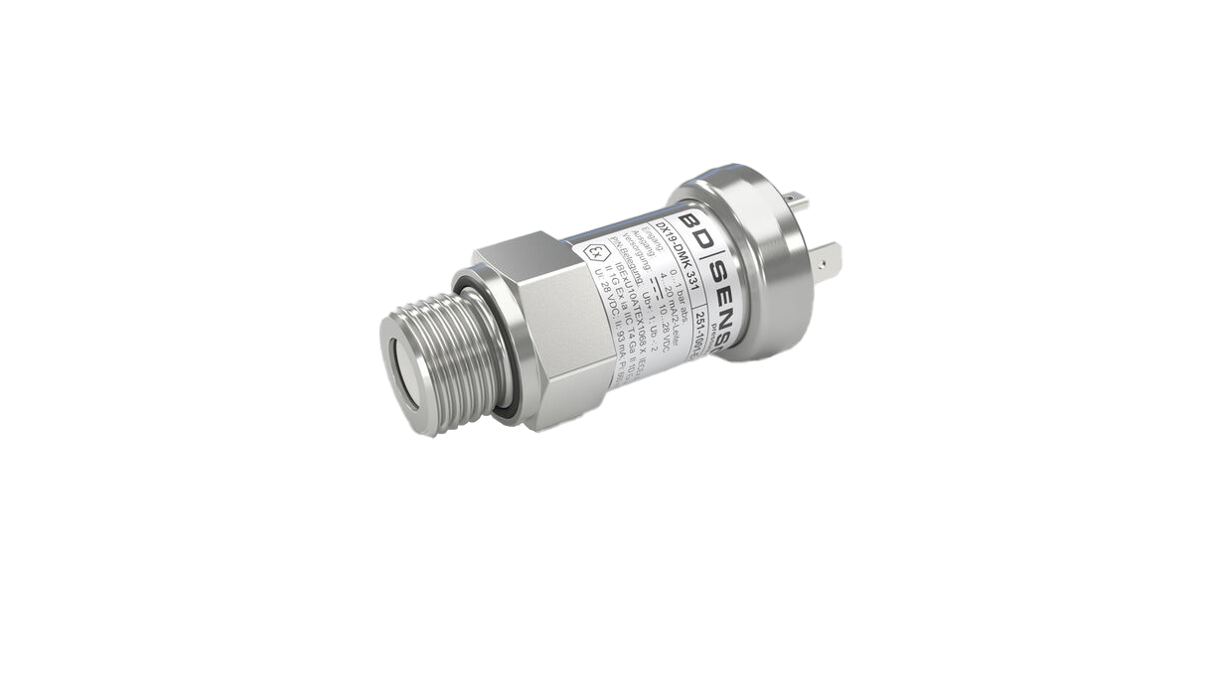

DMK 331

The DMK 331 industrial pressure transmitter from BD Sensors with ceramic sensor has been specifically designed for pasty, polluted or aggressive media as well as for oxygen applications at low pressure range.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DMK 331 Features

The DMK 331 pressure transmitter is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar
  • Accuracy: 0.5 % FSO
  • Pressure port G 1/2" flush for pasty and polluted media

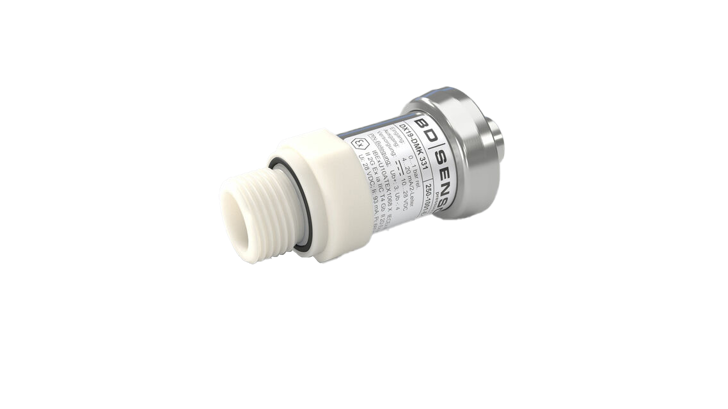

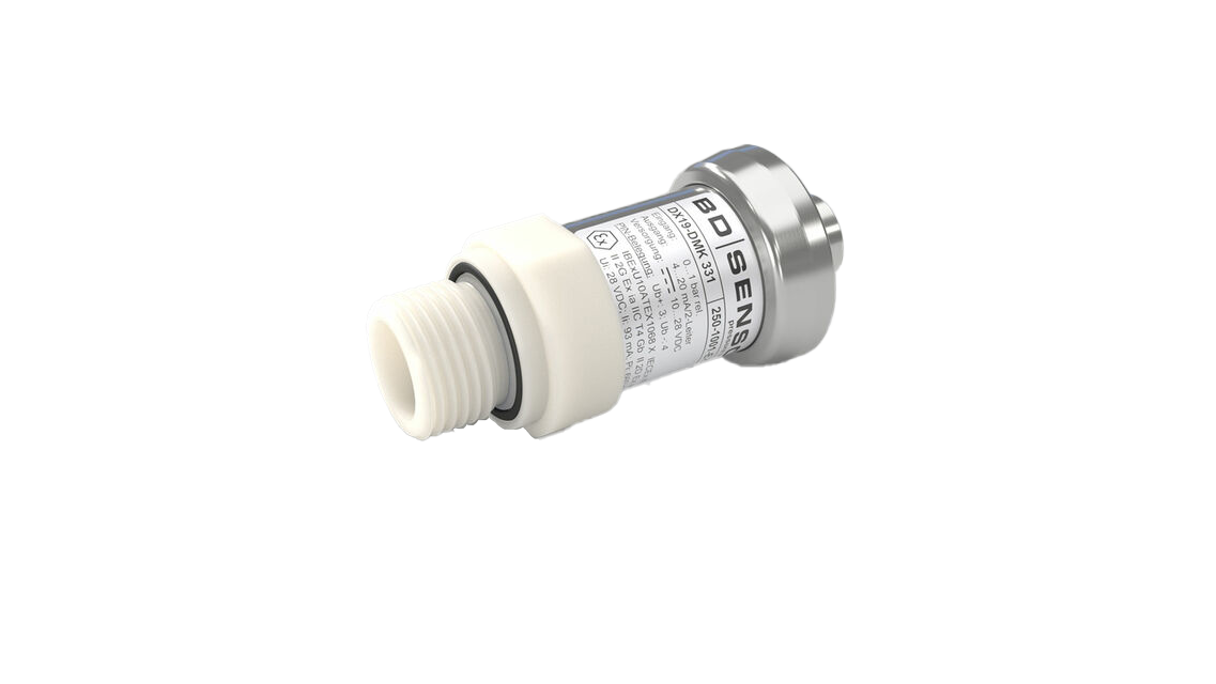

  • Pressure port G 1/2" open port PVDF for aggressive media
  • Oxygen application.

Furthermore, you can choose between a variety of different electrical and mechanical connections like all other industrial pressure transmitters from BD Sensors.

DMK331 2 Bdsensors 1024X16x9

Typical applications

The DMK 331 from BD Sensors is applicable in various settings including:

  • Maritime industry
  • Mechanical and plant engineering
  • Energy industry
  • Medical technology
  • Environmental industry.

Get more information here

Additional Available Features

If you have a specific need the DMK 331 pressure transmitter is available with optional features like:

  • IS-version, Ex ia = intrinsically safe for gases and dusts
  • SIL 2 according to IEC 61508 / IEC 61511
  • Customer specific versions.

Does it match your need - contact us here

DMK331 1 Bdsensors 1024X16x9
DMK331 Bdsensors 1024X16x9
DMK331 1 Bdsensors 1024X16x9
DMK331 2 Bdsensors 1024X16x9
DMK331 Bdsensors 1024X16x9
DMK331 1 Bdsensors 1024X16x9
DMK331 2 Bdsensors 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

250: gauge

251: absolute

Input [bar]

4000: 0.4
6000: 0.6
1001: 1.0
1601: 1.6
2501:
2.5
4001: 4.0
6000: 6.0
1002: 10
2502: 25
4002: 40
1003: 100
2503: 250
4003: 400
6003: 600
X102: -1 … 0
9999: customer

Output

1: 4 … 20 mA / 2-wire

2: 0 … 20 mA / 3-wire

3: 0 … 10 mA / 3-wire

E: intrinsic safety (ia), 4 … 20 mA / 2-wire

1S: SIL2 4 … 20 mA / 2-wire

ES: SIL2 with intrinsic safety (ia), 4 … 20 mA / 2-wire

9: customer

Accuracy

5: 0.5 % FSO

9: customer

Electrical connection

100: male and female plug ISO 4400

200: male plug Binder series 723 (5-pin)

TA0: cable outlet with PVC cable (IP67) (Note 1)

TR0: cable outlet, cable with ventilation tube (IP68) (Note 2)

M10: male plug M12x1 (4-pin) / metal

850: compact field housing stainless steel 1.4301 (304)

999: customer

Mechanical connection

100: G1/2" DIN 3852

200: G1/2" EN 837

300: G1/4" DIN 3852

400: G1/4" EN 837

F00: G1/2" DIN 3852 with semi-flush sensor (Note 4)

H00: G1/2" DIN 3852 open pressure port

N00: 1/2" NPT

N40: 1/4" NPT

999: customer

Seals

1: FKM

3: EPDM (Note 5)

9: customer

Pressure port

1: stainless steel 1.4404 (316L)

B: PVDF (Note 6)

9: customer

Diaphragm

2: ceramics Al2O3 96 %

9: customer

Special version

000: standard

007: oxygen application (Note 7)

999: customer

Notes

1: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request
2: code TR0 = PVC cable, cable with ventilation tube available in different types and lengths
3: metric threads and others on request
4: possible for nominal pressure ranges p N ≤ 25 bar; absolute pressure ranges on request
5: possible for nominal pressure ranges p N ≤ 160 bar
6: PVDF only with G1/2" DIN 3852 open pressure port (up to 60 bar); permissible medium temperature: -30 … 60 °C
7: oxygen application with FKM-seal up to 25 bar possible
