DCT 532

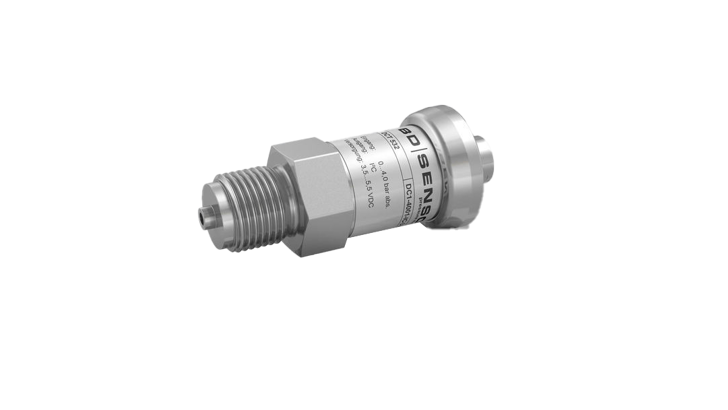

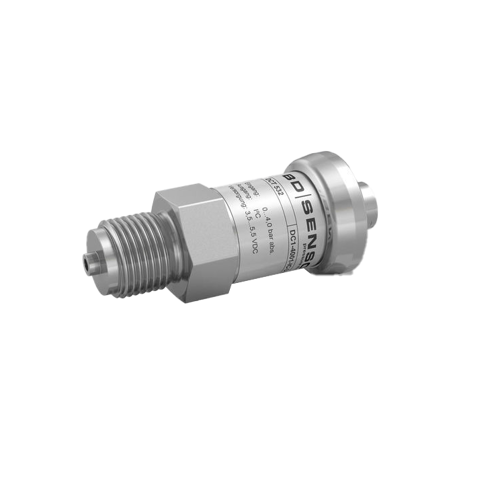

The DCT 532 pressure transmitter from BD Sensors has a digital i²C-interface, which makes it possible for you to use up to 127 devices at one master. Additionally, it is possible to do special parametrization for one pressure unit and more.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DCT 532 pressure transmitter is precise and has the following features that benefits you:
The DCT 532 from BD Sensors is applicable in various settings:
This transmitter is produced in high-quality materials and components, which makes it suitable for a huge variety of industrial applications, as longs as you can use stainless steel 316L.
If you have a specific need the DCT 532 pressure transmitter is available with optional features like:
The transmitter is using a modular concept, which makes it possible for you to customized electrical or mechanical connections. Thus, the DCT 532 is easily adapting to various conditions on-site.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | DC0: gauge DC1: absolute (Note 1) |
||||||||||||||||||
| Input [bar] | 1000: 0.10 (Note 1) |
||||||||||||||||||
| Output | IC: i²C |
||||||||||||||||||
| Accuracy | 2: 0.25% FSO 9: customer |
||||||||||||||||||
| Electrical connection | N11: male plug M12x1 (5-pin) / metal 207: male plug Binder series 723 (5-pin) 999: customer |
||||||||||||||||||
| Mechanical connection | 100: G1/2" DIN 3852 200: G1/2" EN 837 300: G1/4" DIN 3852 400: G1/4" EN 837 F00: G1/2" DIN 3852 with semi-flush sensor (Note 2) H00: G1/2" DIN 3852 open pressure port (Note 2) N00: 1/2" NPT N40: 1/4" NPT 999: customer
|
||||||||||||||||||
| Seal | 1: FKM 3: EPDM 2: without (welded version) (Note 3) 9: customer |
||||||||||||||||||
| Special version | 111: standard 999: customer |
||||||||||||||||||
| Notes | 1: absolute pressure possible from 0.4 bar 2: not possible for nominal pressure pN > 40 bar 3: welded version only with pressure ports according to EN 837, possible for pN ≤ 40 bar |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
