DCT 531

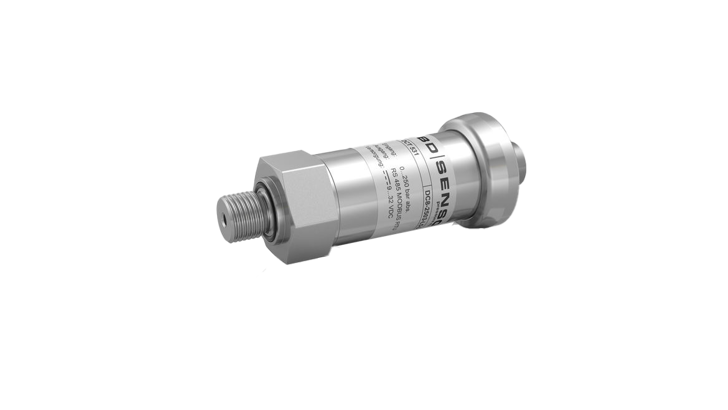

The DCT 531 is a pressure transmitter from BD Sensors comes with the RS485 interface, which uses the communication protocol Modbus RTU. Moreover, the transmitter is produced in high-quality materials and components.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DCT 531 pressure transmitter is precise and has the following features that benefits you:
The transmitter comes with the RS485 interface, as mentioned above, which uses the communication protocol Modbus RTU. This is a open protocol used in industrial communication, which is based on a mater Slave architecture, where data is being transferred in binary form.
The DCT 531 from BD Sensors is applicable in various settings:
This transmitter is produced in high-quality materials and components, which makes it suitable for a huge variety of industrial applications, as longs as you can use stainless steel 316L.
If you have a specific need the DCT 531 pressure transmitter is available with optional features like:
The transmitter is using a modular concept, which makes it possible for you to customized electrical or mechanical connections. Thus, the DCT 531 is easily adapting to various conditions on-site.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | DC7: gauge DC8: absolute |
||||||||||||||||||
| Input [bar] | 1000: 0.10 (Note 1) |
||||||||||||||||||
| Output | L5: RS485 Modbus RTU |
||||||||||||||||||
| Accuracy | 2: 0.25% FSO 9: customer |
||||||||||||||||||
| Electrical connection | N11: male plug M12x1 (5-pin) / metal 999: customer |
||||||||||||||||||
| Mechanical connection | 100: G1/2" DIN 3852 200: G1/2" EN 837 300: G1/4" DIN 3852 400: G1/4" EN 837 F00: G1/2" DIN 3852 with semi-flush sensor (Note 2) H00: G1/2" DIN 3852 open pressure port (Note 2) N00: 1/2" NPT N40: 1/4" NPT 999: customer
|
||||||||||||||||||
| Seal | 1: FKM 3: EPDM 2: without (welded version) (Note 3) 9: customer |
||||||||||||||||||
| Special version | 111: standard 999: customer |
||||||||||||||||||
| Notes | 1: absolute pressure possible from 0.4 bar 2: not possible for nominal pressure pN > 40 bar 3: welded version only with pressure ports according to EN 837, possible for pN ≤ 40 bar |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
