DM 01

The digital pressure gauge DM 01 from BD Sensors is a precision that is specifically designed for process monitoring and calibration. Moreover, the battery-powered DM 01 can be used e.g., for controlling pressure courses or calibrating pressure transmitters.

Characteristics of the DM 01 include:

  • Outstanding measuring qualities
  • Intuitive operation.
  • Innovative, modular sensor concept.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DM 01 Features

The DM 01 digital pressure gauge has the following features that benefit you:

  • Nominal pressure: 0 ... 100 mbar up to 0 ... 400 bar
  • Accuracy: 0.05 % FSO BFSL (class 0.05)
  • Modular sensor concept
  • Graphics-capable display
  • Background illumination
  • Communication interface USB 2.0
  • Stainless steel housing d = 100 mm
  • Zero-point calibration
  • Data logger.

The last mentioned data logger is integrated and able to record pressure and temperature values linearly and cyclically, which can be analyzed with the software BD|LOG.

Furthermore, one of the big advantages of the digital display DM 01 is that different pressure transmitters can be used for various measurement ranges. Thus, the pressure transmitter can be selected and easily exchanged for the required pressure range on site. This can be done without tools or parameter settings.

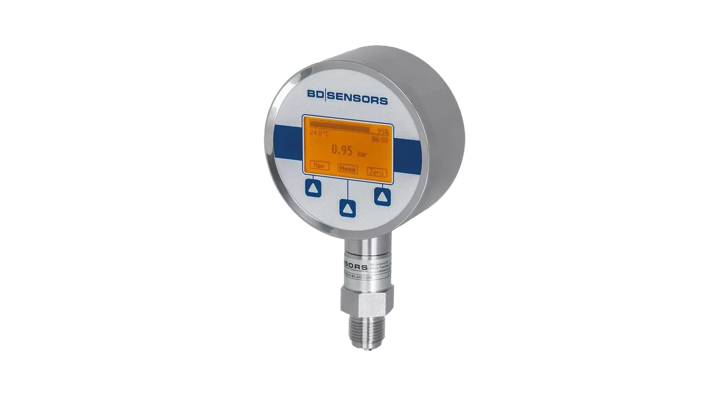

DM01 Bdsensors 1024 16X9

Typical applications

The DM 01 from BD Sensors is applicable in various settings:

  • Maritime industry
  • Mechanical and plant engineering
  • Laboratory.

Moreover, the digital pressure gauge can be used in various media including water and gases.

Get more information here

Additional Available Features

If you have a specific need the DM 01 digital pressure gauge is available with optional features like:

  • Accredited calibration certificate according to DKD / DAkkS
  • IS-version zone 1
  • Service case with accessories
  • Software incl. USB converter.

Does it match your need - contact us here

DM01 1 Bdsensors 1024 16X9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type: 2. Position: Transmitter
Pressure

M0K: gauge

M0L: absolute (Note 1)

Input [bar]

1000: 0.10 (Note 1)
1600:
0.16 (Note 1)
2500:
0.25 (Note 1)
4000: 0.40
6000: 0.60
1001: 1.0
1601: 1.6
2501:
2.5
4001: 4.0
6001: 6.0
1002: 10
1602: 16
2502:
25
4002: 40
6002:
60
1003:
100
1603:
160
2503:
250
4003:
400
X102:
-1 ... 0
9999:
 customer

Version

0: standard version (without explosion protection)

E: IS-version

Accuracy

standard for pN ≥ 0,4 bar
B1:
0.05 % FSO

standard for pN < 0.4 bar
B2: 0.125% FSO

99: customer

Mechanical connection

100: G1/2" DIN 3852

200: G1/2" EN 837

300: G1/4" DIN 3852

400: G1/4" EN 837

F00: G 1/2" DIN 3852 with flush sensor (Note 2)

H00: G1/2" DIN 3852 open pressure port (Note 2)

N00: 1/2" NPT

N40: 1/4" NPT

999: customer

Seals

1: FKM

9: customer

Special version

000: standard

999: customer

Accessories

ZUSBCD01: USB converter (incl. software DAQ on USB stick)

Service_Case_DM01: service case (without accessories)

Z1002648: Protective cap

1002798: additional batteries (3 x 1.5 V / AA Duracell Power Plus) (Note 3)

5008886: Seal set (Note 3)

1002724: PTFE seal tape (Note 3)

1002722: wrench (Note 3)

1002637: calibration test pump (KHP)



Notes

1: absolute pressure possible from 0.4 bar

2: only possible for pN ≤ 40 bar

3: only in combination with the service case.

  • Data Sheet - DM 01 - BD Sensors
    English | pdf
  • Owners Manual - DM 01 - BD Sensors
    English | pdf
  • Owners Manual - IS version - DM 01 - BD Sensors
    English | pdf
  • Owners Manual - Installation Manual - DM 01 - BD Sensors
    English | pdf
  • Certificate - Conformity Declaration - DM 01 - BD Sensors
    English | pdf
  • Certificate - IBExU - DM 01 - BD Sensors
    English | pdf
