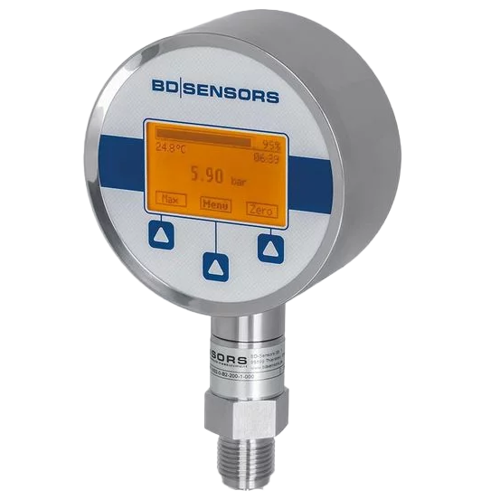

DL01 BD Sensors 1 1

DL 01

The DL 01 from BD Sensors is a battery-powered digital pressure indicator with a stainless steel sensor, offering precision, flexibility, and reliability even in the most demanding applications. The manometer is designed with a focus on user-friendliness and advanced technology.

Characteristics of the DL 01 include:

  • Consists of two devices - the digital display and the pressure transmitter.
  • Intuitive operation.
  • Innovative, modular sensor concept
  • Designed for leak testing or pipeline monitoring

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DL 01 Features

The DL 01 digital pressure gauge has the following features that benefit you:

  • Nominal pressure: 0 ... 100 mbar up to 0 ... 400 bar
  • Accuracy: 0.05 % FSO BFSL (class 0.05)
  • Modular sensor concept
  • Graphics-capable display
  • Communication interface USB 2.0
  • Stainless steel housing d = 100 mm
  • Data logger

The DL 01 is characterized by exceptional measurement qualities, intuitive operation, and an integrated data logger that accurately measures and records data. The graphic display ensures easy handling and a clear presentation of the measurement procedure.

Collected data and relevant information (e.g., TAG or serial number) are recorded and can be read and processed via the integrated USB interface and PC software.

The DL 01 digital pressure gauge is engineered for efficiency, boasting an impressive battery life that ensures long-lasting performance. With its low power consumption, the DL 01 provides extended operational periods, making it an ideal solution for maritime companies seeking reliable and continuous fuel flow measurement and performance management.

Need more information? Contact us here

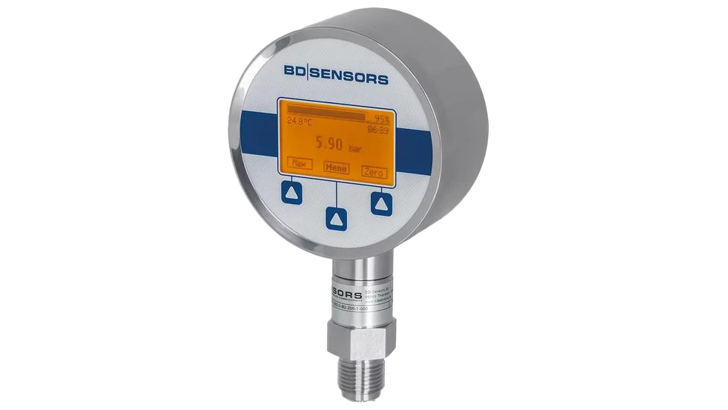

DL01 BD Sensors 16 9

Typical applications

The DL 01 from BD Sensors is applicable in various settings:

  • Maritime industry
  • Mechanical and plant engineering
  • Calibration technique
  • Laboratory

Additionally, the digital pressure indicator can be used for various media, including water and gases. It is specifically developed for leak testing and pipeline monitoring.

Get more information here

Additional Available Features

If you have a specific need the DL 01 digital pressure gauge is available with optional features like:

  • Data logger interval: 1 second to 99 days or fixed time
  • Standard values for time/test duration
  • Zero point calibration
  • Software including USB converter
  • Backlighting and much more

Does it match your need - contact us here

DL01 BD Sensors 16 9

Easy Integration and User-Friendliness

The DL 01 pressure gauge is a instrument equipped with an integrated USB 2.0 communication interface, making it easy to transfer data to a PC for further analysis. The included software enables a simple calibration process and the ability to set specific goals and collection times, allowing customization of the units for specific purposes.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type: 2. Position: Transmitter
Pressure

M0P: gauge

M0Q: absolute (Note 1)

Input [bar]

1000: 0.10 (Note 1)
1600:
0.16 (Note 1)
2500:
0.25 (Note 1)
4000: 0.40
6000: 0.60
1001: 1.0
1601: 1.6
2501:
2.5
4001: 4.0
6001: 6.0
1002: 10
1602: 16
2502:
25
4002: 40
6002:
60
1003:
100
1603:
160
2503:
250
4003:
400
X102:
-1 ... 0
9999:
 customer

Version

0: standard version (without explosion protection)

E: IS-version

Accuracy

standard for pN ≥ 0,4 bar
B1:
0.05 % FSO

standard for pN < 0.4 bar
B2: 0.125% FSO

99: customer

Mechanical connection

100: G1/2" DIN 3852

200: G1/2" EN 837

300: G1/4" DIN 3852

400: G1/4" EN 837

F00: G 1/2" DIN 3852 with flush sensor (Note 2)

H00: G1/2" DIN 3852 open pressure port (Note 2)

N00: 1/2" NPT

N40: 1/4" NPT

999: customer

Seals

1: FKM

9: customer

Special version

000: standard

999: customer

Accessories

ZUSBCD01: USB converter (incl. software DAQ on USB stick)

Service_Case_DM01: Service case (without accessories)

Z1002648: Protective cap

1002798: Additional batteries (3 x 1.5 V / AA Duracell Power Plus) (Note 3)

5008886: Seal set (Note 3)

1002724: PTFE seal tape (Note 3)

1002722: Wrench (Note 3)

1002637: Calibration test pump (KHP 4002)



Notes

1: absolute pressure possible from 0.4 bar

2: only possible for pN ≤ 40 bar

3: only in combination with the service case

  • Data Sheet - DL 01 - BD Sensors
    English | pdf
  • Owners Manual - DL 01 - BD Sensors
    English | pdf
  • Certificate - Conformity Declaration - DL 01 - BD Sensors
    English | pdf
