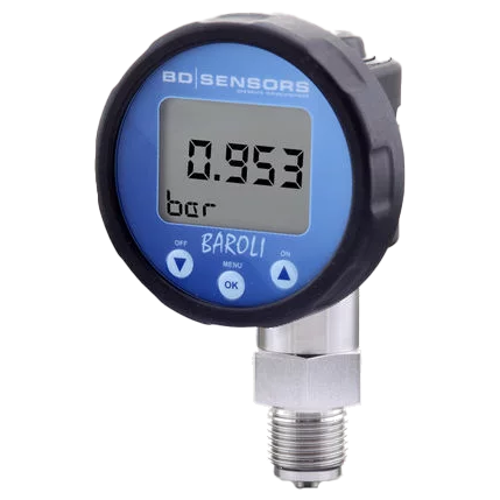

BAROLI05 BD Senors Square

BAROLI 05

The digital pressure gauge BAROLI 05 from BD Sensors features a ceramic sensor and is available with various mechanical connections, including inch and NPT threads. It is suitable for measuring pressure in liquids, oil, and gas.

Advantages of the BAROLI 05 include:

  • Versatile
  • High precision
  • Robustness

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard BAROLI 05 Features

BAROLI 05 is a digital pressure gauge with the following features:

  • Nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar
  • Accuracy: 0.25% FSO BFSL (class 0.2)
  • Ceramic sensor
  • IP65
  • Various mechanical connections: inch and NPT threads
  • Rotatable housing for easy reading even under unfavorable mounting conditions
  • Zero point calibration
  • Battery-powered

Typical Applications

BAROLI 05 is suitable for plant engineering, laboratory technology, pneumatic/hydraulic systems, and environmental technology, and can be used to measure pressure in liquids, oils, and gases.

Need more information? Contact us here

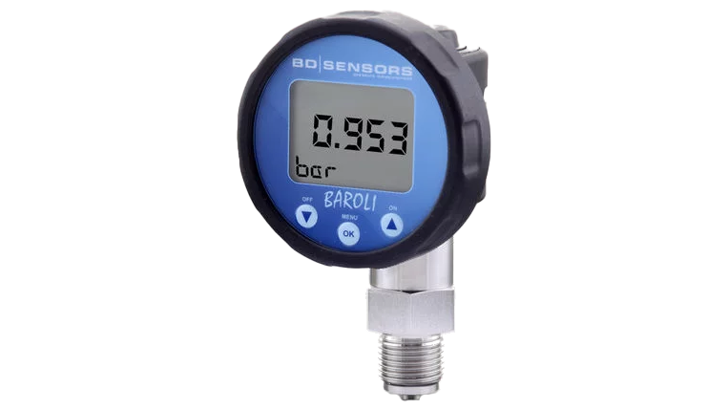

BAROLI05 BD Senors 16 9

Additional Available Features

BAROLI 05 is also available with optional features such as:

  • Min/max function with reset
  • Offset and endpoint calibration
  • Pressure unit setting
  • Automatic shut-off


Exactly what you need? Contact us here

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type: 2. Position: Transmitter
Pressure

M00: gauge

M01: absolute

Input [bar]

4000: 0.40
6000: 0.60
1001: 1.0
1601: 1.6
2501:
2.5
4001: 4.0
6001: 6.0
1002: 10
1602: 16
2502:
25
4002: 40
6002:
60
1003:
100
1603:
160
2503:
250
4003:
400
6003: 600
X102:
-1 ... 0
9999:
 customer

Accuracy [BFSL]

B5: 0.25%

99: customer

Mechanical connection

200: G1/2" EN 837

400: G1/4" EN 837

N00: 1/2" NPT

N40: 1/4" NPT

999: customer

Seals

1: FKM

9: customer

Pressure port

1: Stainless steel 1.4404 (316L)

9: Customer

Diaphragm

2: ceramics Al2O3 96%

9: Customer

Front foil

1: Standard

N: Neutral

9: Customer



Special version

000: standard

999: customer
