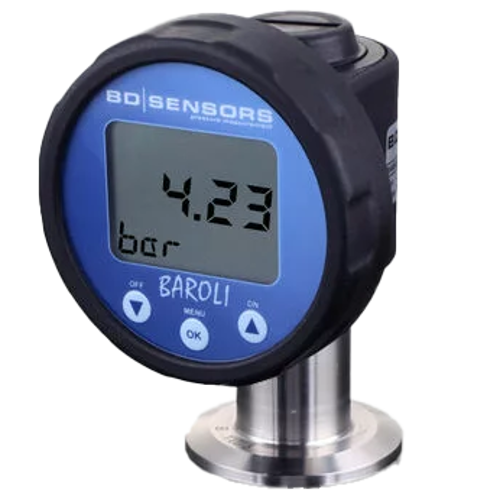

BAROLI02P BD Sensors Square

BAROLI 02P

The digital pressure gauge BAROLI 02P from BD Sensors features a flush welded stainless steel diaphragm and is designed for applications with high hygiene and sterilization requirements, where hygiene and easy cleaning are crucial.

Advantages of the BAROLI 02P include:

  • Suitable for hygienic processes
  • High precision
  • Easy cleaning

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard BAROLI 02P Features

The BAROLI 02P is a digital pressure gauge with the following features:

  • Nominal pressure: 0 ... 100 mbar up to 0 ... 40 bar
  • Accuracy: 0.125% FSO BFSL (class 0.1)
  • Stainless steel sensor (flush)
  • IP65
  • Hygienic process connections
  • Rotatable housing for easy reading even under unfavorable mounting conditions
  • Zero point calibration
  • Battery-powered

Typical Applications

The BAROLI 02P, with a flush-welded stainless steel diaphragm and FDA-approved oil, is designed for food and pharmaceutical applications. The rotatable display and hygienic process connections ensure easy cleaning and sterilization.

Need more information? Contact us here

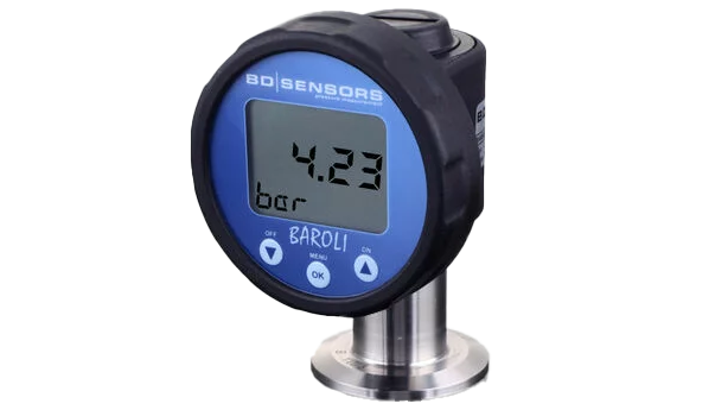

BAROLI02P BD Sensors 16 9

Additional available features

The BAROLI 02P is available with optional features such as:

  • Min/max function with reset
  • Offset and endpoint calibration
  • Pressure unit setting
  • Automatic shut-off

Additionally, this digital pressure gauge is available with an EHEDG certificate, which could be relevant if your maritime operations involve food processing or pharmaceutical transport.

Does it match your need - contact us here

Which Pressure Gauge Should I Choose?

Choosing the right pressure gauge for an application can be crucial to ensuring accuracy and reliability in your measurement process. Contact us today and let us help you select the perfect pressure gauge that meets your specific requirements and guarantees the best results.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type: 2. Position: Transmitter
Pressure

M0G: gauge

M0H: absolute (Note 1)

Input [bar]

1000: 0.10 (Note 1)
1600:
0.16 (Note 1)
2500:
0.25 (Note 1)
4000: 0.40
6000: 0.60
1001: 1.0
1601: 1.6
2501:
2.5
4001: 4.0
6001: 6.0
1002: 10
1602: 16
2502:
25
4002: 40
X102:
-1 ... 0
9999:
 customer

Accuracy [BFSL]

standard for pN ≥ 0.4 bar
B2: 0.125% FSO

standard for pN < 0,4 bar
B5: 0.250 % FSO

99: customer

Mechanical connection

Z00: G1/2" DIN 3852 with flush diaphragm (See note 2)

ZS1: G1" DIN 3852 with flush diaphragm

C62: Clamp 1 1/2" (DIN 32676) (See note 3)

M73: dairy pipe DN 25 (DIN 11851) (See note 4 and 5)

999: customer

Seals

0: without (for clamp or dairy pipe)

1: FKM

9: customer

Diaphragm

1: Stainless steel 1.4404 (316L)

9: Customer

Front foil

1: Standard

N: Neutral

9: Customer



Filling fluids

1: silicone oil

2: food compatible oil

9: Customer

Special version

000: standard

999: customer

Notes

1: absolute pressure possible from 0.4 bar

2: possible only for pN ≥ 1 bar

3: possible only for pN ≤ 16 bar

4: possible only for pN ≥ 0.25 bar; cup nut for dairy pipe included and pre-assembled

5: The cup nut has to be mounted by production of pressure gauge. The cup nut has to be ordered as separate position
