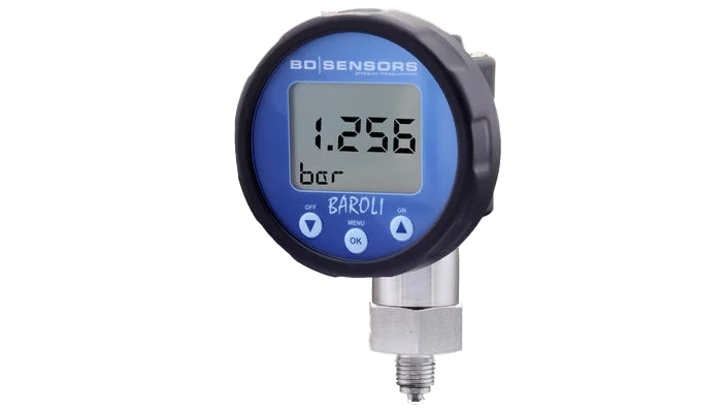

BAROLI 02

The digital pressure gauge BAROLI 02 from BD Sensors features a stainless steel sensor and a robust construction with high overpressure protection. It is suitable for applications requiring high precision, accuracy, and long-term stability.

Advantages:

  • High precision
  • Robust construction
  • Flexibility

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard BAROLI 02 Features

BAROLI 02 is a digital pressure gauge with the following features and specifications:

  • Nominal pressure: 0 ... 100 mbar up to 0 ... 600 bar
  • Accuracy: 0.125% FSO BFSL (class 0.1)
  • Stainless steel sensor
  • IP65 rotection class, making it dust-tight and protected against water jets
  • Various mechanical connections: inch and NPT threads
  • Rotatable housing for easy reading even under unfavorable mounting conditions
  • Zero point calibration
  • Battery-powered by a 3V lithium battery

Typical Applications

BAROLI 02 is suitable for use in plant engineering, laboratories, and environmental engineering, and can handle media such as:

  • Fuel & oil
  • Water
  • Gases
Contact us for more information
BAROLI02 01 BD Sensors 16 9

Additional Available Features

BAROLI 02 is available with optional features such as:

  • Min/max function with reset
  • Offset and endpoint calibration
  • Pressure unit setting
  • Automatic shutdown

This battery-powered digital manometer, also referred to as a digital pressure gauge, allows for local display of values, meeting the highest requirements for accuracy and long-term stability.

Get a qoute for BAROLI 02

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type: 2. Position: Transmitter
Pressure

M0E: gauge

M0F: absolute (Note 1)

Input [bar]

1000: 0.10 (Note 1)
1600:
0.16 (Note 1)
2500:
0.25 (Note 1)
4000: 0.40
6000: 0.60
1001: 1.0
1601: 1.6
2501:
2.5
4001: 4.0
6001: 6.0
1002: 10
1602: 16
2502:
25
4002: 40
6002:
60
1003:
100
1603:
160
2503:
250
4003:
400
6003: 600
X102:
-1 ... 0
9999:
 customer

Accuracy

standard for pN ≥ 0.4 bar
B2: 0.125% FSO

standard for pN < 0,4 bar
B5: 0.250 % FSO

99: customer

Mechanical connection

200: G1/2" EN 837

400: G1/4" EN 837

N00: 1/2" NPT

N40: 1/4" NPT

999: customer

Seals

1: FKM

9: customer

Pressure port

1: Stainless steel 1.4404 (316L)

9: Customer

Diaphragm

1: Stainless steel 1.4404 (316L)

9: Customer

Front foil

1: Standard

N: Neutral

9: Customer



Special version

000: standard

999: customer

Notes

1: absolute pressure possible from 0.4 bar

  • Data Sheet - BAROLI 02 - BD Sensors
    English | pdf
  • Owners Manual - BAROLI 02- BD Sensors
    English | pdf
  • Owners Manual - Installation Manual - BAROLI 02 - BD Sensors
    English | pdf
  • Certificate - Conformity Declaration - BAROLI 02 - BD Sensors
    English | pdf
