VEGAWELL 52

VEGAWELL 52 is a suspended pressure transmitter with advanced ceramic membrane for level measurement. Typical applications are measurements in water/waste water, deep wells and in the shipbuilding industry.

Maximum cable length = 1000 m

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

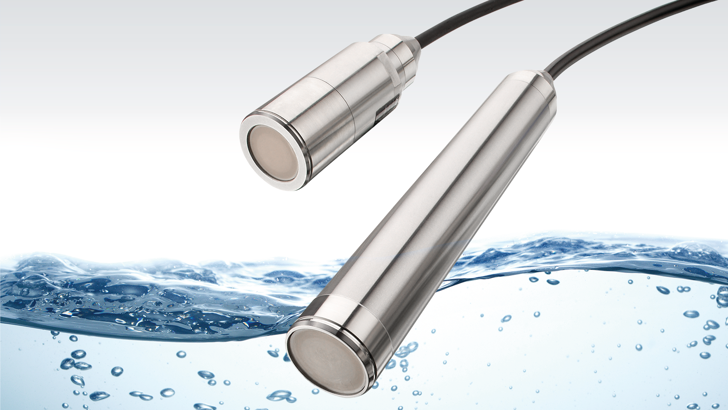

Insatech Weel 52 Med Vand

Benefits with WEGAWELL 52

  • Robust construction of both pressure cell, cable and housing.
  • Reliable, durable and robust, seawater-resistant sensors.
  • Available with ATEX approval as well as ship approval.
  • Possibility of HART® and built-in Pt100 temperature sensor.
  • Simple insatllation from above or the side.
  • High overload safety.
  • Integrated overvoltage protection.
  • Can be used in deep wells etc.
  • Measuring cell in CERTEC®.

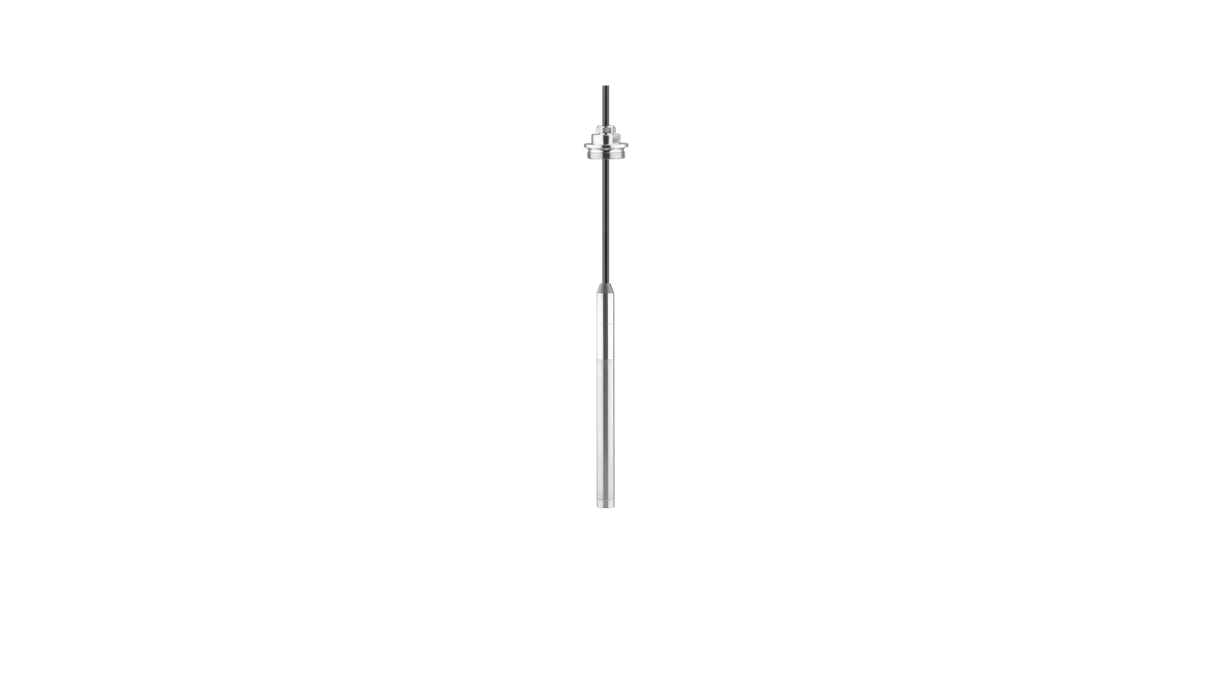

Insatech VEGAWELL 52 2

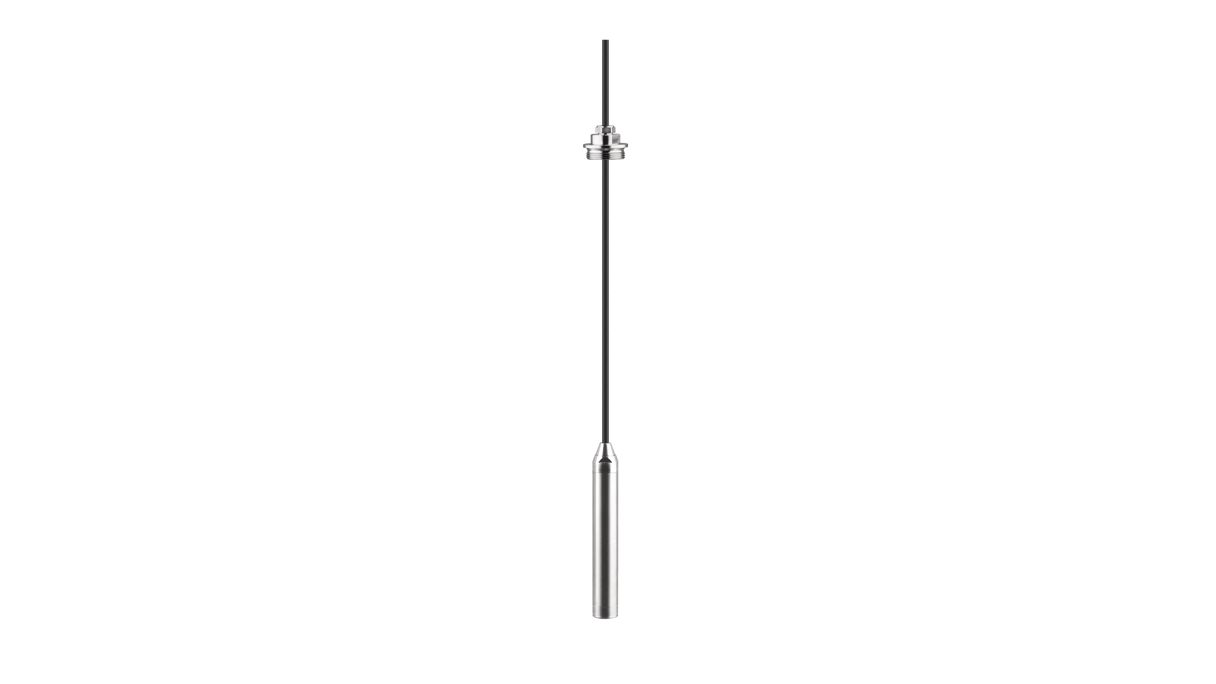

Insatech VEGAWELL 52 1
Insatech VEGAWELL 52 3
Insatech VEGAWELL 52 2
Insatech VEGAWELL 52 1
Insatech VEGAWELL 52 3

CERTEC® measuring cell

Sensor element is the well-known CERTEC® measuring cell with a robust ceramic membrane, which VEGA itself has developed in their own laboratory.
Process pressure creates a capacity change in the measuring cell via the ceramic membrane, which is subsequently converted to an analog output signal.
The CERTEC® measuring cell is an oil-free measuring cell and can withstand large mechanical stresses.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Pressure

0 ... 60 bar

Process temperature

-20 ... 80 °C

Accuracy

0.1 %

Output
  • 4 … 20 mA
  • 4 … 20 mA/HART - two-wire
Protection rating
  • IP66/IP67
  • IP68
Ambient temperature

-40 ... 80 °C

Specifications & Manuals

  • Manual - VEGAWELL 52 - 4...20 mA
    English | pdf
  • Specification sheet - VEGAWELL 52 - 4...20 mA
    English | pdf
  • Product information - VEGA Submersible pressure transmitters
    English | pdf
  • Brochure - Level and pressure instrumentation for ships - VEGA
    English | pdf
