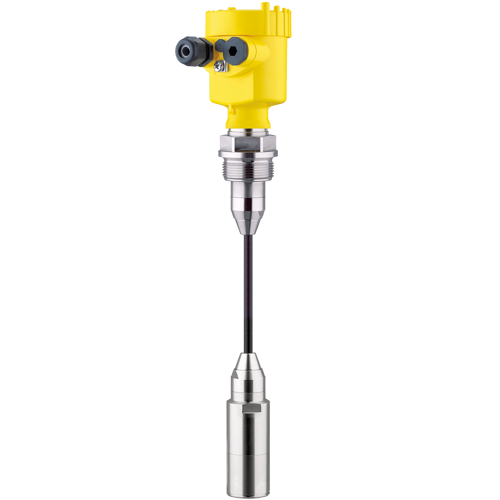

VEGABAR 87 is a suspended pressure transmitter for level measurement. Available in different versions with stainless steel cable or pipe. Used for level measurement of fluids in wells, basins or open tanks.
Maximum sensor length: Cable 250 m, tube 6 m
For sales or commercial inquiries please contact us at marine@insatech.com.
With the VEGABAR 80 series it is possible to make an electronic differential pressure measurement. The pressure transmitters in the VEGABAR 80 series can be ordered with a slave electronics which can be directly connected to a standard VEGABAR 80 series pressure transmitter, whereby the 2 pressure transmitters now act as a differential pressure transmitter.
Sensor element is the well-known METEC® measuring cell with a Hastelloy C membrane, which VEGA itself has developed in their own laboratory.
Process pressure creates a capacity change in the measuring cell via the metal membrane and the oil filling, which is subsequently converted to an analog output signal.
The METEC® measuring cell can withstand large mechanical stresses and has excellent self-compensating properties.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range - Pressure | 0 ... 25 bar |
||||||||||||||||||
| Process temperature | -12 ... 100 °C |
||||||||||||||||||
| Process pressure | 0 ... 25 bar |
||||||||||||||||||
| Accuracy | 0.1 % |
||||||||||||||||||
| Output |
|
||||||||||||||||||
| Protection rating |
|
||||||||||||||||||
| Ambient temperature | -40 ... 80 °C |
||||||||||||||||||
| Materials, wetted parts |
|
|---|---|
| Seal material | No media contact |
| Housing material |
|
| Threaded connection |
|
|---|---|
| Flange connection |
|
| Scope |
|
|---|---|
| Explosion protection |
|
| Foodstuffs/Pharma | FDA |
| Ship approval |
|
| Overfill protection |
|
| SIL qualification | SIL2 |
