Insatech Eja120e 1 Intro

Standard differential pressure transmitter with digital silicon resonance sensor, ensuring high accuracy, great turndown and excellent long-term stability.

  • Measuring ranges from 5 mbar to 140 bar distributed over 5 different measuring cells
  • Max. overpressure up to 160 bar
  • Accuracy ± 0.055% of span

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

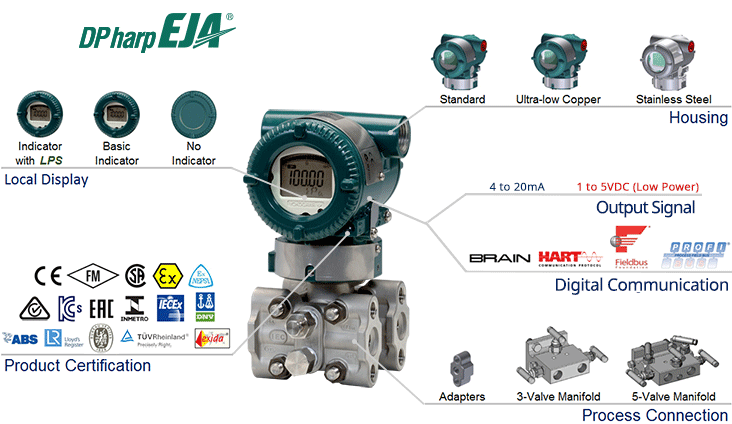

Yokogawa High-performance DPharp EJA110E

EJA110E is used for applications with differential pressure measurement, level measurements, flow measurements and low relative pressure.

Yokogawa standard-performance DPharp EJA110E

Insatech can offer a wide range of manifolds as well as stakes.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Type

Differential pressure transmitter

Measuring range

Measuring ranges from 5 mbar to 140 bar distributed over 5 different measuring cells

Pressure

Max. overpressure up to 160 bar

Output

Output signal two-conductor 4 - 20 mA DC with digital communication, linear or square root output

Accuracy

Accuracy ± 0.055% of span

Power Supply Effects

(Output signal code D and J)
±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)

Communication
  • BRAIN or HART protocol overlaid in 4 - 20 mA signal
  • Opportunity for the Fieldbus Foundation and Profibus PA
Certifications
  • Marine: LR, ABS, BV and DNV-GL
  • ATEX, FM, CA, IECEx
  • TUV SIL2 / SIL3

Specifications & Manuals

  • Yokogawa - Brochure DPharp EJX/EJA
    English | pdf
  • Yokogawa - General specifications EJA110E
    English | pdf
  • Yokogawa - Manual DPHarp HART 5 / 7 Communication Type
    English | pdf
  • Yokogawa - Manual DPHarp BRAIN Communication Type
    English | pdf
