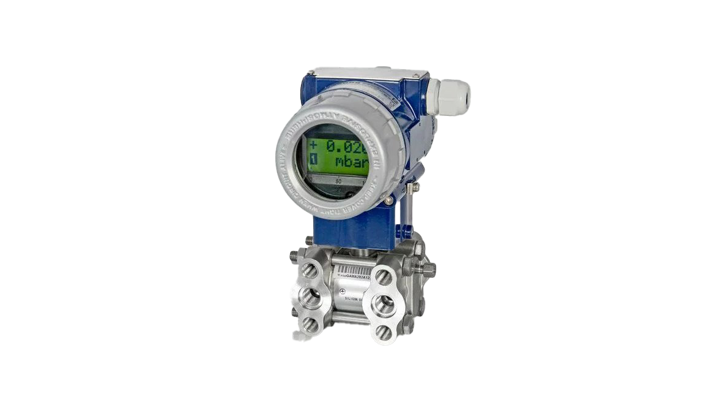

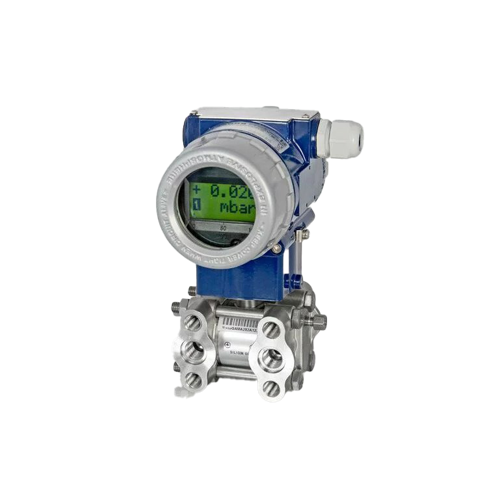

DPT 200
The differential pressure transmitter DPT 200 from BD Sensors is designed to measure level in closed, pressurized tanks, pump or filter controlling, etc. The transmitter has various pressure seals available, as well as a variety of membrane materials, which makes the DPT 200 reach an optimal adaption to many applications.
For sales or commercial inquiries please contact us at marine@insatech.com.
-
The DPT 200 pressure transmitter has the following features that benefits you:
The DPT 200 from BD Sensors is applicable in various settings:
Moreover, the differential pressure transmitter can be used in various media including water, fuels, and oils.
If you have a specific need the DPT 200 pressure transmitter is available with optional features like LC display and stainless-steel housing. Additionally, it is available in the following versions.
Ex-version group I:
Ex-version group II:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 343: differential pressure |
||||||||||||||||||
| Input [bar] | type A type B type C type D type E 9: customer |
||||||||||||||||||
| Maximun static pressure | 7: 70 bar (only type A) 1: 70 bar (only type A) 4: 400 bar (type C - E) |
||||||||||||||||||
| Output | H: 4 … 20 mA / 2-wirewith HART®-communication I: intrinsic safety (ia), 4 … 20 mA / 2-wire, and with HART®-communication G: flameproof equipment (d), 4 … 20 mA / 2-wire, and with HART®-communication (Note 1) FH: group I Ex ia 4 … 20 mA / 2-wire with HART®-communication (mines) (Note 2) 9: customer |
||||||||||||||||||
| Accuracy | 17: 0.075 % |
||||||||||||||||||
| Housing | L: aluminium 2: stainless steel 1.4301 (304) |
||||||||||||||||||
| Display | AN: without display AL: with backlight display |
||||||||||||||||||
| Electrical connection | AK0: terminals / cable gland M20x1.5 999: customer |
||||||||||||||||||
| Process connection H-side / L-side (identical) | N20: 1/4" - 18 NPT / fixing 7/16 UNF N30: 1/4" - 18 NPT / fixing M10 N21: 1/4" - 18 NPT, vertical / fixing 7/16 UNF N31: 1/4" - 18 NPT, vertical / fixing M10 N25: 1/4" - 18 NPT / fixing 7/16 UNF with volume reduced flange 999: customer |
||||||||||||||||||
| Valve H-side / L-side (identical) | 0: without 1: with vent (straight) 2: with vent (top) (Note 3) 3: with vent (bottom) (Note 3)
|
||||||||||||||||||
| Material flange, valves | 12: stainless steel 1.4401 (316) |
||||||||||||||||||
| Diaphragm / filling fluid | 11: stainless steel 1.4435 (316L) / silicone oil H1: Hastelloy® C-276 (2.4819) / silicone oil 99: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM 5: NBR 4: PTEE 9: customer |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Accessories | Z1004181: oval flange adapter 1/2" NPT female optionally with N25 Z1004179: mounting bracket in stainless steel 1.4301 (304) |
||||||||||||||||||
| Notes | 1: only in combination with aluminium housing 2: only in combination with stainless steel housing 3: only in combination with process connection code N20 or N30. HART® is a registered trade mark of HART Communication Foundation; Hastelloy® is a brand name of Haynes International Inc. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
