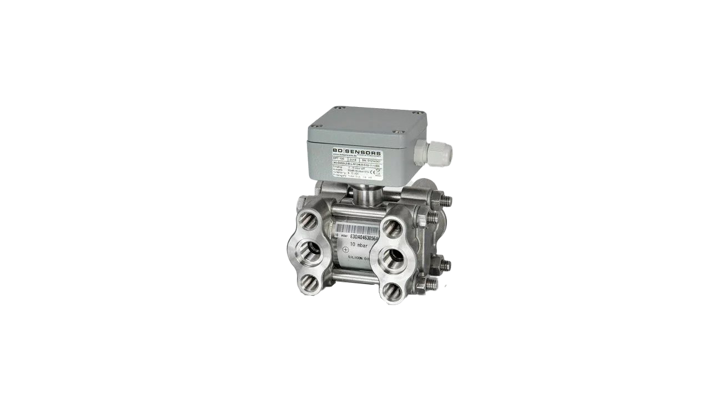

DPT 100

The DPT 100 from BD Sensors is a differential pressure transmitter, which is specifically designed to rapid testing of processes in leakage and flow measurement. This transmitter is, therefore, excellent if you need a fast response time and high sampling rate.

Furthermore, the DPT 100 has a compact designed that makes it possible for you to use the transmitter in many standard applications, as well as the installation in 19“ Rack.

For sales or commercial inquiries please contact us at marine@insatech.com.

Standard DPT 100 Features

The DPT 100 pressure transmitter has the following features that benefits you:

Differential pressure from10 mbar up to 20 bar
Static pressure max. 400 bar
Accuracy: 0,1 % FSO
Output signal 4 ... 20mA / 2-wire
Compact design
Aluminum housing, die casting
Rapid response time.

Typical applications

The DPT 100 from BD Sensors is applicable in various settings:

Maritime industry
Mechanical and plant engineering
Energy industry
Renewable energy
Pharmaceutical industry
Environmental industry.

Get more information here

Additional Available Features

If you have a specific need the DPT 100 pressure transmitter is available with optional features like output signal RS485 with Modbus RTU protocol and a variety of process connections.

Moreover, the availability of the RS485 interface that uses the communication protocol Modbus RTU the data can be transferred in binary form and, thus, this is the preferred communication in many industries because of the open protocol.

Does it match your need - contact us here

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

Model/ Type
Pressure	345: differential pressure
Input	0100: 10 mbar 0600: 60 mbar 1000: 100 mbar 4000: 400 mbar 2501: 2.5 bar 2002: 20 bar S010: -10 … 10 mbar S060: -60 … 60 mbar S100: -100 … 100 mbar S400: -400 … 400 mbar 9999: customer
Output	1: 4 … 20 mA / 2-wire L5: RS485 Modbus RTU 9: customer
Accuracy	p_N ≥ 60 mbar 1: 0.1 % FSO p_N < 60 mbar B: 0.2 % FSO 9: customer
Housing	L: aluminium 9: customer
Electrical connection	AK2: terminals / cable gland M12x1.5 M17: male plug M12x1 (4-pin) / metal 999: customer
Process connection	N20: 1/4" - 18 NPT / fixing 7/16 UNF N21: 1/4" - 18 NPT, vertical / fixing 7/16 UNF N30: 1/4" - 18 NPT / fixing M10 N31: 1/4" - 18 NPT, vertical / fixing M10 999: customer
Valve	0: without 1: with vent (straight) 2: with vent (top) (Note 3) 3: with vent (bottom) (Note 3)
Material pressure port, flange, valves, etc.	12: stainless steel 1.4401 (316 SS) 99: customer
Diaphragm / filling fluid	11: stainless steel 1.4435 (316L) / silicone oil 99: customer
Seal	1: FKM 3: EPDM 5: NBR 4: PTEE 9: customer
Special version	000: standard 999: customer
