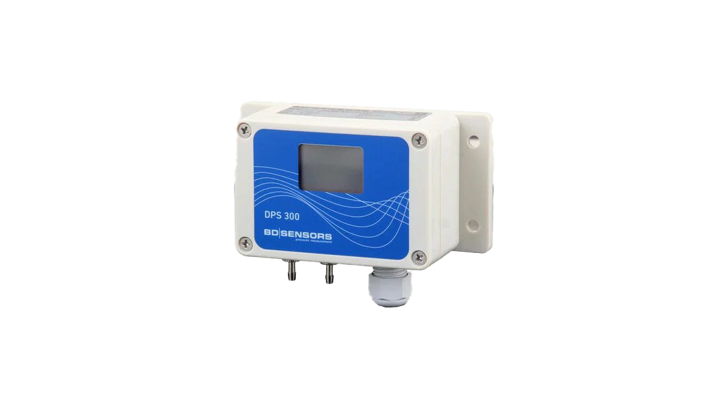

DPS 300
The DPS 300 from BD Sensors is a pressure transmitter that is developed to measure differential pressure for both dry and non-aggressive gases, as well as compressed air. Moreover, the DPS 300 is a multi-range transmitter with up to three adjustable ranges.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DPS 300 pressure transmitter has the following features that benefits you:
The DPS 300 from BD Sensors is applicable in various settings:
Moreover, the differential pressure transmitter can be used in various media -both dry and non-aggressive gases, as well as compressed air.
If you have a specific need the DPS 300 pressure transmitter is available with optional features like:
Thus, the DPS 300 is available with the additional two-line LC display, however, it can also simply be parameterized.
Moreover, the values, the status of the contact, and the units are shown on the display.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 815: differential pressure 816: gauge pressure |
||||||||||||||||||
| Input [mbar] | 016: 1.6 0040: 4.0 0100: 10 0400: 40 2500: 250 1000: 1000 S1K6: -1.6 ... 1.6 S004: -4 ... 4 S010: -10 ... 10 S040: -40 ... 40 S250: -250 ... 250 S102: -1000 ... 1000 9999: customer |
||||||||||||||||||
| Output | 3Z: 3-wire: 0 … 10 V, 0 … 20 mA (Note 1) 1: 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Contact | 0: without B: 2 contacts (Note 2) |
||||||||||||||||||
| Accuracy | pN ≥ 6 mbar pN < 6 mbar |
||||||||||||||||||
| Display | 0: without display C: LC display 9: customer |
||||||||||||||||||
| Front foil | 1: BD Sensors N: neutral 9: customer |
||||||||||||||||||
| Mechanical connection | Y00: Ø 6.6 x 11 (for flex. tubes Ø 6) Y02: Ø4.4 x 10 (for flex. tubes Ø4) 999: customer |
||||||||||||||||||
| Peessure port | M: brass nickel plated 9: customer |
||||||||||||||||||
| Special version | 000: standard 600: automatic zeroing 605: square-root extraction (Note 2) 999: customer |
||||||||||||||||||
| Notes | 1: output switchable on 0 … 5 V / 4 … 20 mA 2: only in combination with display. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
