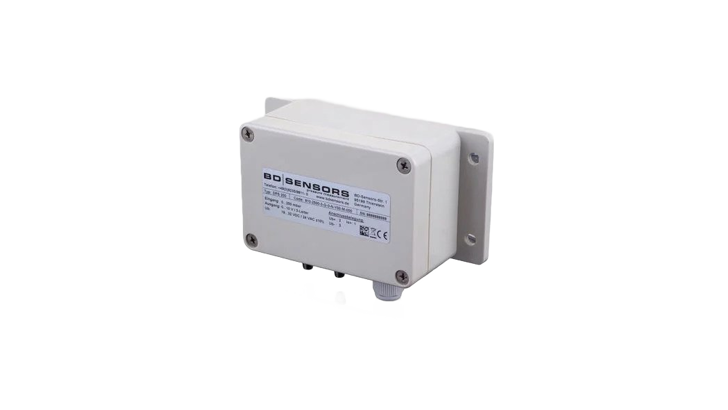

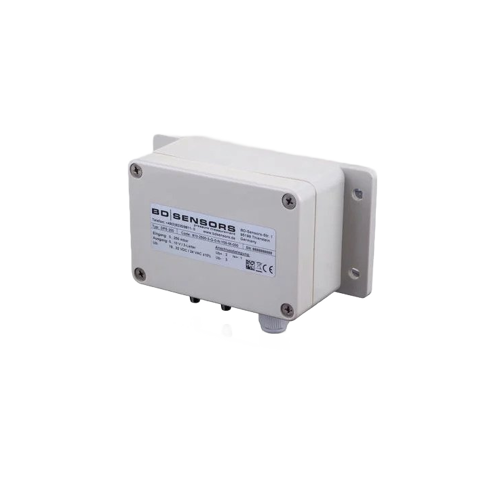

DPS 200
The DPS 200 from BD Sensors is a differential pressure transmitter, which is applicable for gas and compressed air. The transmitter can be used in various settings and for HVAC applications.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DPS 200 pressure transmitter has the following features that benefits you:
The DPS 200 from BD Sensors is applicable in various settings:
Moreover, the differential pressure transmitter can be used in various media including gases and compressed air.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 810: differential pressure 811: gauge pressure |
||||||||||||||||||
| Input [mbar] | 0060: 6 0100: 10 0160: 16 0250: 25 0400: 40 0600: 60 1000: 1000 1600: 160 2500: 250 4000: 400 6000: 600 1001: 100 9999: customer |
||||||||||||||||||
| Output | 3: 0 … 10 V / 3-wire 1: 4 … 20 mA / 2-wire 7: 4 … 20 mA / 3-wire 9: customer |
||||||||||||||||||
| Contact | 0: without B: 2 contacts (Note 2) |
||||||||||||||||||
| Accuracy | G: 1 % FSO BFSL |
||||||||||||||||||
| Display | 0: without display C: LC display 9: customer |
||||||||||||||||||
| Front foil | 1: BD Sensors N: neutral 9: customer |
||||||||||||||||||
| Mechanical connection | Y00: Ø 6.6 x 11 (for flex. tubes Ø 6) Y02: Ø4.4 x 10 (for flex. tubes Ø4) 999: customer |
||||||||||||||||||
| Peessure port | M: brass nickel plated 9: customer |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
