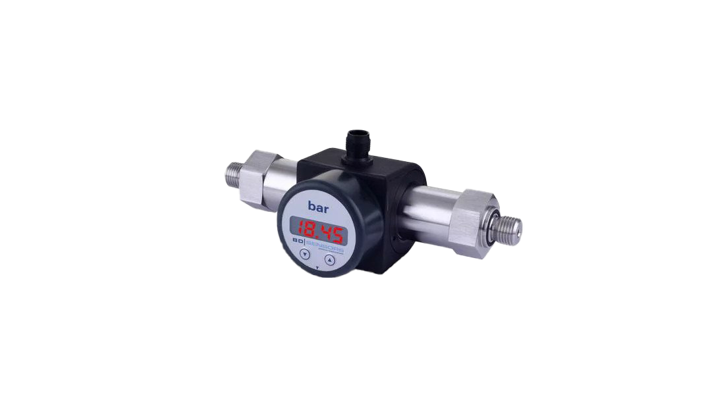

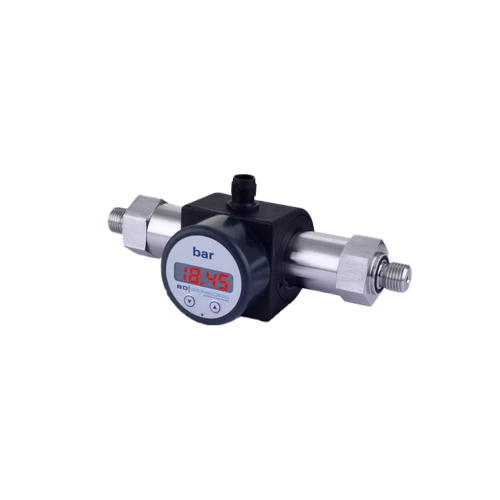

DMD 831
The DMD 831 from BD Sensors is a differential pressure transmitter, which is based on a stainless steel sensor.
Furthermore, the transmitter can be used for various media including:
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMD 831 pressure transmitter has the following features that benefits you:
The DMD 831 from BD Sensors is applicable in various settings:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 732: differential pressure |
||||||||||||||||||
| Nominal pressure range [bar] | D5: 1.0 D6: 2.0 D7: 3.5 D8: 7.0 DA: 30 DB: 35 H1: 70 99: customer |
||||||||||||||||||
| Differential pressure range [bar] | 1001: 1.0 2001: 2.0 3501: 3.5 7001: 7.0 2002: 20 3502: 35 7002: 70 9999: customer |
||||||||||||||||||
| Analogue Output | 7: 4 … 20 mA / 3-wire 9: customer |
||||||||||||||||||
| Contact | 1: 1 contact PNP 2: 2 contacts PNP 9: customer |
||||||||||||||||||
| Accuracy | G: 1% FSO BFSL 9: customer |
||||||||||||||||||
| Electrical connection | N01: M12x1 (5-pin) 999: customer |
||||||||||||||||||
| Mechanical connection | 100: G 1/2" DIN 3852 200: G 1/2" EN 837 300: G 1/4" DIN 3852 400: G 1/4" EN 837 N00: 1/2" NPT N40: 1/4" NPT 999: customer |
||||||||||||||||||
| Seal | 1: FKM 9: customer |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
