DMD331 Bdsensors !024 Square

DMD 331

The DMD 331 from BD Sensors is a differential pressure transmitter, which is based on a piezoresistive stainless steel sensor. This sensor can be pressurized on both sides with fluids or gases compatible with SST 1.4404 and 1.4435.

Furthermore, the compact design of the transmitter makes it possible to integrate the DMD 331 in machines and applications within limited space. Additionally the transmitter calculates the difference between the pressure on the positive and the negative side, which it converts into a proportional electrical signal.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DMD 331 Features

-

The DMD 331 pressure transmitter has the following features that benefits you:

  • Differential pressure 0 ... 20 mbar up to 0 ... 16 bar
  • Accuracy: 0.5 % FSO
  • 2 piezoresistive stainless steel sensors
  • Media separation through stainless steel 1.4435 diaphragm
  • Differential pressure wet / wet
  • Permissible static pressure -one sided- up to 30 times of differential pressure range
  • Compact design.

Moreover, the transmitter is mechanical robust and reliable at dynamic pressure as well as shock and vibration.

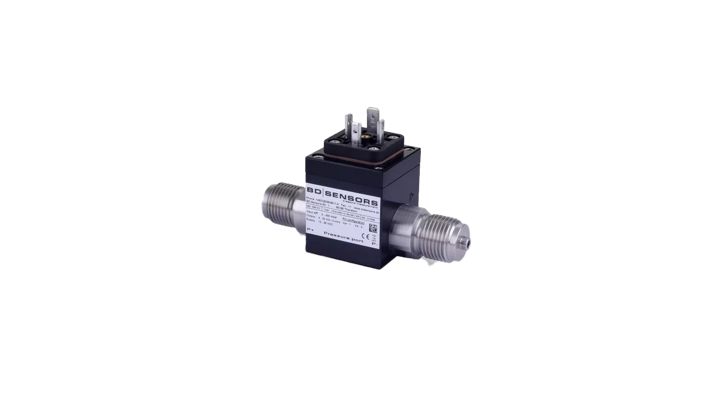

DMD331 Bdsensors !024X16x9

Typical applications

The DMD 331 from BD Sensors is applicable in various settings:

  • Maritime industry
  • Mechanical and plant engineering
  • Energy industry.

Furthermore, the transmitter can be used for various media including water.

Get more information here

Additional Available Features

If you have a specific need the DMD 331 pressure transmitter is available with optional features like:

  • IS-version, Ex ia = intrinsically safe for gases and dust
  • A variety of electrical and mechanical connections
  • Customer specific versions.

Does it match your need - contact us here

BD Sensors Logo Overview
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

730: differential pressure
Nominal pressure range [bar]

F: 0.2

A: 0.4

B: 1.0

C: 2.5

D: 6.0

E: 16

9: customer
Differential pressure range [bar]

0200: 0.02

0400: 0.04

1000: 0.10

2500: 0.25

4000: 0.40

6000: 0.60

1001: 1.0

2501: 2.5

4001: 4.0

6001: 6.0

1002: 10

1602: 16

9999: customer
Output

1: 4 … 20 mA / 2-wire

E: intrinsic safety 4 … 20 mA / 2 wire

3: 0 … 10 V / 3-wire

9: customer
Accuracy

TD ≤ 1:5
5: 0.5 % FSO

TD > 1:5 up to 1:10
8: 1.0 % FSO

9: customer
Electrical connection

100: male and female plug ISO 4400

999: customer
Mechanical connection

300: G1/2" EN 837

U00: 7/16" UNF DIN 3866

J00: G1/4" internal thread

999: customer
Seals

1: FKM

9: customer
Special version

000: standard

999: customer
  • Data Sheet - DMD 331 - BD Sensors
    English | pdf
  • Owners Manual - DMD 331 - BD Sensors
    English | pdf
  • Owners Manual - Mounting instructions - DMD 331 - BD Sensors
    English | pdf
  • Certificate - Conformity Declaration - DMD 331 - BD Sensors
    English | pdf
  • Certificate - IBExU - DMD 331 - BD Sensors
    English | pdf
