VEGASWING 63

Level sensor with fork-shaped swivel element intended for boundary indication in wet media. It could, for example be overfill or dry run protection.

  • Various supply options in Ex areas
  • Ideal for the chemical industry
  • Ketchup or yougurt - no problem

For sales or commercial inquiries please contact us at marine@insatech.com.

contact us now

Viscosity & Materials

VEGASWING 63 is also a reliable instrument in high viscous media. Viscosity up to 10,000 mPa.s and density up to 2.5 g / cm3 are no problem.

The swing fork can be supplied polished, with a surface roughness of 0.8 µm and certified according to A3. The material 1.4435 (316L) is suitable for the food industry.

The swing fork comes in corrosion resistant materials such as:

  • 1.4435 (316L)
  • Hastelloy C4
  • ECTFE coating
  • Glass Enamel

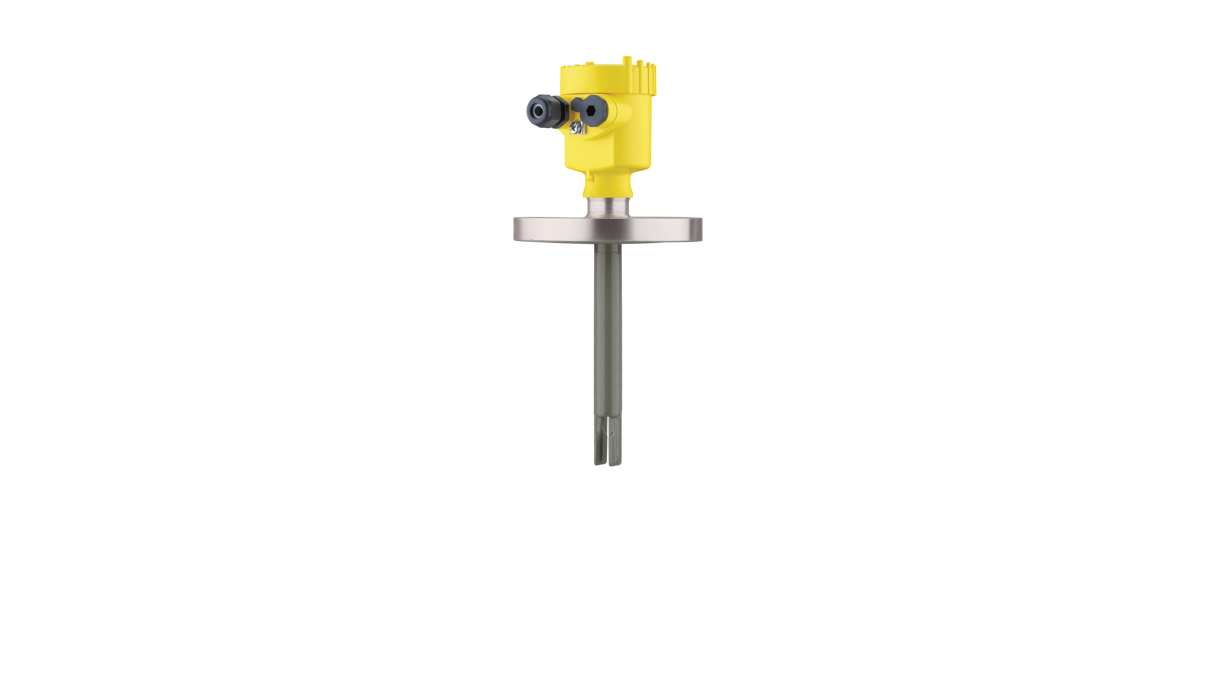

Insatech VEGASWING 63 1

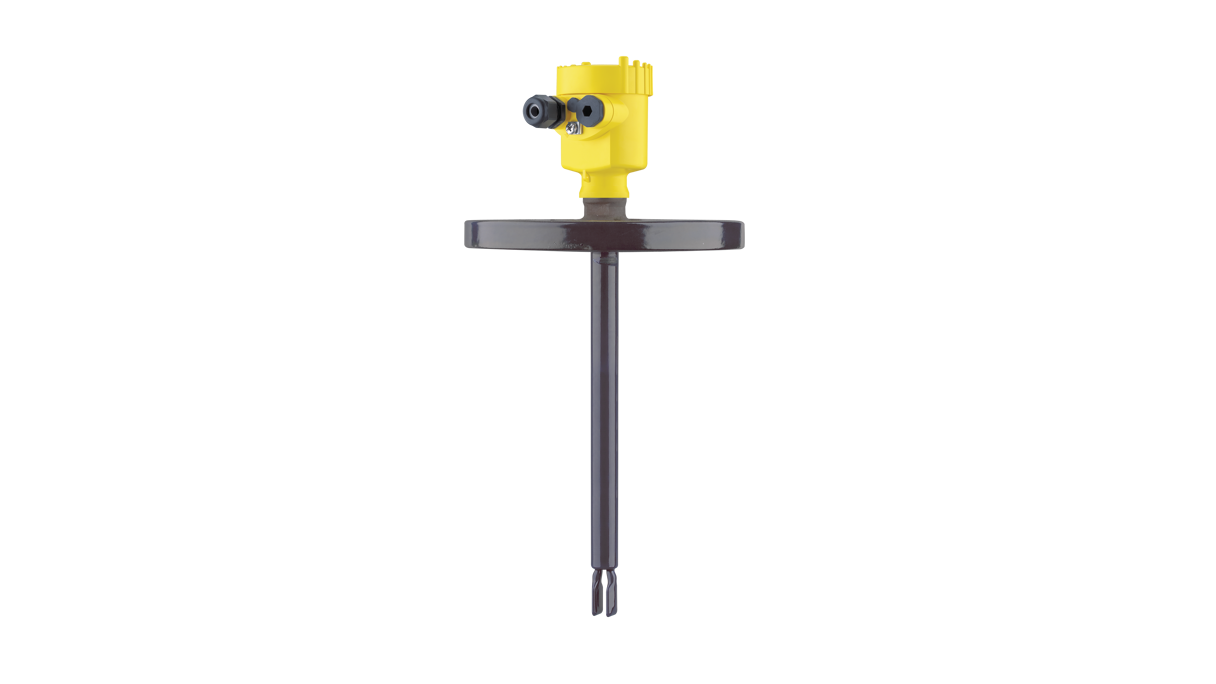

Insatech VEGASWING 63 2
Insatech VEGASWING 63 3

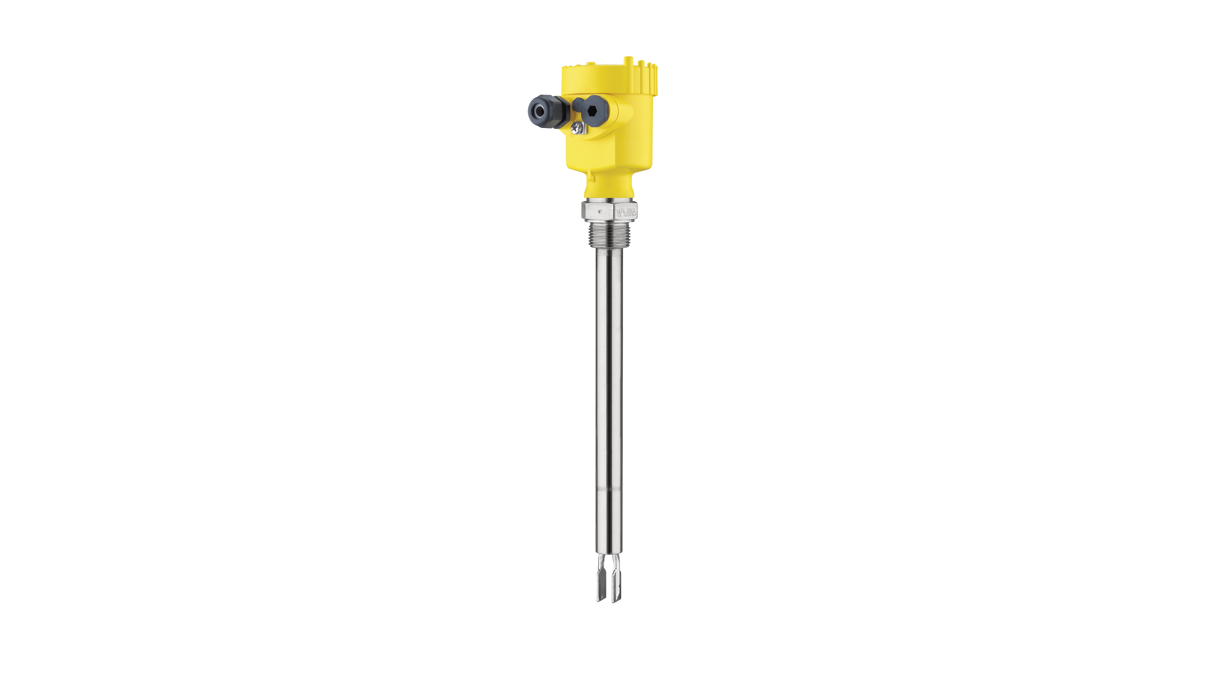

Insatech VEGASWING 63 4

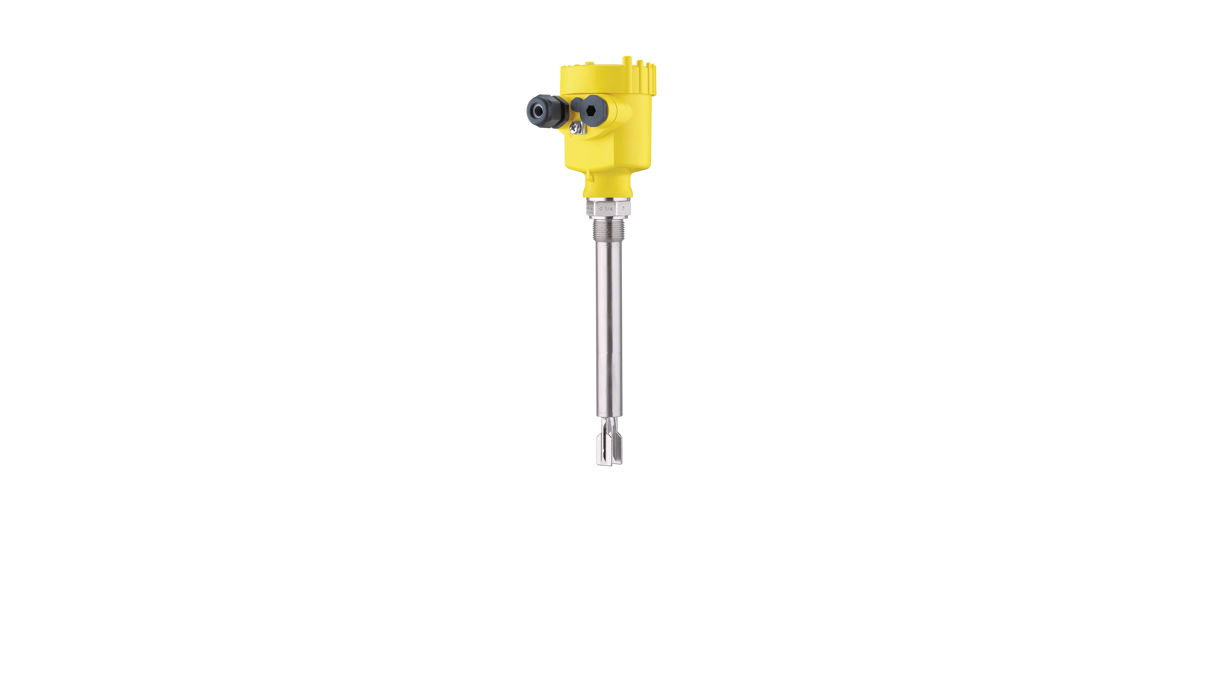

Insatech VEGASWING 63 5
Insatech VEGASWING 63 1
Insatech VEGASWING 63 2
Insatech VEGASWING 63 3
Insatech VEGASWING 63 4
Insatech VEGASWING 63 5

Point Level detections in liquids with:

VEGASWING serie

The tuning fork of VEGASWING is made to bivrate by a piezo drive. If the medium comes into contact with the tuning fork, the vibration frequency is reduces. The electronics responds by triggering a switching signal.
In this video, you can see the VEGASWING serie demonstrated.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Process temperature

-50 ... 250 °C

Process pressure

-1 ... 64 bar

Version
  • Standard
  • Hygienic applications
  • With gas-tight leadthrough
  • With tube extension
  • With temperature adapter
Output
  • Relay (DPDT)
  • Contactless electronic switch
  • Transistor (NPN/PNP)
  • Two-wire
  • NAMUR
Protection rating
  • IP66/IP67
  • IP66/IP68 (1 bar)
  • IP65
Ambient temperature

-40 ... 70 °C

Specifications & Manuals

  • VEGASWING 63 manual - Relay (DPDT)
    English | pdf
  • VEGASWING 63 datasheet - Relay (DPDT)
    English | pdf
  • Brochure - Level and pressure instrumentation for ships - VEGA
    English | pdf
