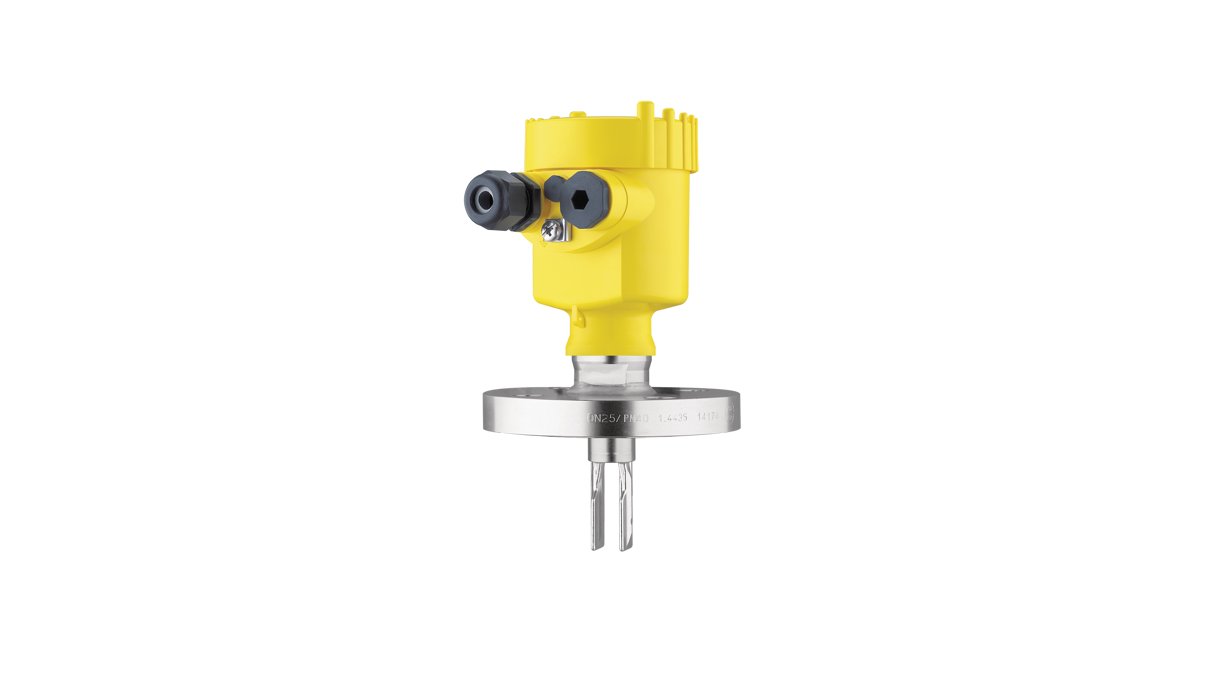

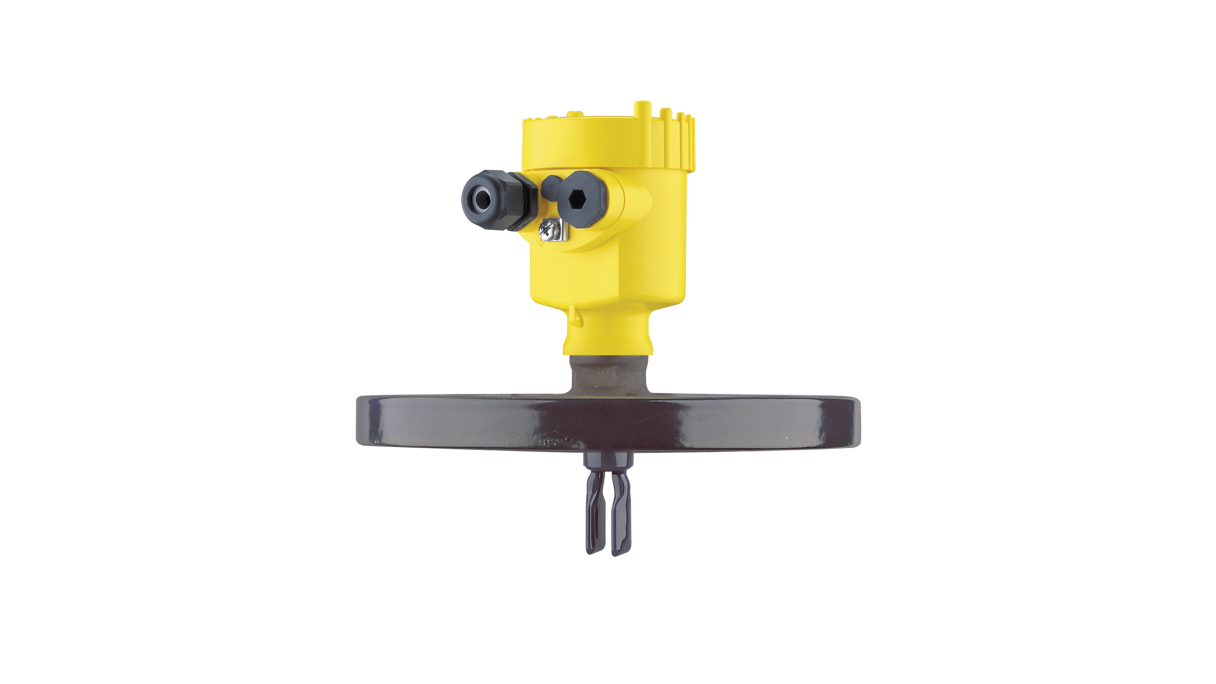

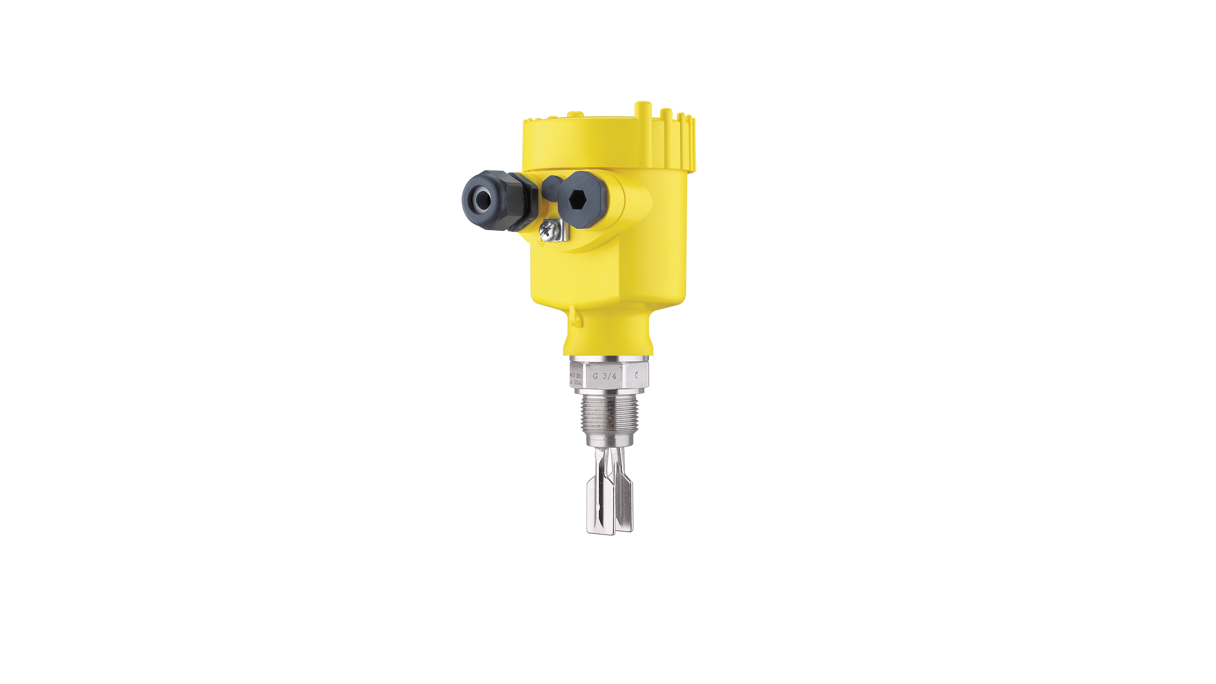

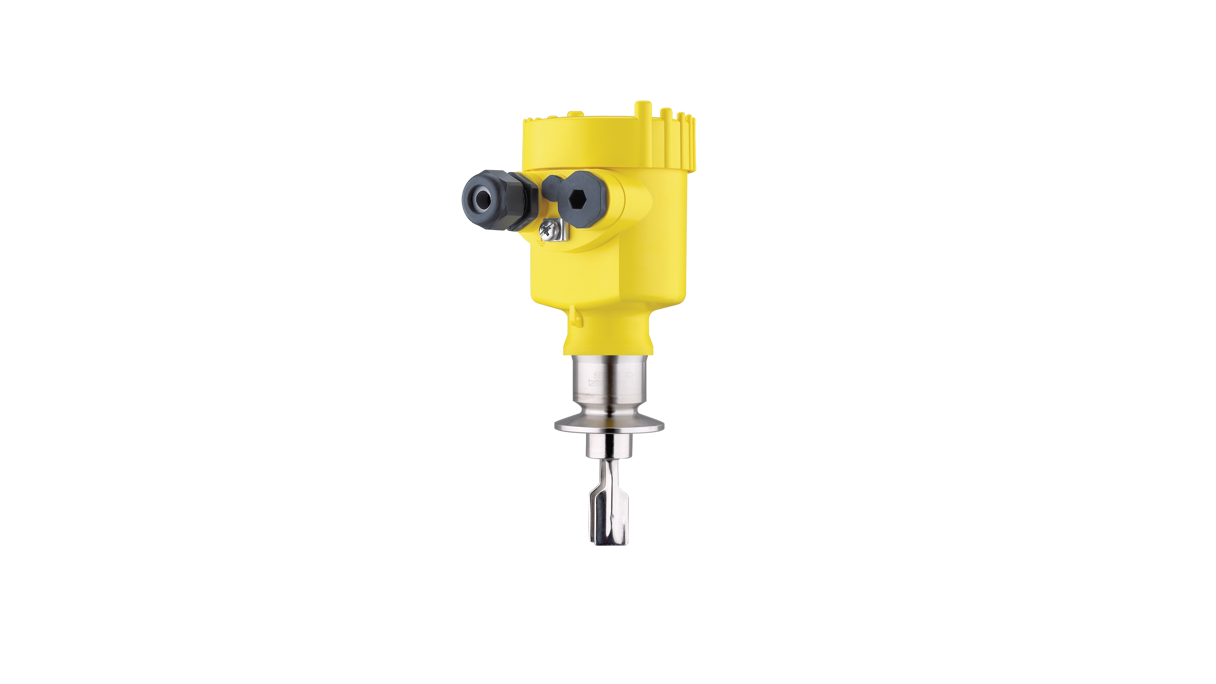

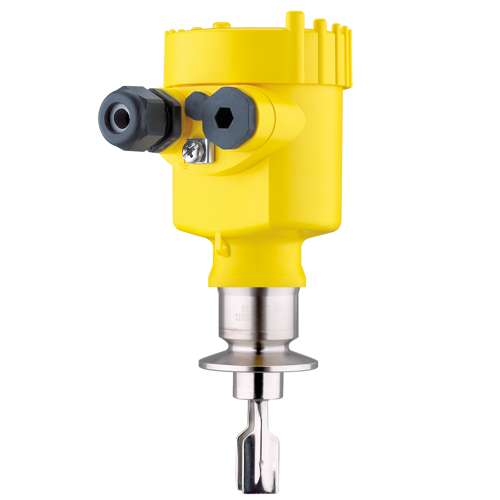

Level sensor with fork-shaped swivel element intended for boundary indication in wet media. It could, for example. be overfill or dry run protection.
Various supply options in Ex areas
Ideal for the chemical industry
Ketchup or yogurt - no problem
VEGASWING 61 is also a reliable instrument in high viscous media. Viscosity up to 10,000 mPa.s and density up to 2.5 g / cm3 are no problem.
The swing fork can be supplied polished, with a surface roughness of 0.8 µm and certified according to A3. The material 1.4435 (316L) is suitable for the food industry.
The swing fork comes in corrosion resistant materials such as:
The tuning fork of VEGASWING is made to bivrate by a piezo drive. If the medium comes into contact with the tuning fork, the vibration frequency is reduces. The electronics responds by triggering a switching signal.
In this video, you can see the VEGASWING serie demonstrated.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Process temperature | -50 ... 250 °C |
||||||||||||||||||
| Process pressure | -1 ... 64 bar |
||||||||||||||||||
| Versions |
|
||||||||||||||||||
| Output |
|
||||||||||||||||||
| Protection rating |
|
||||||||||||||||||
| Ambient temperature | -40 ... 70 °C |
||||||||||||||||||
| Materials, wetted parts |
|
|---|---|
| Seal material | No media contact |
| Housing material |
|
| Threaded connection |
|
|---|---|
| Flange connection |
|
| Hygenic fittings |
|
| Scope |
|
|---|---|
| Explosion protection |
|
| Foodstuffs/Pharma |
|
| Ship approval |
|
| Overfill protection |
|
| SIL qualification | SIL2 |
