VEGASWING 51

VEGASWING 51 is a reliable level guard based on the swing fork principle, where the frequency of the fork is dependent on the medium around it. Typical applications will be overflow, overflow and dry run protection. The compact design enables installation in machines, production processes, containers and pipelines - even where there is a minimum of space.

Possibility of process connection G3 / 4 "A ... G1" A and sanitary connections 1 "... 2"

For sales or commercial inquiries please contact us at marine@insatech.com.

contact us now

Works independently of:

  • Pressure
  • Temperature
  • Viscosity
  • Density

Provides reliable measurement even under difficult conditions such as:

  • Turbulence
  • Foam
  • Bubbles
  • Sticky media

Integrated feature monitoring provides full security and includes:

  • Material coating on the swing fork
  • Breaking fork
  • Power failure or other interference that causes the fork to not vibrate

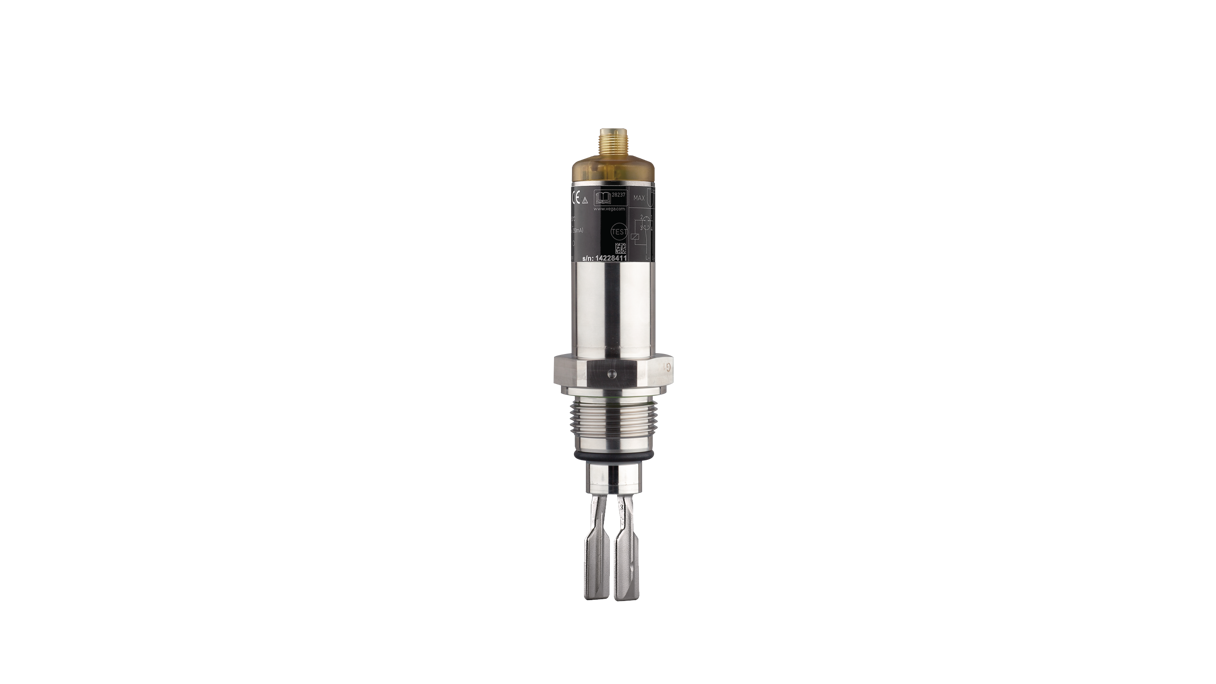

Insatech VEGASWING 51 1

Point Level detections in liquids with:

VEGASWING serie

The tuning fork of VEGASWING is made to bivrate by a piezo drive. If the medium comes into contact with the tuning fork, the vibration frequency is reduces. The electronics responds by triggering a switching signal.
In this video, you can see the VEGASWING serie demonstrated.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Process temperature

-40 ... 150 °C

Process pressure

-1 ... 64 bar

Version
  • Standard
  • Extended temperature range
  • Hygienic applications
Output
  • Contactless electronic switch
  • Transistor (PNP)
  • IO-Link
Protection rating
  • IP67
  • IP65
  • IP68 (0,2 bar)
Ambient temperature

-40 ... 70 °C

Specifications & Manuals

  • Manual - VEGASWING 51 - Transistor (PNP)
    English | pdf
  • Specification sheet - VEGASWING 51 - Transistor (PNP)
    English | pdf
  • Brochure - Level and pressure instrumentation for ships - VEGA
    English | pdf
