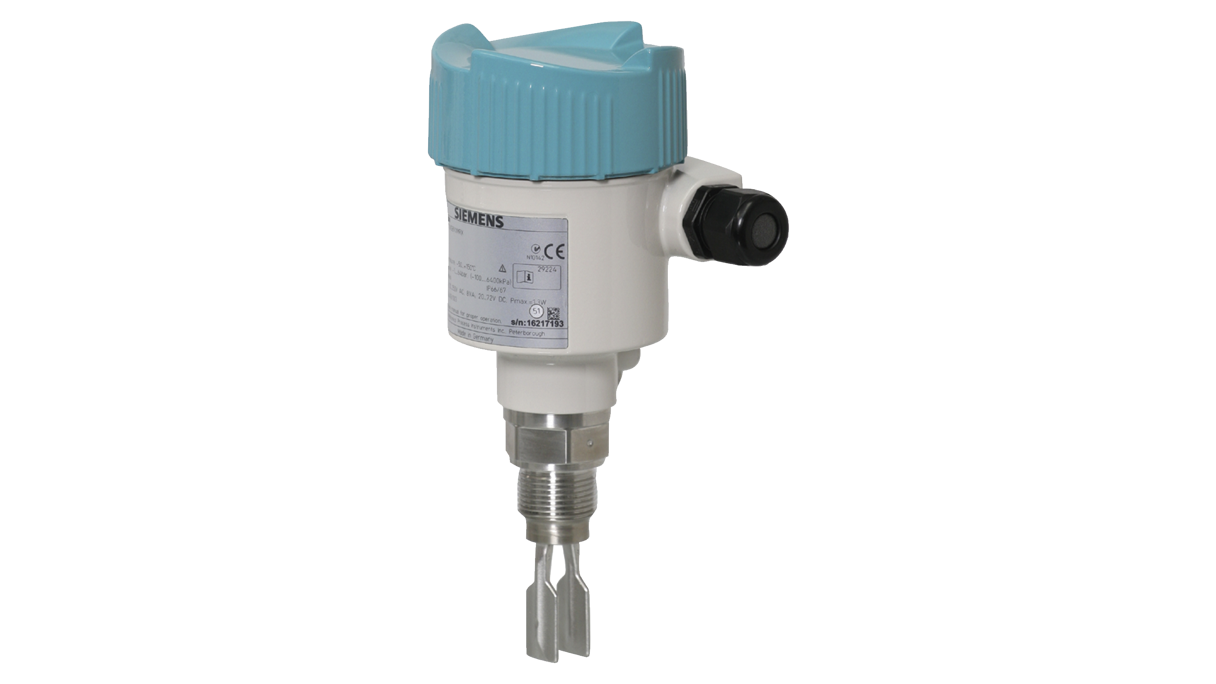

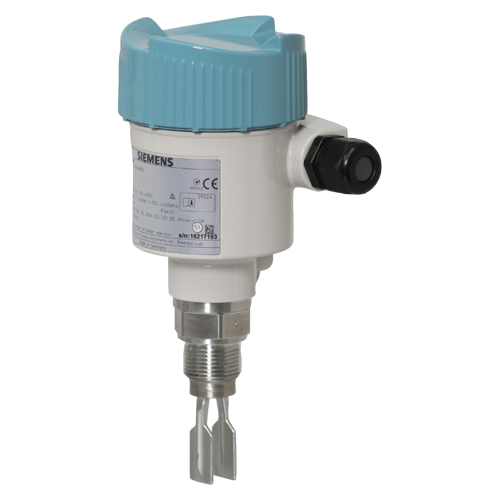

Insatech Siemens SITRANS LVL200 Vibrating Level Switch 7ML5746 7ML5747 1X1

SITRANS LVL200

The SITRANS LVL200 from Siemens is a reliable level switch with a vibrating fork. Typical applications include level measurement, overfill, and dry-run protection. Its compact design makes it suitable for use in small pipes and applications with limited space. Additionally, it can be used under challenging conditions, including turbulence, air bubbles, foam formation, buildup, or external vibration.

The LVL200 gives you several benefits:

  • Compact Design
  • Fault Monitoring
  • Versatile Applications
  • High Reliability.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Unmatched Advantages of the SITRANS LVL200: A Comprehensive Solution for Level Monitoring

The SITRANS LVL200 level switch offers numerous advantages, making it an ideal choice for various industrial applications. Its compact design, with a tuning fork insertion length of only 40 mm (1.57 inches), allows for easy installation in small pipes and confined spaces, ensuring versatility in different setups.

The device reliably measures liquids and slurries, with a minimum density of > 0.5 g/cm³ (0.018 lb/in³), and operates effectively under challenging conditions, such as turbulence, foam formation, and external vibrations. With continuous fault monitoring capabilities, it can detect corrosion, loss of vibration, and piezo drive failures early, enhancing operational safety and reliability.

Furthermore, the optional remote test function ensures ongoing product reliability, offering peace of mind for users.

Insatech Siemens SITRANS LVL200 Vibrating Level Switch 7ML5748 16 9

Key Features of the SITRANS LVL200

The LVL200 series has several benefits, some of which we have listed for you below:

  • Vibrating Fork Technology: Provides accurate level measurement for liquids and slurries
  • Compact Insertion Length: Only 40 mm (1.57 inches) for installation in small pipes and confined spaces
  • Minimum Density Capability: Works effectively with products having a density greater than 0.5 g/cm³
  • Fault Monitoring: Continuously evaluates for corrosion, loss of vibration, or piezo drive failures
  • Functional Safety: Complies with SIL 2 safety standards (IEC 61508 and IEC 61511)
  • Hygienic Process Connections: Designed for applications requiring hygienic standards
  • Remote Test Function: Optional signal conditioner for continuous reliability testing
  • High Temperature and Pressure Options: Suitable for extreme process conditions.

Exactly what you need? Contact us now!

Diverse Applications of the SITRANS LVL200

The SITRANS LVL200 is a versatile level switch designed for industrial applications across various sectors of process technology. Its compact size and reliable performance make it suitable for measuring liquids and slurries, even in confined spaces. With the capability to handle challenging conditions such as turbulence, air bubbles, and foam generation, the LVL200 ensures accurate level detection while continuously monitoring for faults. This reliability is crucial for maintaining operational efficiency and safety in various processes.

Key Applications:

  • Marine Industry
  • Level measurement of liquids and slurries
  • Overfill protection to prevent spills
  • Dry-run protection to safeguard equipment
  • Suitable for use in confined spaces and small pipes
  • Effective in environments with turbulence or foam formation.

Need more information? Contact us here

169 Marineforsidebillede

Robust Applications of the SITRANS LVL200

The SITRANS LVL200 is engineered for a wide range of applications across process technology, particularly in liquid and slurry environments. It is highly effective for level measurement, overfill protection, and dry-run monitoring, catering to various industry needs.

The ability to function in harsh conditions—such as high temperatures and pressures—makes it suitable for diverse applications, from food and beverage to chemical processing. With its proven vibrating fork technology, the LVL200 provides accurate level detection and minimizes the risk of operational failures.

Its adaptable design not only supports straightforward installation but also accommodates the specific requirements of different industries, further underscoring its utility as a reliable solution for level monitoring.

LVL200 Installation Siemens 1024 16X9

Proper Installation Guidelines for the SITRANS LVL200

When installing the SITRANS LVL200, it is crucial to ensure that all components in direct contact with the process—such as the sensor element, process seal, and fitting—are compatible with the existing process conditions, including pressure, temperature, and the chemical properties of the medium.

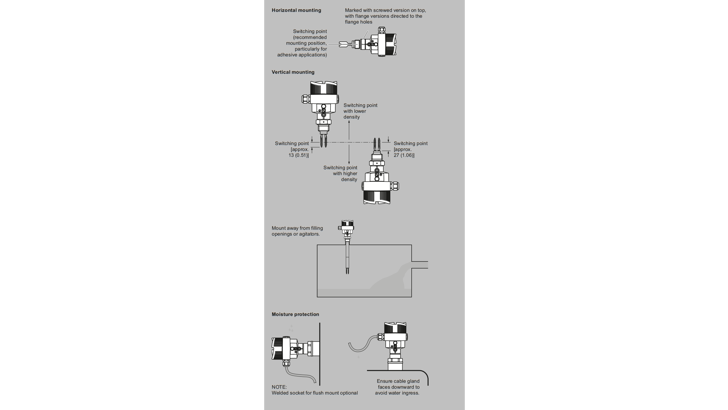

The instrument can be mounted in any position, but the tuning fork must align with the desired switching point. The lateral markings on the tuning fork help determine this point, particularly when installed vertically. It’s essential to adjust the density switch based on the medium's density, especially when working with foams, as they can lead to erroneous switch activations.

To enhance moisture protection, install the connection cable so that it leads downwards at the cable entry.

Contact us now and let's talk price!

Detailed Mounting Instructions for Optimal Performance

The SITRANS LVL200 features a defined thread position, ensuring consistent fork positioning upon installation. Prior to installation, remove the supplied seal from the thread, as it is unnecessary when using a welded socket with an O-ring.

For horizontal installations in adhesive or viscous products, the tuning fork should be oriented vertically to minimize buildup. The positioning of the welded socket is critical; it should be aligned with the flow direction for pipelines, and the notch marking should face upward. It is also vital to install the instrument away from disturbances such as filling openings or agitators to prevent false measurement signals.

Care should be taken with instruments that have enamel coatings, as they are sensitive to shocks and must be handled delicately during installation.

Need our help? Contact us here!

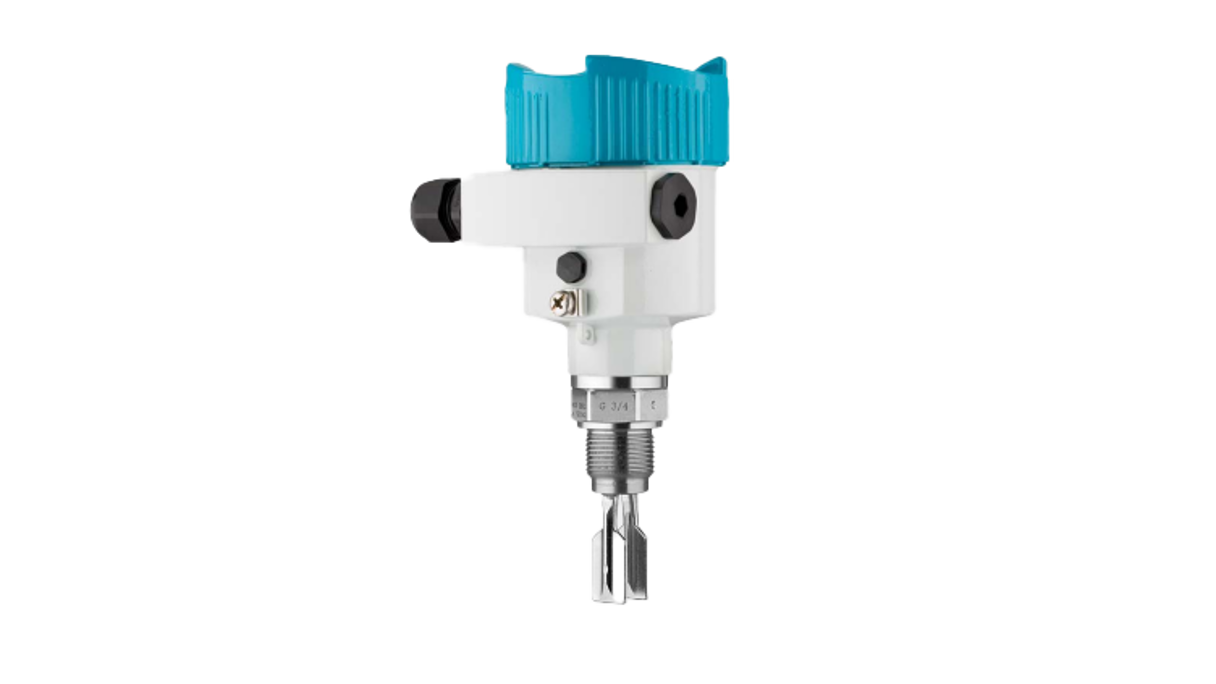

LVL200 Relay Siemens 1024 16X9 1024 16X9
Insatech Siemens SITRANS LVL200 Vibrating Level Switch 7ML5746 7ML5747 16 9
Insatech Siemens SITRANS LVL200 Vibrating Level Switch 7ML5748 16 9

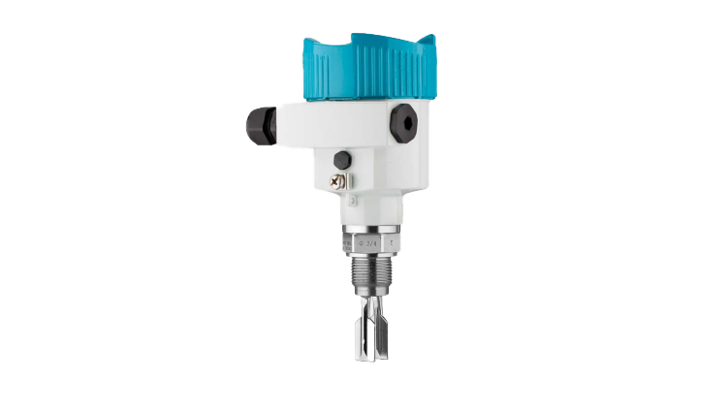

LVL200 Relay Siemens 1024 16X9 1024 16X9

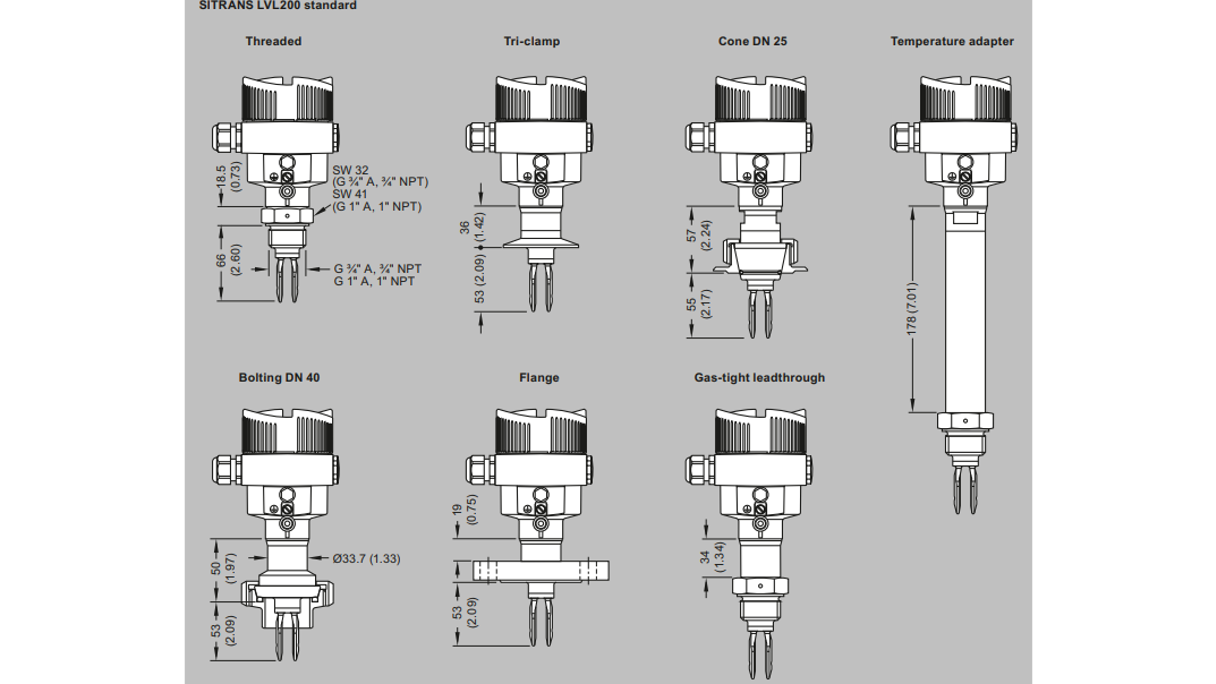

LVL200 Dimensions Standard Siemens 1024 16X9

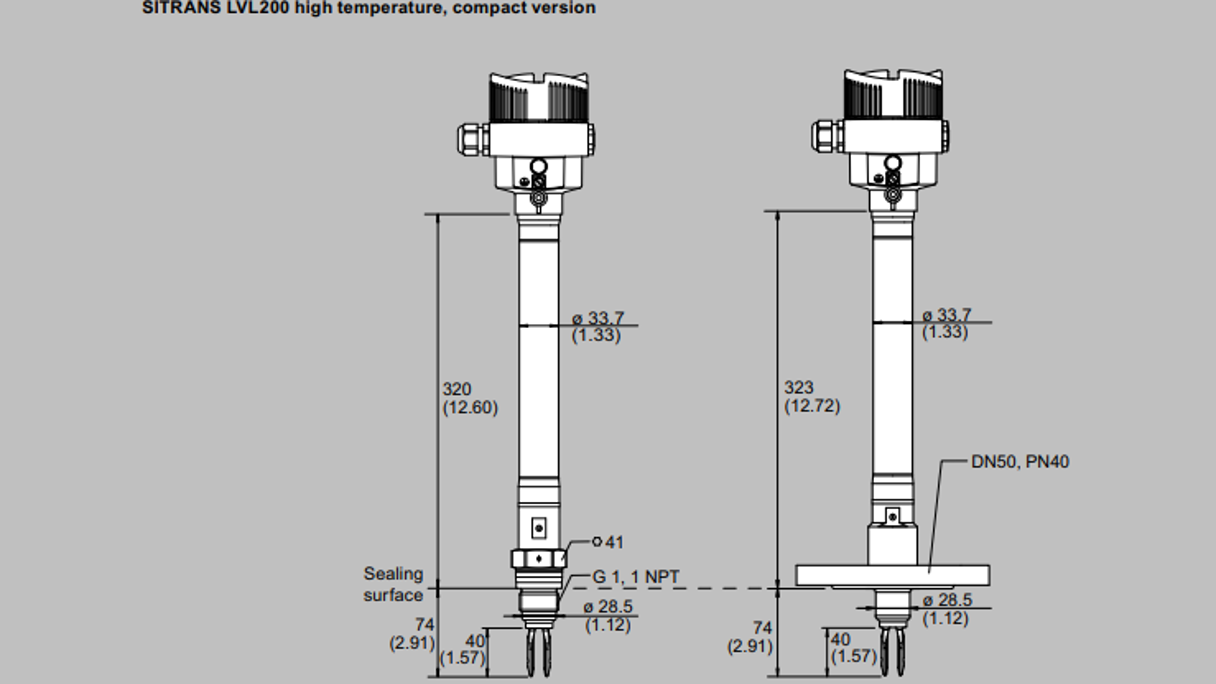

LVL200 Dimensions Compact Siemens 1024 16X9

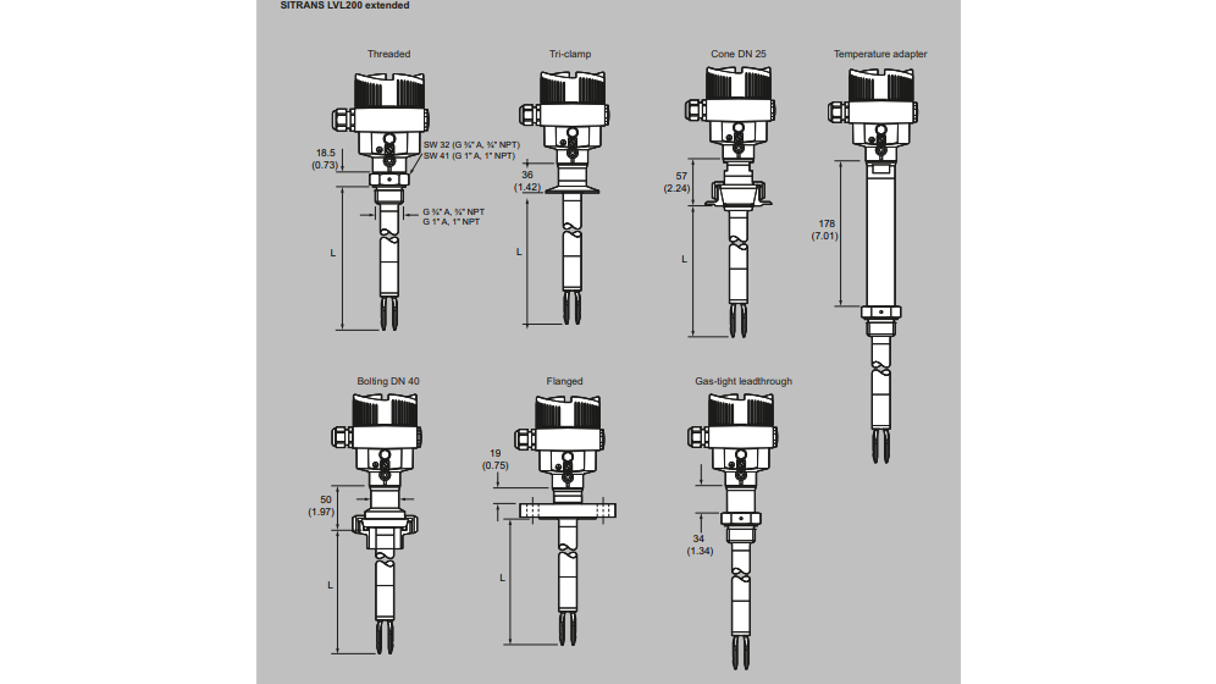

LVL200 Dimensions Extended Siemens 1024 16X9

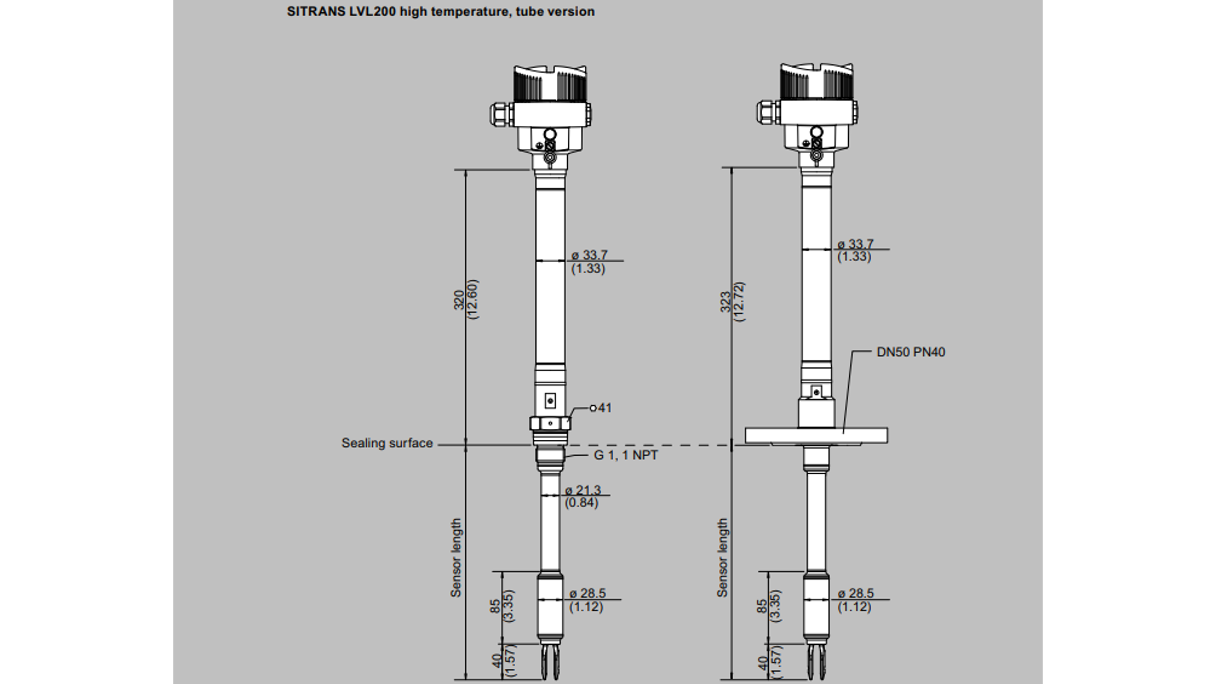

LVL200 Dimensions Tube Siemens 1024 16X9
Insatech Siemens SITRANS LVL200 Vibrating Level Switch 7ML5746 7ML5747 16 9

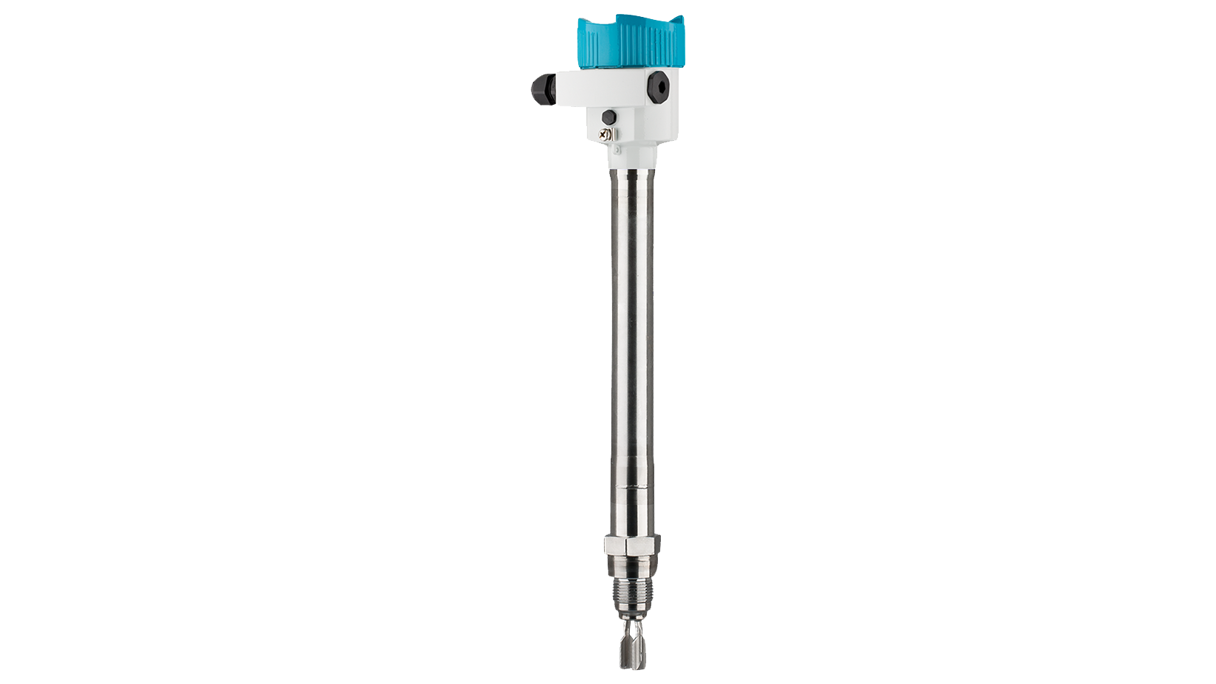

Insatech Siemens SITRANS LVL200 Vibrating Level Switch 7ML5748 16 9
LVL200 Relay Siemens 1024 16X9 1024 16X9
LVL200 Dimensions Standard Siemens 1024 16X9
LVL200 Dimensions Compact Siemens 1024 16X9
LVL200 Dimensions Extended Siemens 1024 16X9
LVL200 Dimensions Tube Siemens 1024 16X9

Choosing the Right SITRANS LVL Model for Your Application

When selecting the right SITRANS LVL model, it’s important to match the features of each device to the specific application requirements. Siemens offers three distinct models, each designed for varying levels of complexity and environmental conditions, providing customers with versatile options for liquid and slurry level detection.

The SITRANS LVL100 is perfect for confined spaces, offering a very compact design with an insertion length starting at just 40 mm. It is ideal for dry-run protection and ensures reliable fault monitoring for corrosion, loss of vibration, and line break in tight spaces. This model is particularly suited for standard liquid and slurry detection where space is limited, such as small pipes and vessels.

The SITRANS LVL200, on the other hand, is built for more demanding conditions, such as detecting liquified gases with densities as low as 0.5 g/cm³. It operates efficiently in environments with large temperature variations (-40°C to 30°C) and includes enhanced safety features like fail-safe operation and SIL2 certification. The LVL200 is also designed to monitor corrosion and mechanical wear, making it ideal for harsh industrial applications with extreme pressures and temperatures.

Each model addresses different needs, allowing customers to select the best solution for their specific liquid or slurry level detection challenges.

Related products

Insatech Siemens SITRANS LVL100 Vibrating Level Switch 7ML5745 16 9

Siemens SITRANS LVL100 Point Level Switch

Universal level switch for liquids. Used at process temperatures between -40...+150 °C and at a process pressure of up to 64 bar.

Insatech Siemens SITRANS LVL200 Vibrating Level Switch 7ML5746 7ML5747 16 9

Siemens SITRANS LVL200 Level Switch

The SITRANS LVL200 is a reliable level switch with a vibrating fork. Typical applications include level measurement, overfill protection, and dry-run protection. Its compact design allows it to be used in small pipes and applications with limited space. Additionally, it can be used under challenging conditions, including turbulence, air bubbles, foam formation, buildup, or external vibration.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Distance

up to 4 m

Process temperature

-196...+450 °C

Process pressure

-1...160 bar

Output
  • Relay (DPDT)
  • NAMUR
  • Transistor (NPN/PNP)
  • 8 / 16 mA
  • Contactless electronic switch
Protection rating
  • Type 4X
  • NEMA 4X
  • IP66
  • IP67
Ambient temperature

-40...+70 °C

Materials, wetted parts
  • 316L
  • Alloy C22
Materials, housing
  • Aluminum die-cast AISi10Mg, powder-coated, basis: Polyester
  • Plastic PBT
  • Stainless steel 316L
Process connections

Thread, flange, and hygienic connections.

See the datasheet for more information.

Approvals
  • Hygienic approvals
  • Marine
  • SIL 2

Specifications & Manuals

  • Manual - Siemens SITRANS LVL200S Operating Instructions Relay DPDT
    English | pdf
  • Manual - Siemens SITRANS LVL200E Operating Instructions Relay DPDT
    English | pdf
  • Technical Specifications - Siemens SITRANS LVL200 Datasheet
    English | pdf
  • Siemens Level Guide
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
