VEGAVIB 63

Intended for Border Indication in Dry Media. It could, for example be overfill or dry run protection. Can also detect solids in water from -50 ... 150 ° C.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

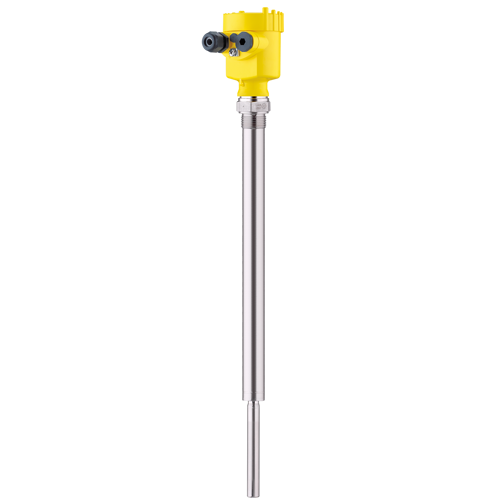

VEGAVIB 63 is a level sensor (switch) with rod-shaped swing element and extension tube. The rods vibrate at their mechanical resonance frequency and contact with a medium will change this frequency. Unlike the fork-shaped sensors, the pivot element here is formed as two concentric tubes. This prevents the medium from wedging between the fork legs.

Save time and money with VEGAVIB

Who wants to fill up their tank just to calibrate the max. level?

By using Vegavib, this costly operation is unnecessary. Only mount the level guard in a suitable place, connect it - and you're done.

Without some cumbersome adjustment of the sensor - as Vegavib is pre-adjusted for 80% of all applications.

  • Easy installation
  • Calibration
  • Easy cleaning
  • Product independent switch point
  • Wear and maintenance free
  • SIL 2 Approved
  • Can be used in Ex areas according to ATEX.
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Process temperature

-50 ... 250 °C

Process pressure

-1 ... 16 bar

Version
  • Detection of solids in water
  • With tube extension
Output
  • Relay (DPDT)
  • Contactless electronic switch
  • Transistor (NPN/PNP)
  • Two-wire
  • NAMUR
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Ambient temperature

-40 ... 80 °C

Specifications & Manuals

  • VEGAVIB 63 manual - Relay (DPDT)
    English | pdf
  • VEGAVIB 63 Specification sheet - Relay (DPDT)
    English | pdf
  • Product information VEGAVIB 61, VEGAVIB 62, VEGAVIB 63 and VEGAWAVE 61, VEGAWAVE 62, VEGAWAVE 63
    English | pdf
